Port Utilization
The Port Utilization window displays the percentage of the total available bandwidth being used on the port.
To view this window, click Monitoring > Port Utilization:

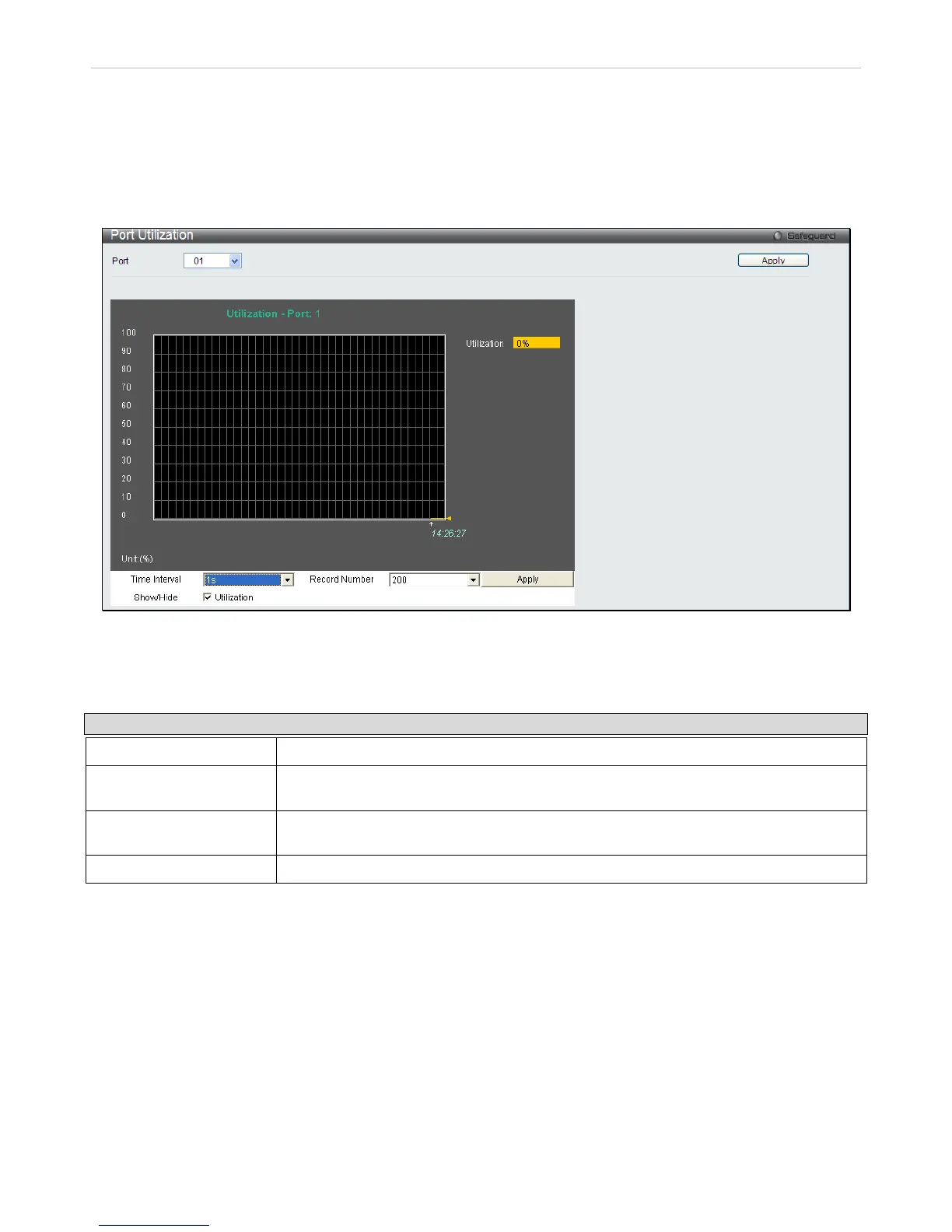

Figure 8 - 4 Port Utilization window
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use
the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
Change the view parameters as follows:
Parameter Description
Port
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value
is 200.
Show/Hide
Check whether or not to display Utilization.
