Access Profile List
Creating an access profile is divided into two basic parts. The first is to specify which part or parts of a frame the
Switch will examine, such as the MAC source address or the IP destination address. The second part is entering the
criteria the Switch will use to determine what to do with the frame. The entire process is described below in two parts.
To display the currently configured Access Profiles on the Switch, click ACL > Access Profile Lists.

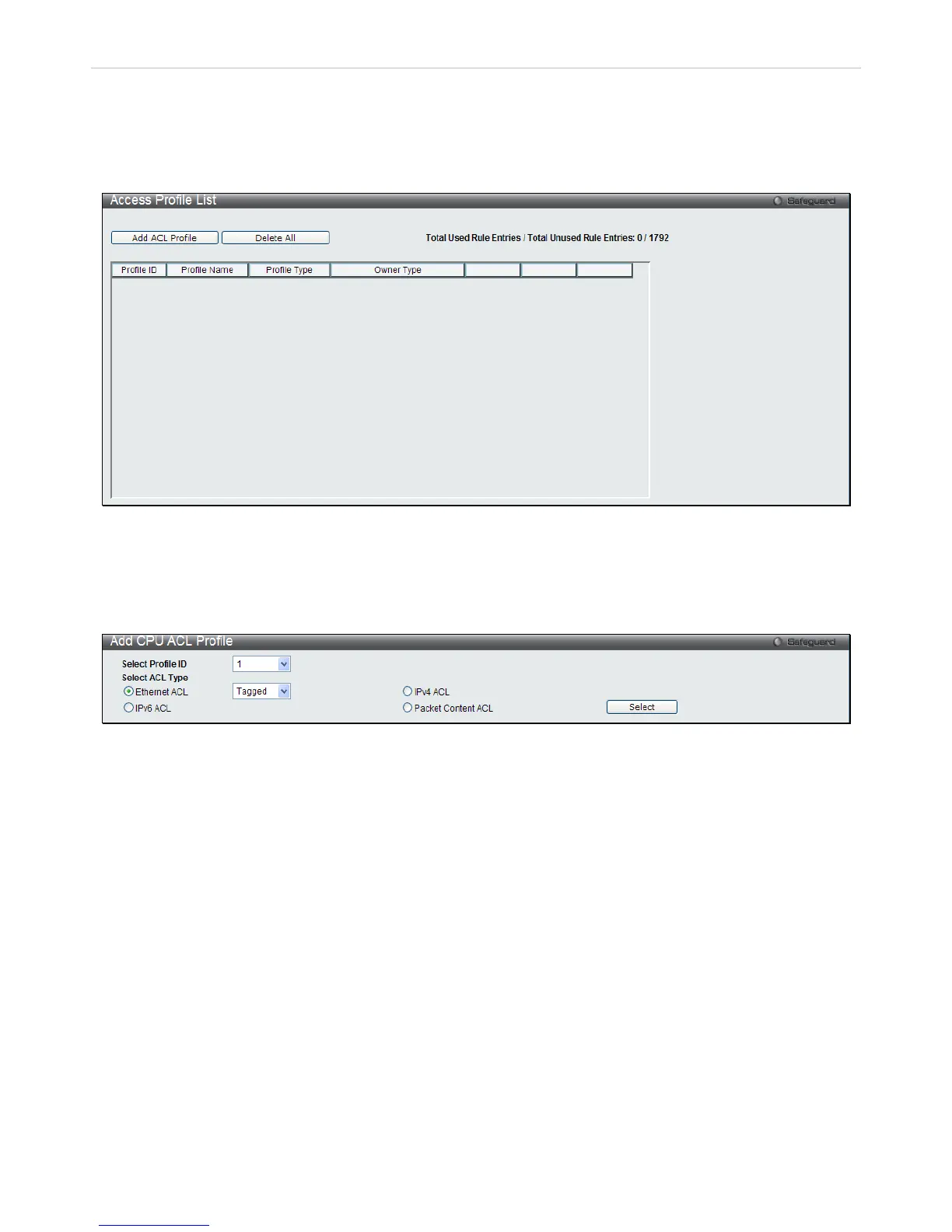

Figure 7 - 2 Access Profile Lists
To add an ACL Profile, click the Add ACL Profile button, which, will display the window below. There are four Access
Profile Configuration pages; one for Ethernet (or MAC address-based) profile configuration, one for IPv4 address-
based profile configuration, one for the Packet Content and one for IPv6. You can explore the four Access Profile
Configuration options by clicking a Profile ID, entering a Profile Name, and using the radio button to select an ACL
Type and click Select. The page shown below is the Ethernet Access Profile Configuration page.
Figure 7 - 3 Add Access Profile (Ethernet)
If creating an Ethernet ACL enter the Profile ID and Profile Name and click Select the following window will appear.
