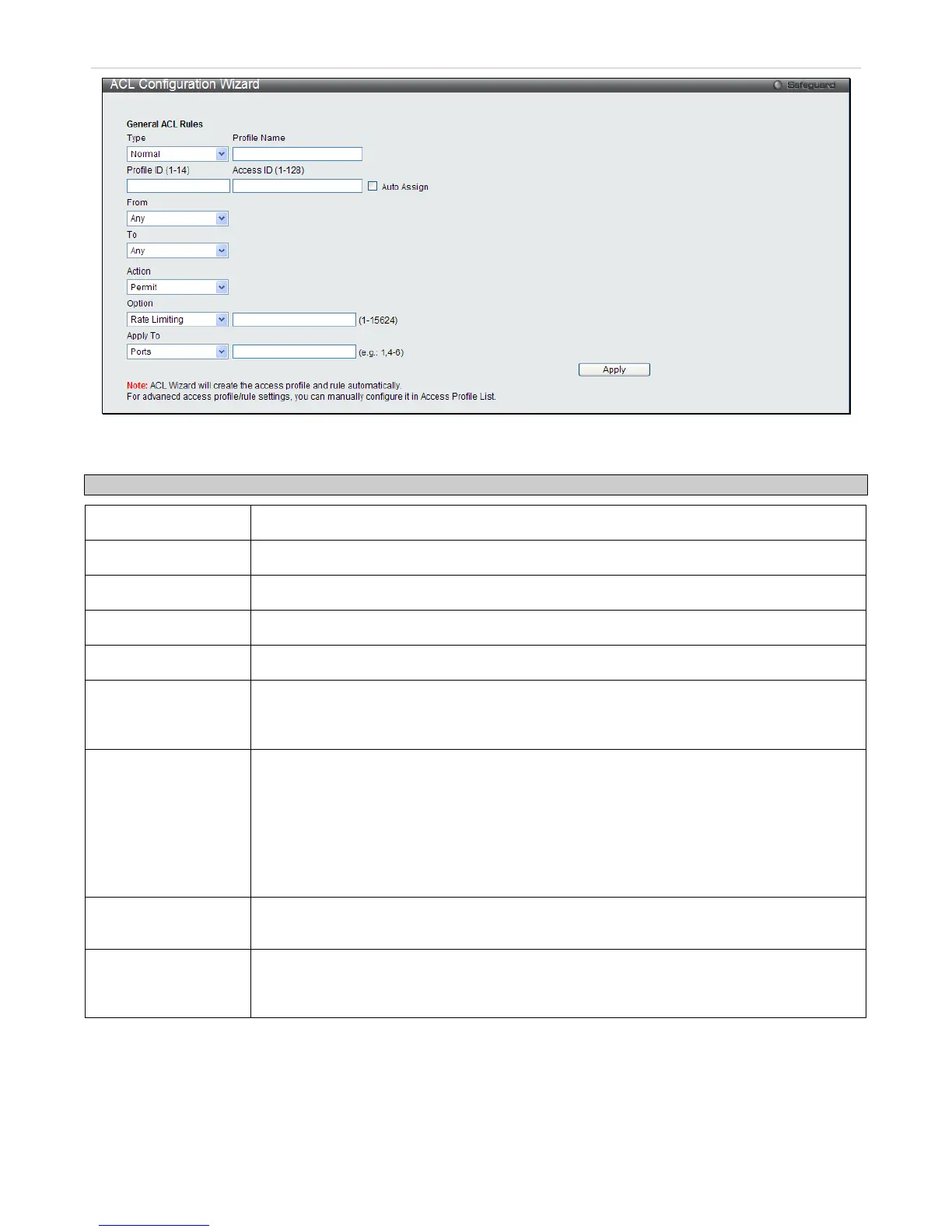

Figure 7 - 1 ACL Configuration Wizard
The following parameters can be configured.
Parameter Description
Type
Select the type of ACL you wish to create, either normal or CPU.
Profile Name
Select a unique Profile Name for this profile set.
Profile ID (1-14)
Enter a unique identifier number for this profile set. This value can be set from 1 to 14.
Access ID (1-128) Type in a unique identifier number for this access. This value can be set from 1 to 128.
From
Use the drop-down menu to select from MAC Address, IPv4 Address or IPv6.
To
Use the drop-down menu to select from MAC Address, IPv4 Address or IPv6. When IPv6 is
selected the user can only enter the IPv6 source address or the IPv6 destination address at
any one time.
Action
Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify the packets that match the access profile are not forwarded by the
Switch and will be filtered.
Select Mirror to specify that packets that match the access profile are mirrored to a port
defined in the config mirror port command. Port Mirroring must be enabled and a target port
must be set.
Option Use the pull down menu to select an option, the user can choose between Rate Limiting,
Change 1P Priority, Replace DSCP and Replace ToS Precedence.
Apply To Use the pull down menu to select Ports, VLAN Name, or VLAN ID. Enter a range of ports to
be configured, or the VLAN name/ID of a previously configured VLAN to which successfully
authenticated web user will be mapped.
Click Apply to implement changes made.
