DSCP Map Settings
The DSCP-to- priority mapping is used to determine the priority of the packet (which will then be used to determine the
scheduling queue) when the port is in DSCP trust state.
The DSCP-to-DSCP mapping is used to change the DSCP in the packet when the packet is ingressed to the port.
Then, the packet will be processed base on the new DSCP. By default, the DSCP is mapped to the same DSCP.
The DSCP-to-color mapping is used to determine the initial color of the packet when the policing function of the packet
is color-aware and the packet is DSCP-trusted.
This window is used to enable DSCP Map Settings. When selecting various DSCP mapping type from the DSCP Map
drop-down list, different fields and table displays.
To view this window click QoS > SRED > DSCP Map Settings

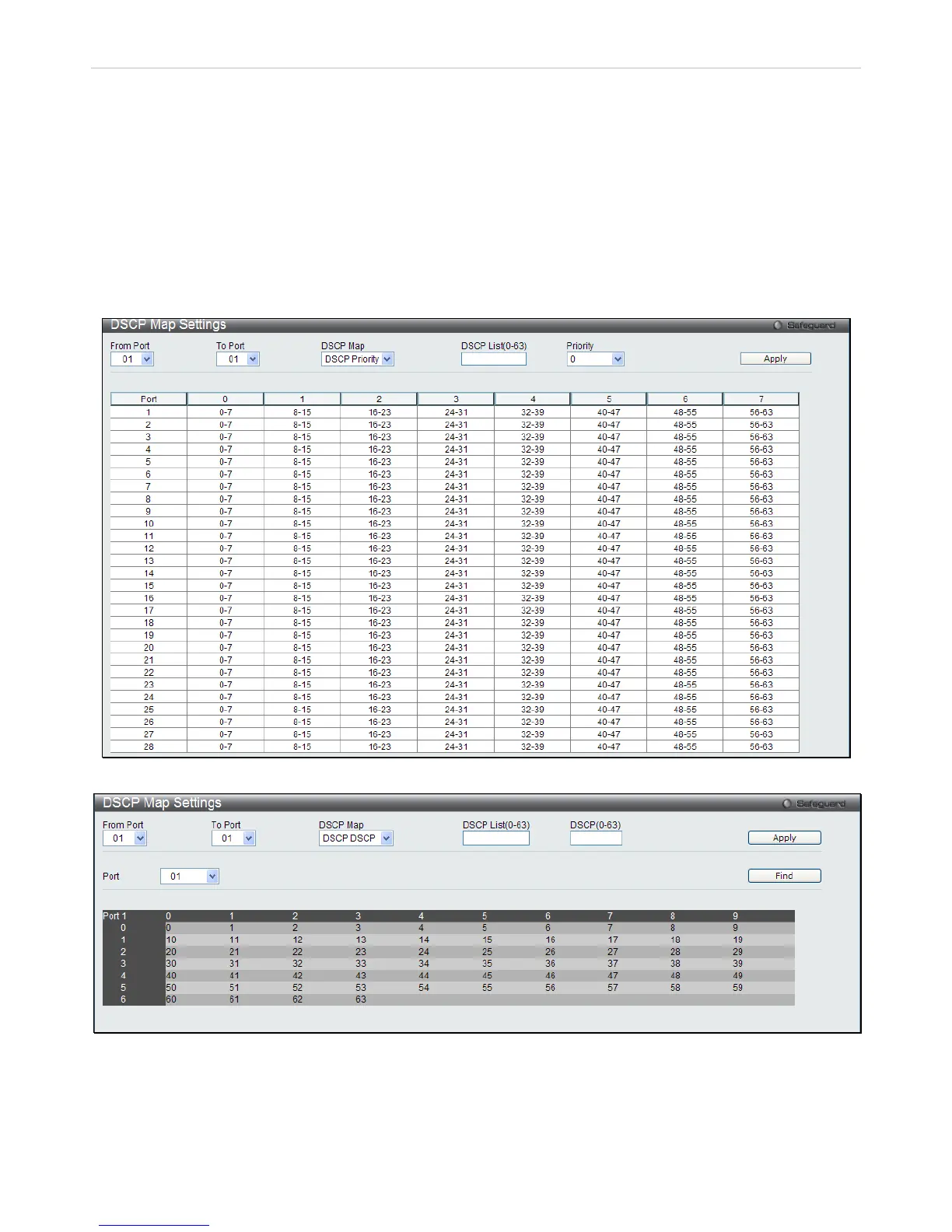

Figure 5 - 13 DSCP Map Settings window – DSCP to Priority
Figure 5 - 14 DSCP Map Settings window – DSCP to DSCP
