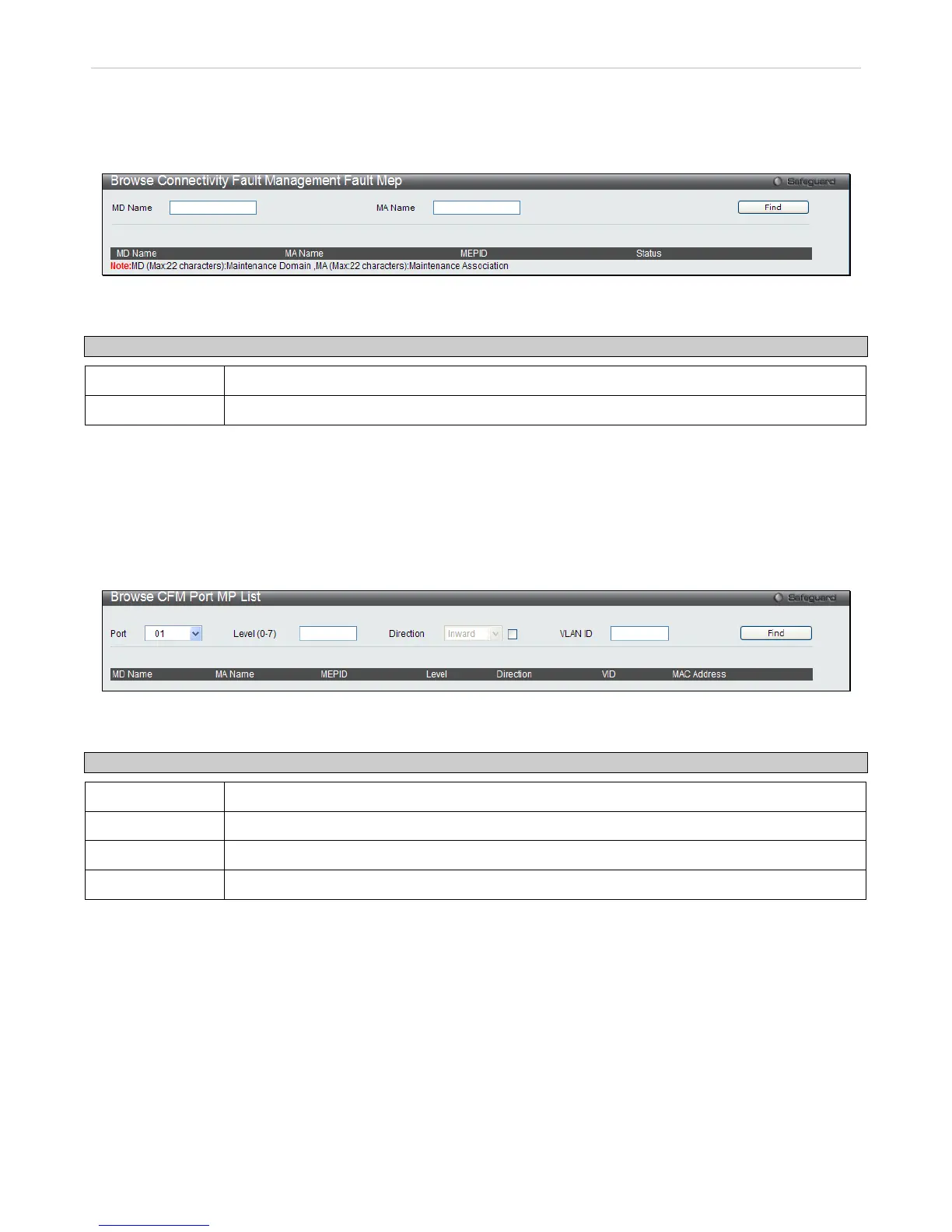

Browse CFM Fault Mep
This window is used to display the CFM Fault Mep on the Switch.
To view this window, click L2 Features > CFM > Browse CFM Fault Mep as shown below:
Figure 3 - 91 Broose CFM Fault Mep window
The following parameters can be configured:
Parameter Description
MD Name
The Maintenance Domain Name.
MA Name
The Maintenance Association Name.
Click Find to implement changes made.
Browse CFM Port MP List
This window is used to display the CFM Port MP List on the Switch.
To view this window, click L2 Features > CFM > Browse CFM Port MP List as shown below:
Figure 3 - 92 Broose CFM Port MP List window
The following parameters can be configured:
Parameter Description
Port
Use the drop-down menu to specify the port number.
Level (0-7)
Specifies the MD Level. If not specified, all levels are shown.
Direction Tick the check box and select Inward or Outward facing MEP.
VLAN ID
The VLAN ID of the VLAN.
Click Find to implement changes made.
Ethernet OAM
Ethernet OAM (Operations, Administration, and Maintenance), specified in IEEE 802.3ah-2004 clause 57, is a data
link layer protocol which provides network operators the ability to monitor the health of the network and quickly
determine the location of failing links or fault conditions on point-to-point and emulated point-to-point Ethernet link.
OAMPDUs (OAM Protocol Data Units) contain the control and status information used to monitor, and also test and
troubleshoot OAM-enabled links. OAMPDUs traverse a single link being passed between peer OAM entities, and as a
result, are not forwarded by switches. OAM is a slow protocol, i.e. OAMPDU frame transmission rate is limited to a
maximum of 10 frames per second.
