LLDP Statistics System
LLDP Statistics System allows you an overview of neighbor detection activity, LLDP Stastics and the settings for
individual ports on the Switch. Use the drop-down menu to check a specific port and click Find the information will be
displayed in the lower half of the table.
To view this window, click L2 Features > LLDP > LLDP Statistics System:

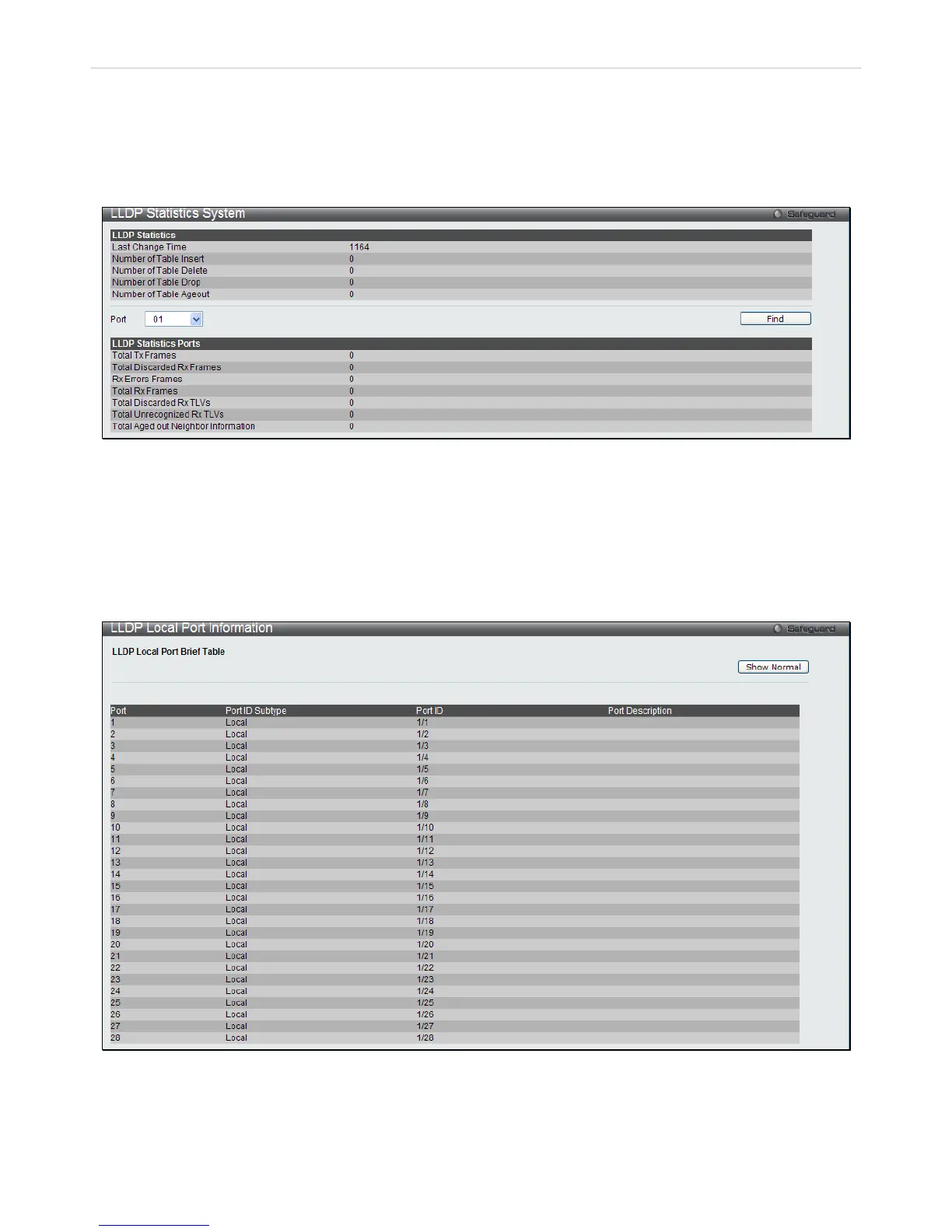

Figure 3 - 76 LLDP Statistics System window
LLDP Local Port Information
LLDP Local Port Information window displays the information on a per port basis currently available for populating
outbound LLDP advertisements in the local port brief table shown below.
To view this window, click L2 Features > LLDP > LLDP Local Port Information:
Figure 3 - 77 LLDP Local Port Information window
To view the information on a per port basis click the Show Normal button, which will display the following window:
