Figure 8 - 2 Cable Diagnostics window – Various Status
Enter the port number you wish to test and click Test, the results will be display on the lower half of the table.
CPU Utilization
The CPU U tilization window displays the percentage of the CPU being used, expressed as an integer percentage
and calculated as a simple average by time interval.
To view this window, click Monitoring > CPU Utilization:

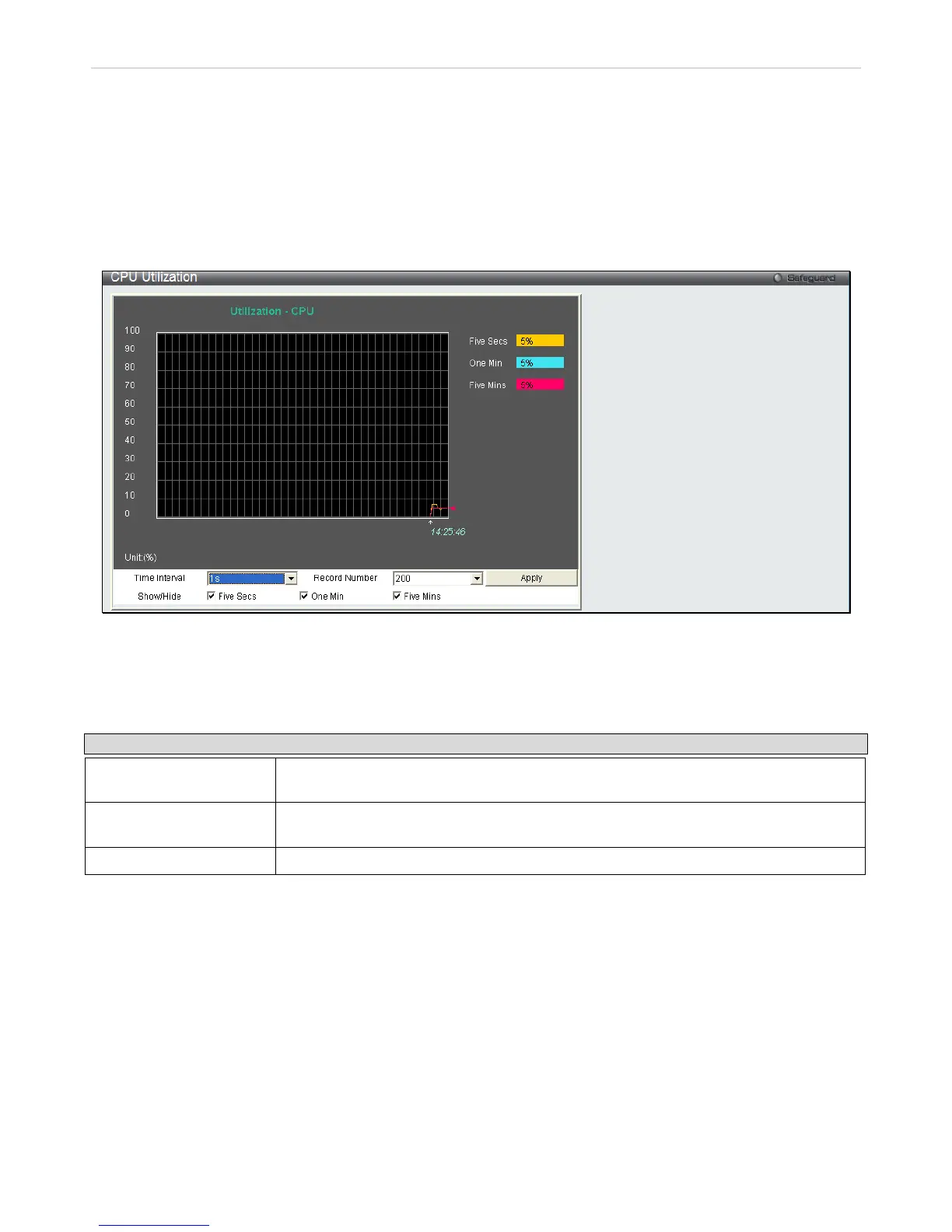

Figure 8 - 3 CPU Utilization window
To view the CPU utilization by port, use the real-time graphic of the Switch and/or switch stack at the top of the web
page by simply clicking on a port. Click Apply to implement the configured settings. The window will automatically
refresh with new updated statistics.
Change the view parameters as follows:
Parameter Description
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value
is 200.
Show/Hide
Check whether or not to display Five Secs, One Min, and Five Mins.
