The window above contains the following information:
Parameter Description
Configuration Name
A previously configured name set on the Switch to uniquely identify the MSTI (Multiple
Spanning Tree Instance). If a configuration name is not set, this field will show the MAC
address to the device running MSTP. This field can be set in the STP B ridge G lobal Se t-
tings window.
Revision Level
(0-65535)
This value, along with the Configuration Name will identify the MSTP region configured on
the Switch. The user may choose a value between 0 and 65535 with a default setting of 0.
MSTI ID
This field shows the MSTI IDs currently set on the Switch. This field will always have the
CIST MSTI, which may be configured but not deleted. Clicking the hyperlinked name will
open a new window for configuring parameters associated with that particular MSTI.
Type
This field allows the user to choose a desired method for altering the MSTI settings. The
user has two choices.
Add VID - Select this parameter to add VIDs to the MSTI ID, in conjunction with the VID List
parameter.
Remove VID - Select this parameter to remove VIDs from the MSTI ID, in conjunction with
the VID List parameter.
VID List
This field displays the VLAN IDs associated with the specific MSTI.
Click Apply for changes to take affect:
STP Instance Settings
The following window displays MSTIs currently set on the Switch.
To view the following table, click L2 Features > Spanning Tree > STP Instance Settings

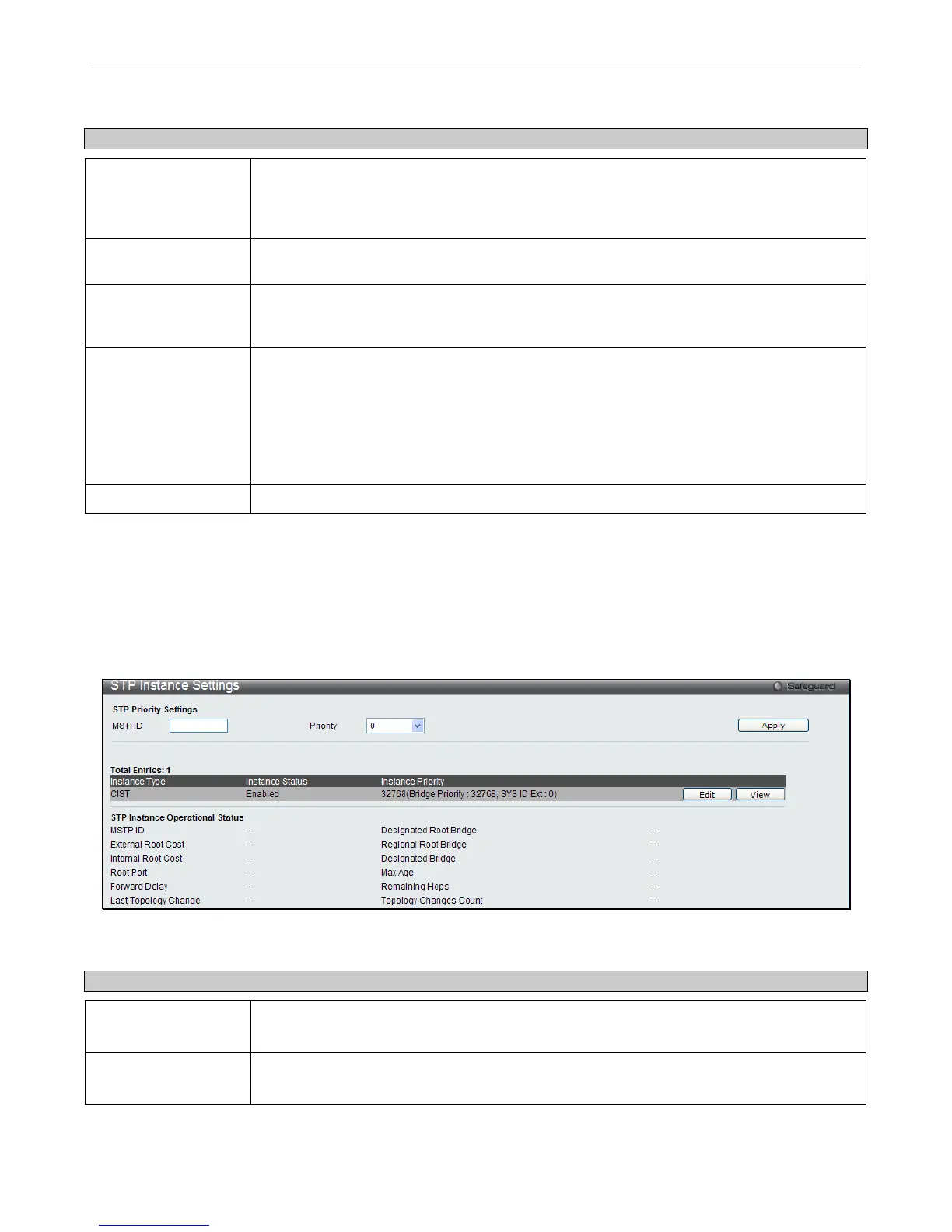

Figure 3 - 65 STP Instance Settings window
The following information can be set:
Parameter Description
MSTI ID Displays the MSTI ID of the instance being modified. An entry of 0 in this field denotes the
CIST (default MSTI).
Priority Enter the new priority in the Priority field. The user may set a priority value between 0 and
61440.
To modify an entry click the Edit button, to see the STP Instance Operational Status of a previously configured setting
click View the following window will be displayed.
