• 48-63 – Enter a value in hex form to mask the packet from byte 48 to byte 63.
• 64-79 – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Click Apply to set this entry in the Switch’s memory.
To view the settings of a previously correctly created profile, click the corresponding Show Details button on the CPU
Access Profile List window to view the following window:

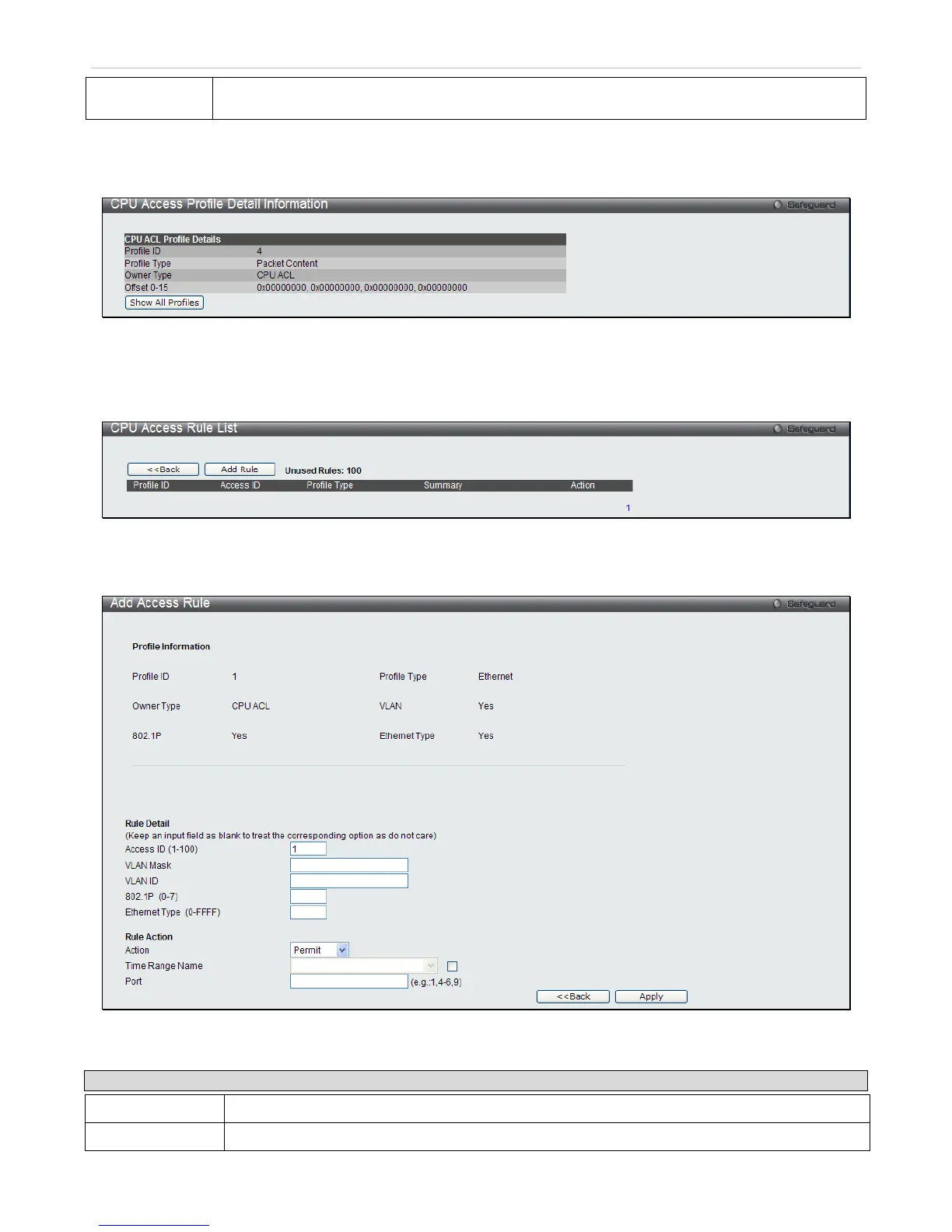

Figure 7 - 36 CPU Access Profile Detail Information window for Packet Content
To establish the rule for a previously created CPU Access Profile:
To configure the Access Rules for Ethernet, open the CPU Access Profile List window and click Add/View Rules for
an Ethernet entry. This will open the following window.
Figure 7 - 37 CPU Access Rule List window for Ethernet
To remove a previously created rule, click the corresponding Delete R ules button. To add a new Access Rule, click
the Add Rule button:
Figure 7 - 38 Add Access Rule window for Ethernet
To set the Access Rule for Ethernet, adjust the following parameters and click Apply.
Parameter Description
Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to 100.
VLAN Mask
Allows the entry of a VLAN Mask for a previously configured VLAN.
