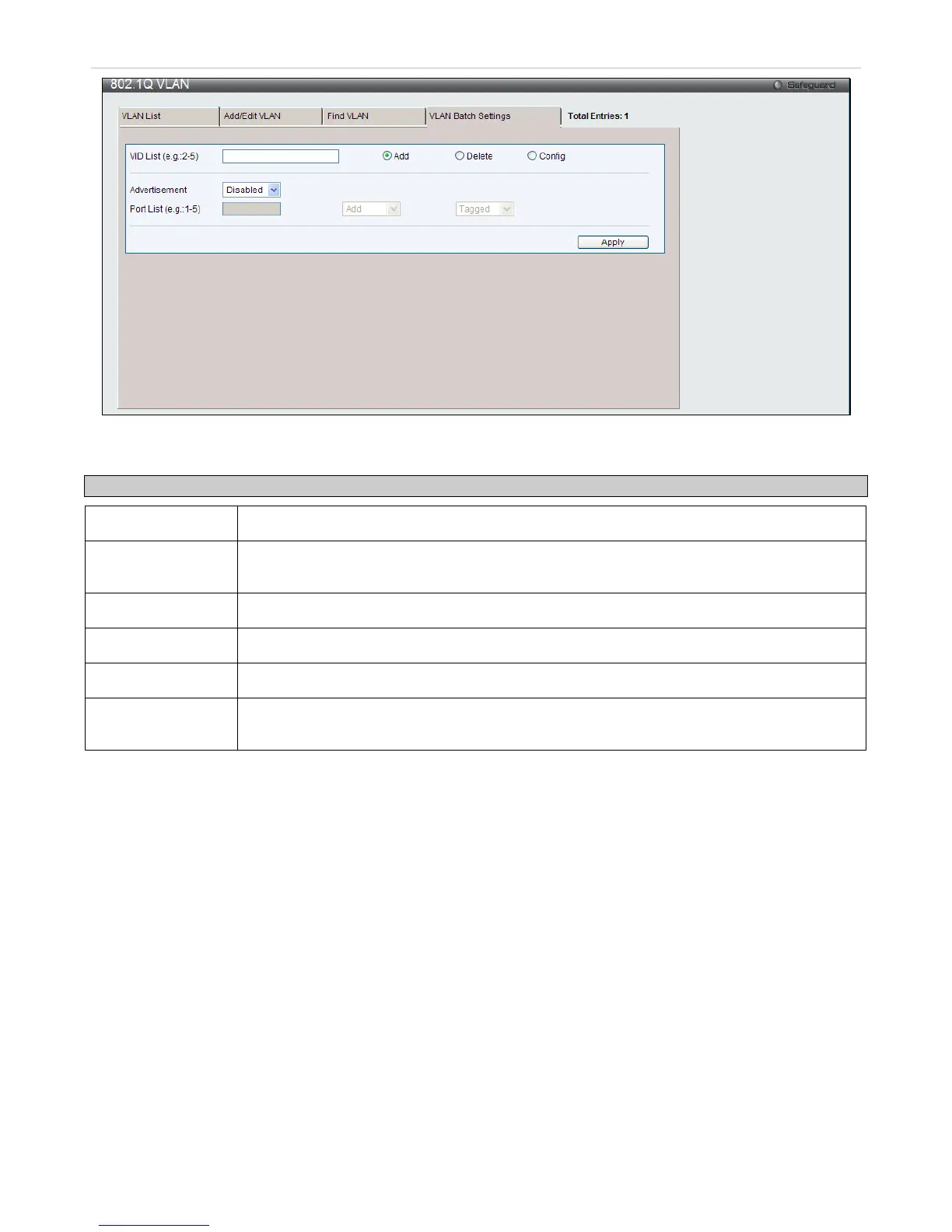

Figure 3 - 10 802.1Q VLAN window – VLAN Batch Settings window
The following fields can be set in the VLAN Batch Settings window:
Parameter Description
VID List (e.g 2-5)
Enter a VLAN ID List that can be added, deleted or configured.
Advertisement
Enabling this function will allow the Switch to send out GVRP packets to outside sources,
notifying that they may join the existing VLAN.
Port List (e.g. 1-5)
Allows an individual port list to be added or deleted as a member of the VLAN.
Tagged
Specifies the port as 802.1Q tagged. Checking the box will designate the port as Tagged.
Untagged
Specifies the port as 802.1Q untagged. Checking the box will designate the port as untagged.
Forbidden
Select this to specify the port as not being a member of the VLAN and that the port is
forbidden from becoming a member of the VLAN dynamically.
Click Apply to implement changes made.
