S0602170K
Page 5
Axle (ZF AP 420R)
GENERAL DESCRIPTION
AP 407 - 420
SPECIFICATIONS
Specifications M500-V Front Axle M500-V Rear Axle
Maker ZF ZF
Model AP420R AP420R
Type Fully floating planetary drive Fully floating planetary drive
Drive Unit Limited Slip Differential Limited slip differential
Final Drive Planetary gear train Planetary gear train
Overall Reduction Ratio 27:1 27:1
Axle Load
(Travel Condition)
14,900 kg
(32,850 lb)
14,000 kg
(30,860 lb)
Axle Load
(Working Condition)
27,000 kg
(59,520 lb)
10,500 kg
(23,150 lb)
Brake Type
- Wet disc
- Multidisk brake with hydraulic
control
- Wet disc
- Multidisk brake with hydraulic
control
Brake Torque
3,960 kg @ 50 kg/cm
2
(8,730 lb @ 711 psi)
3,960 kg @ 50 kg/cm
2
(8,730 lb @ 711 psi)
Steering Angle 40° 40°
Differential Carrier Version Screwed Bearing Caps - Differential Carrier Type "RK"

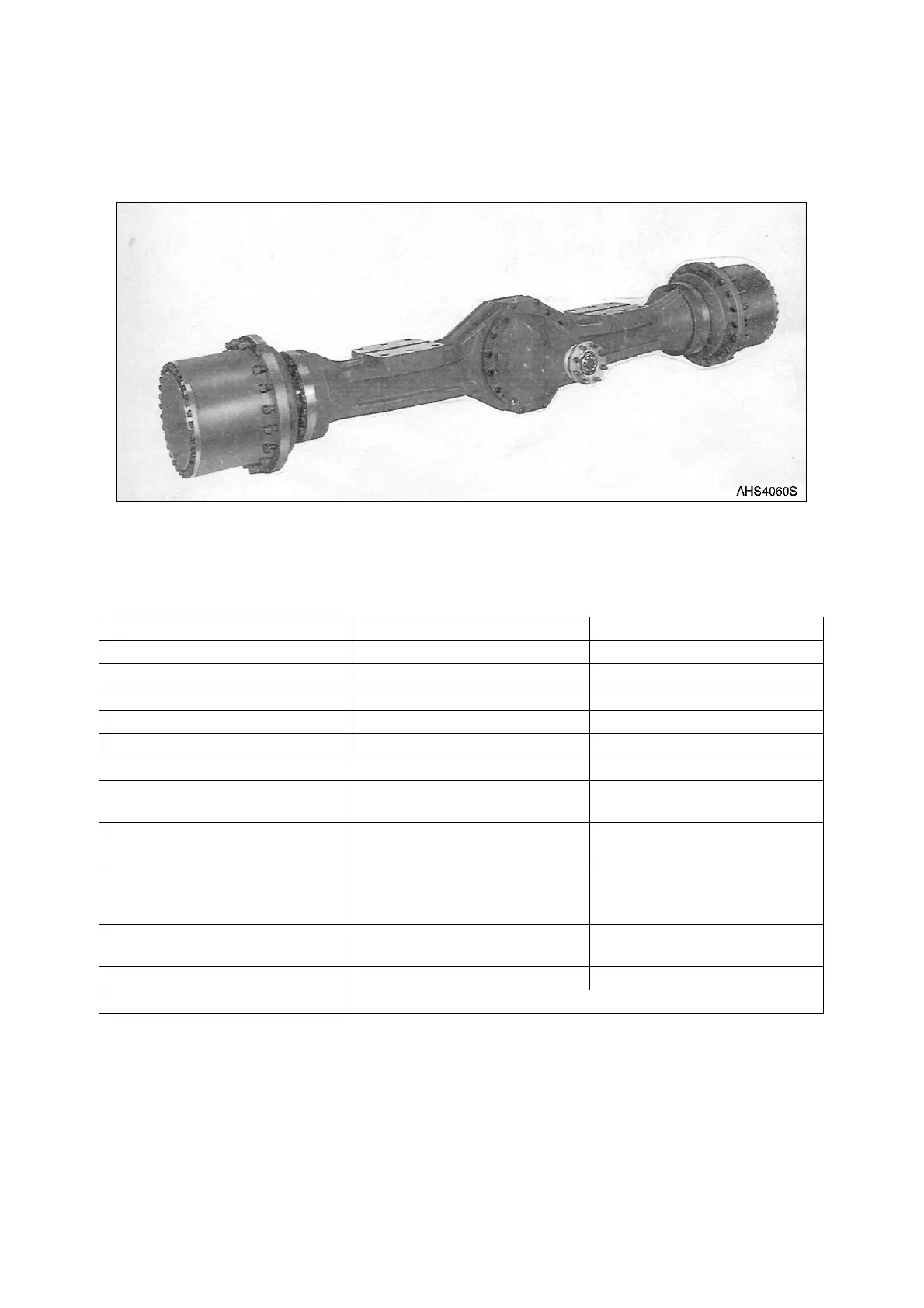

Figure 1
