S0802190K
Page 29
Electrical System
Return to Master Table of Contents
REAR WINDSHIELD WIPER
You can control rear windshield wiper by pressing wiper washer switch (2) in the switch panel.
1. 1st wiper action (Wiper and washer activate the same time, automatic return)
Fuse box (1), to the washer tank (4), to the 5,7 terminal of switch (20) are connected, then activates
windshield washers. Also fuse box (1), to the B,L terminal of wiper motor (3), to the diode (5), to the
5,7 terminal of switch (2) are connected, then activates wiper.
2. 2nd wiper action (Only wiper action)
Fuse box (1), to the B,L terminal of wiper motor (3), to the 4,2 terminal of switch (2) are connected,
then activates wiper.
3. When you turn off windshield wiper switch in 1st or 2nd position, electric current flows fuse box (1), to
the B,L terminal of wiper motor (3), to the 4,6 terminal of wiper switch (2), to the diode (6), to the S,E
terminal of wiper motor (3).
Reference
Number
Description
1 Fuse Box
2 Wiper Washer Switch
3 Wiper Relay
4 Wiper Timer
5 Wiper Motor
6 Washer Tank
7 Diode
Reference
Number
Description
AJS0170L
1
2
3
4
5
6
5

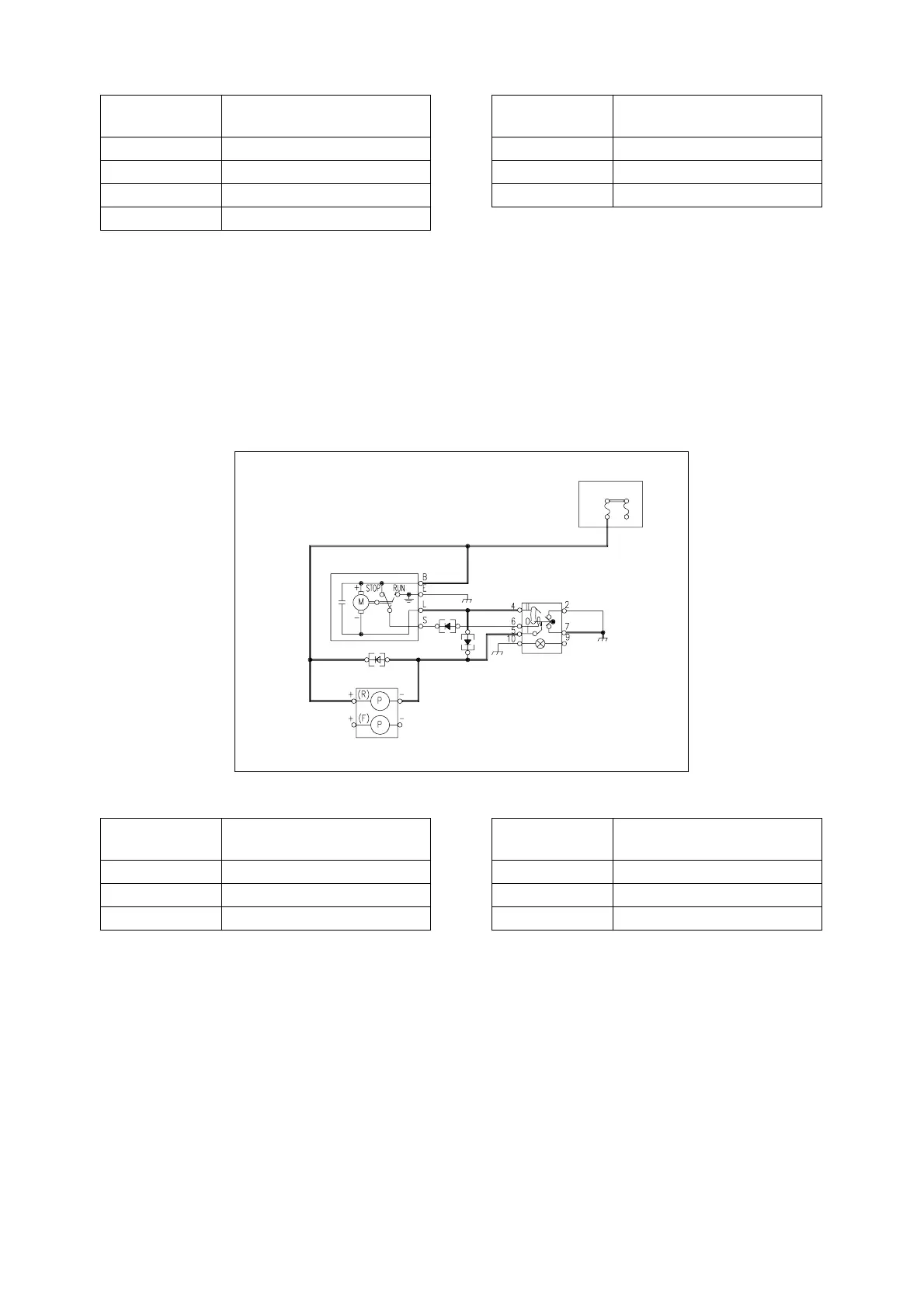

Figure 15 REAR WINDSHIELD WIPER 1ST ACTION CIRCUIT
Reference
Number
Description
1 Fuse Box
2 Wiper/washer Switch
3 Wiper Motor
4 Washer Tank
5 Diode
6 Diode
Reference
Number
Description
To Next Page
