S0602170K

Page 46

Axle (ZF AP 420R)

DIFFERENTIAL DISASSEMBLY (VERSION - CAST-ON

BEARING CAPS)

NOTE:

Remove the two stub shafts

before separate the differential

carrier from the axle housing,

see Figure 60 - Figure 63.

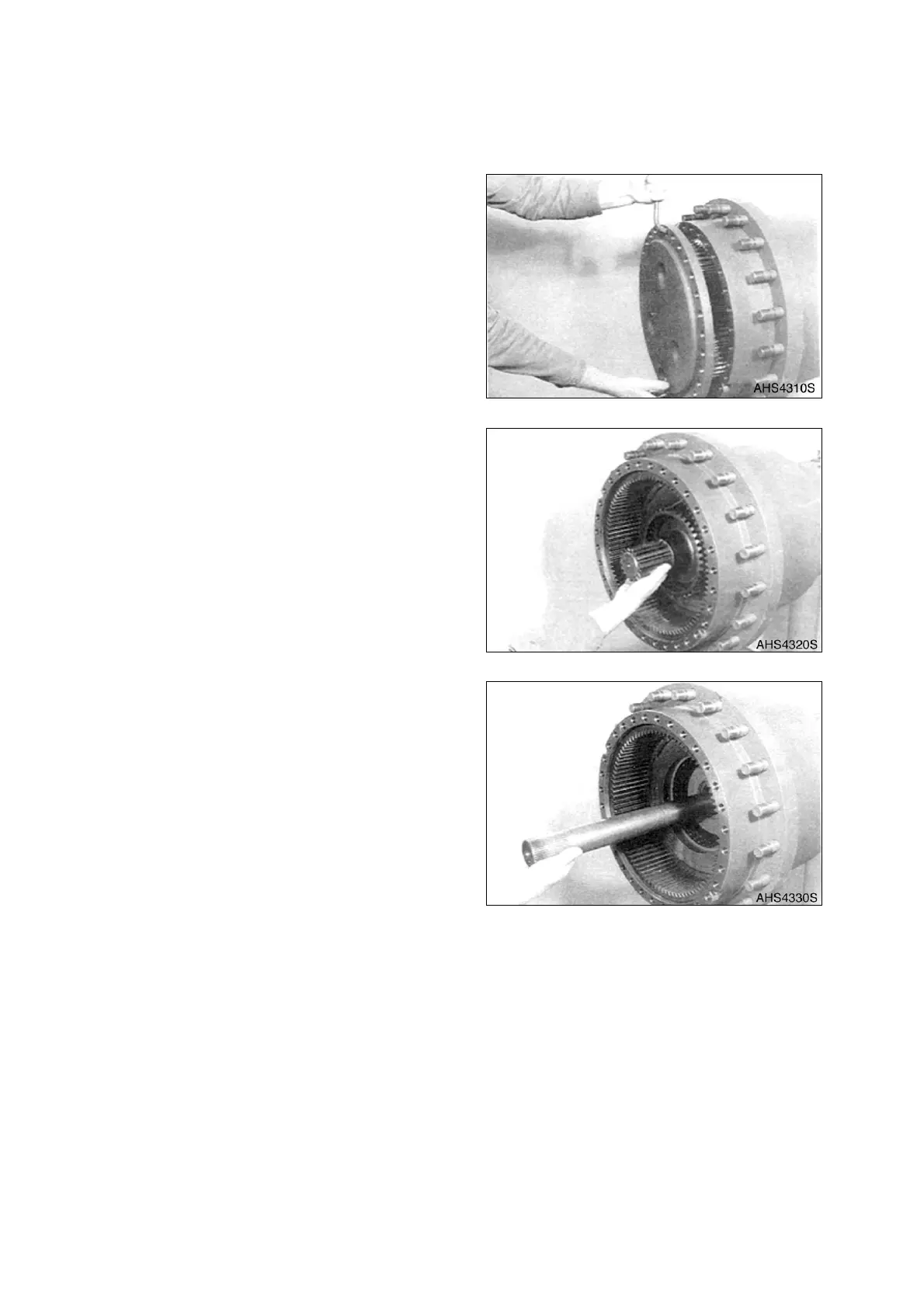

1. Drain oil from the ﬁnal drive and the axle

housing.

2. Remove hex. head screws and separate

planetary carrier from the hubs, using eye

bolt.

NOTE:

See “Special Tools” on page 15.

3. Pull inner plate carrier (along with sun

gear) from the stub shaft.

4. Pull stub shaft out of the axle housing.

Figure 60

Figure 61

Figure 62
