Daewoo Mega 500-V - Drive Unit

S0602170K
Page 50
Axle (ZF AP 420R)
DRIVE UNIT

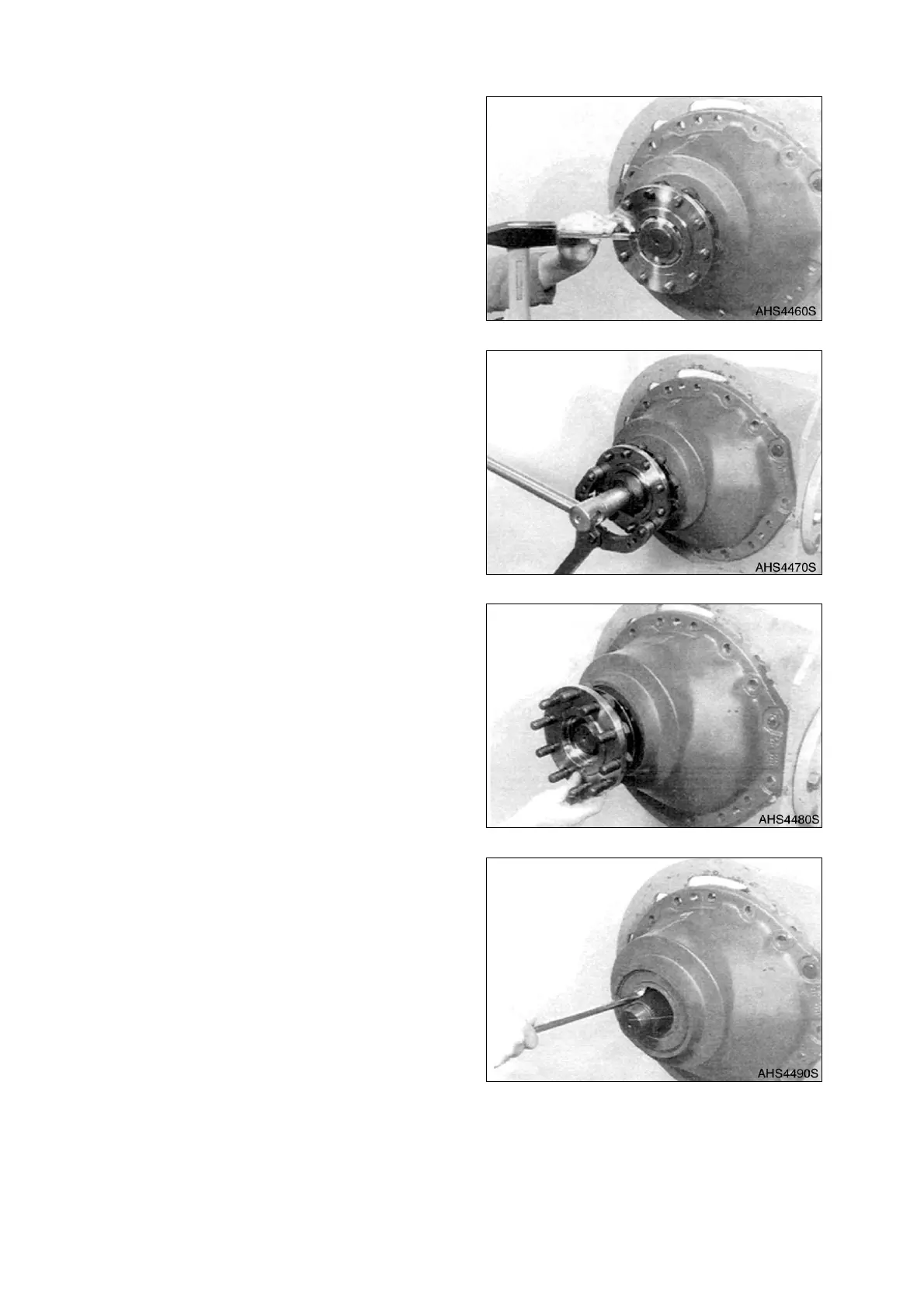

1. Unlock slotted nut or hex. nut (according to
the Version) and remove lock plate.
2. Loosen slotted nut or hex. nut (according
to the Version) and remove it along with
washer.
NOTE: See “Special Tools” on page 15.
3. Pull off drive flange.
4. Pry out shaft seal.
Figure 75
Figure 76
Figure 77
Figure 78
