Axle (ZF AP 420R)
10. Remove adjusting nuts.
11. Remove differential assembly from the
axle carrier.
NOTE:
See “Special Tools” on page 15.
DIFFERENTIAL
1. Pull the two inner bearing races of the
tapered roller bearing from the differential
case halves.
NOTE:
See “Special Tools” on page 15.
2. Match mark housing cover with differential.
3. Clamp the differential case halves, remove
the locking screws.
4. Back off the cover.
NOTE:
Pay attention to the released
thrust washer.

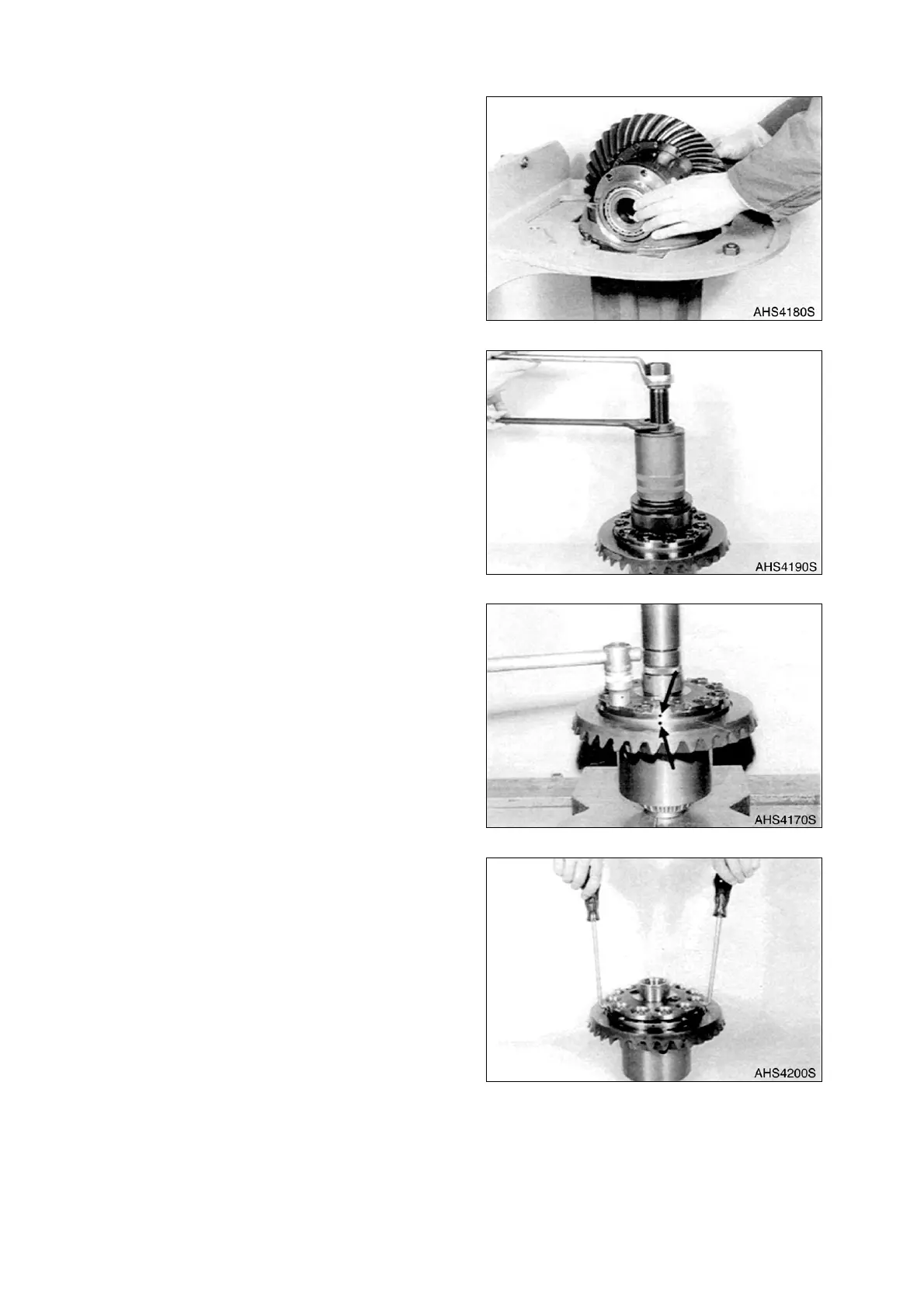

Figure 46
Figure 47
Figure 48
Figure 49
