S0607080K
Page 51
Transmission and Torque Converter
(ZF 4WG-310)
REASSEMBLY
NOTE:
Check all components for
damage and replace if
necessary. Prior to installation,
check free travel of all moving
parts in housing. Spools can be
exchanged individually. Oil
components before reassembly
according to ZF-List of
lubricants TE-ML 03.

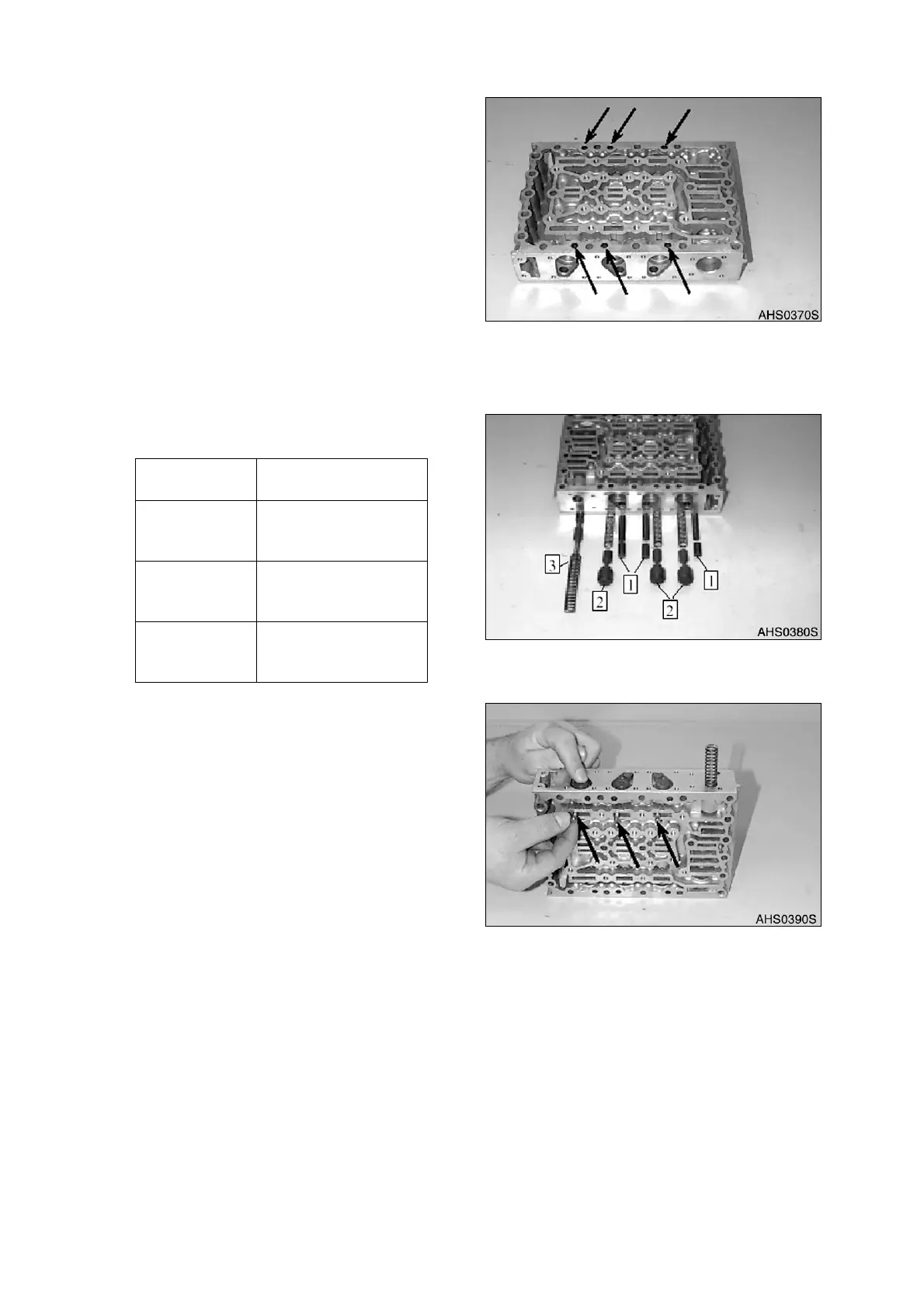

Insert diaphragms with concave
side facing upward until contact
is obtained.
NOTE:
Installation position, see
arrows.
1. Figure 55, shows the following
components:
2. Install components according to Figure 55.
NOTE:
Preload compression spring of
the follow-on slides and locate
spool provisionally using
cylindrical pins Ø 5.0 mm
(0.1969 in) (assembly aid), See
Figure 56.
Reference
Number
Description
1 Vibration Damper (3x
Spool and
Compression Spring)
2 Follow On Site (3x
Spool And
Compression Spring)
3 Pressure Reducing
Valve (1x Spool And
Compression Spring)
Figure 54
Figure 55
Figure 56
