Daewoo Mega 500-V - Forward Third Gear

S0607080K
Page 29
Transmission and Torque Converter
(ZF 4WG-310)
Forward Third Gear

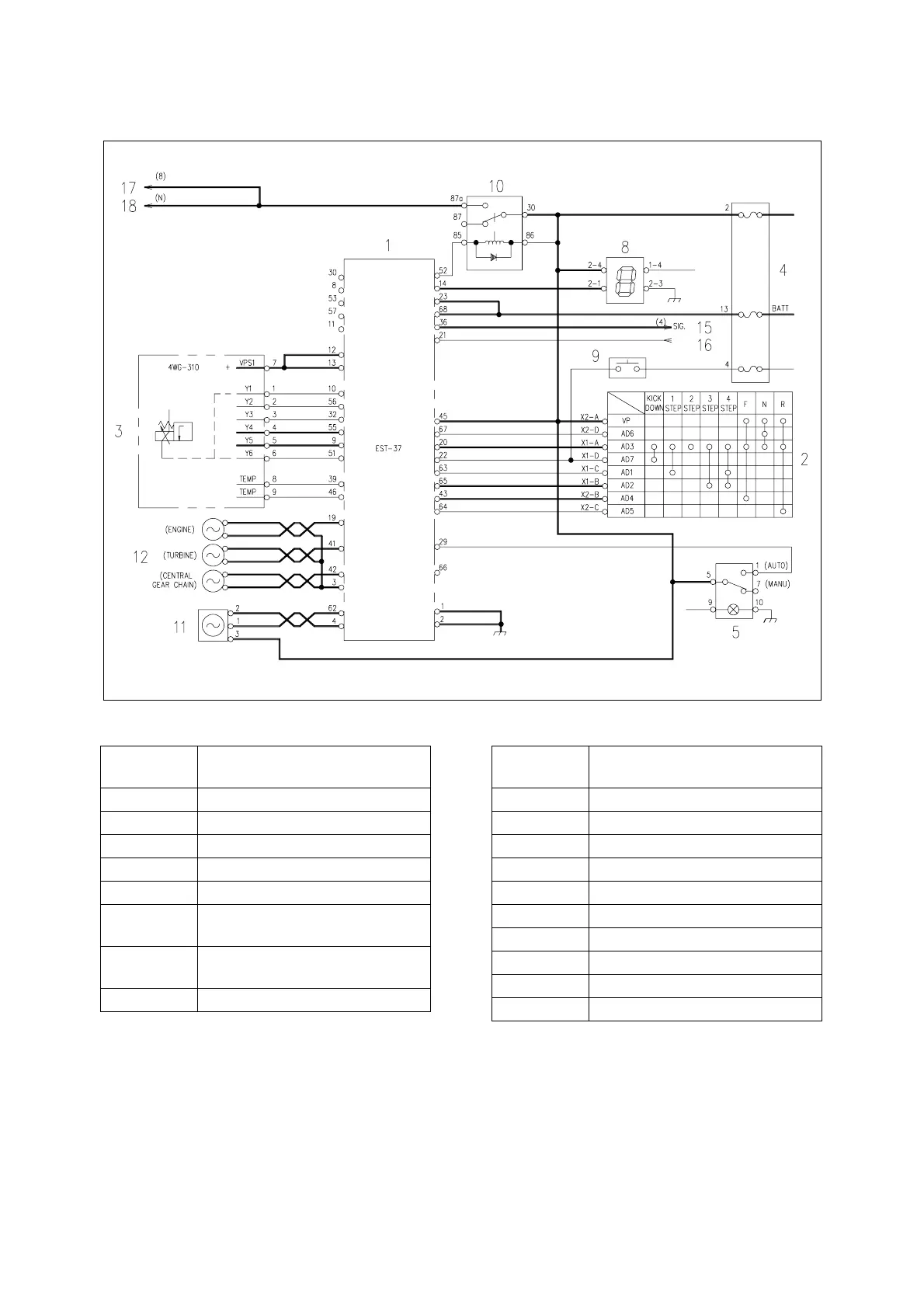

Transmission solenoid valves (Y4 and Y5, Figure 25) are energized when in forward third gear.
AHS0170L
Figure 25
Reference
Number
Description
1 Transmission Controller
2 Transmission Selector Switch
3 Transmission Control Valve
4 Fuse Box
5 Auto Selector Switch
6 Transmission Cutoff Selector
Switch
7 Transmission Cutoff Pressure
Switch
8 Display
9 Downshift Switch
10 Safety Start Switch
11 Output Speed Sensor
12 Speed Pick-up
13 LIS Select Switch
14 LIS Solenoid
15 Speedometer
16 Parking Brake Switch
17 Control Unit
18 Starter Controller
Reference
Number
Description
