Electrical System
Return to Master Table of Contents
PRINCIPLE OF OPERATION
When the ether switch (7) is pressed and
released, the valve (8) is operated and the ether
is dispensed into the intake manifold of engine.
After this operation the starter switch is turned to
the start position, the engine can be cranked
more easy.
NOTE:
Never hold the ether switch (7)
in for more than 5 seconds, as
this can damage the electric
solenoid valve.
I
HA3O2019
O
Figure 5
AHS6630L

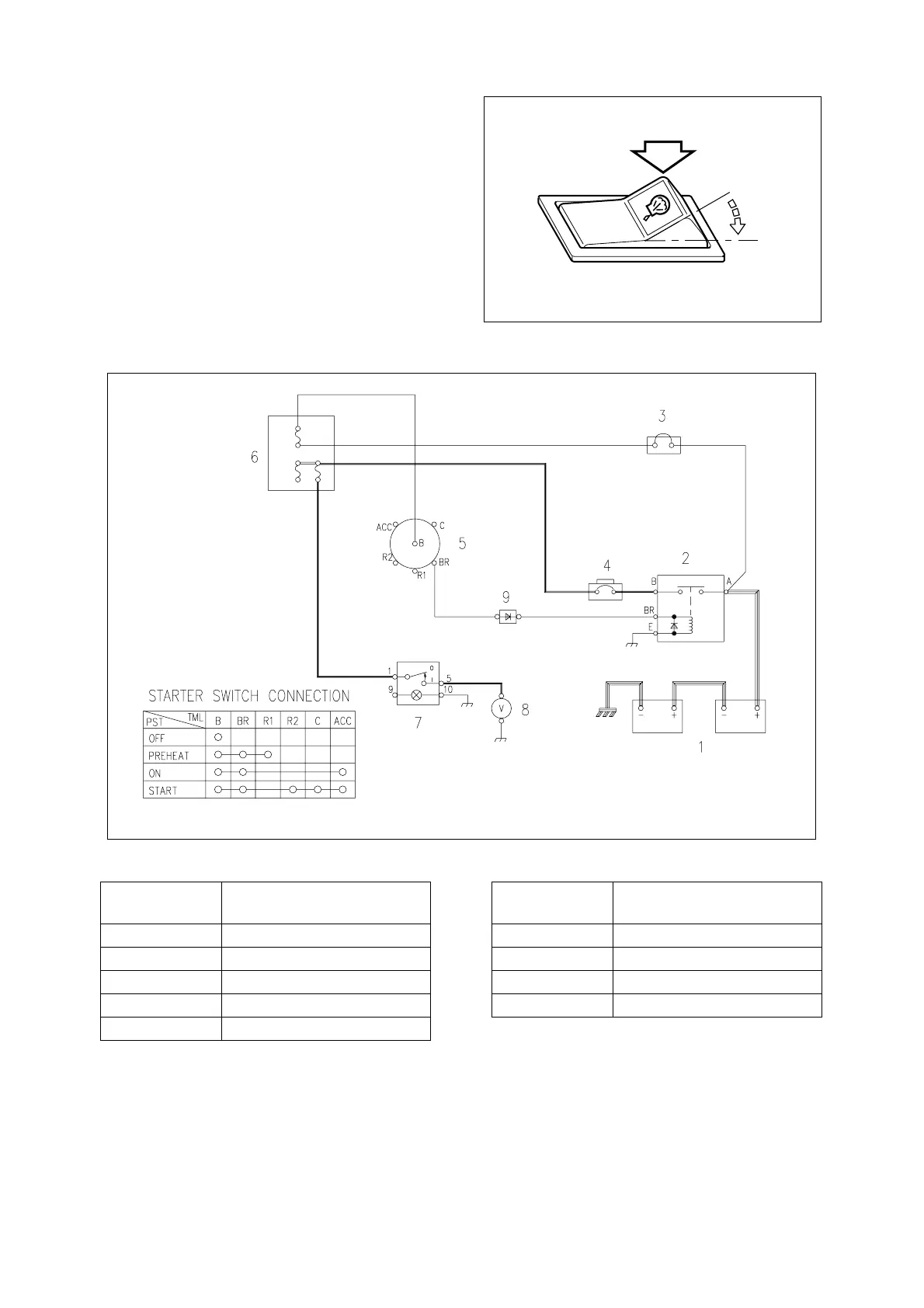

Figure 6 COLD WEATER STARTING AID CIRCUIT
Reference
Number
Description
1 Battery
2 Battery Relay
3 Fusible Link
4 Circuit Breaker
5 Starter Switch
6 Fuse Box
7 Ether Switch
8 Ether Valve
9 Diode
