S0708470K
Page 13
Steering and Brake Pump (Denison T67DB Series)
CARTRIDGE DISASSEMBLY

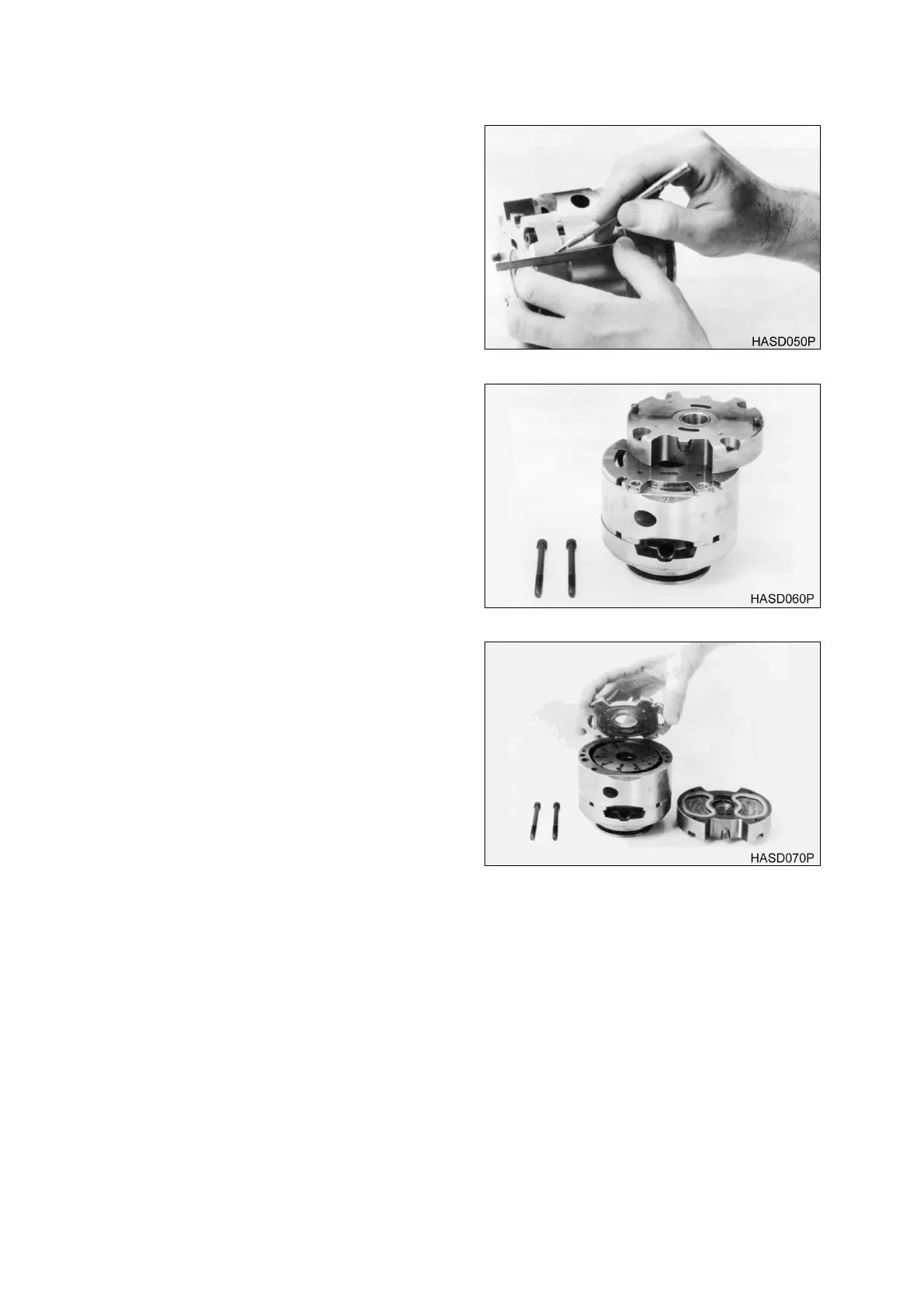

1. Scribe a line across outer surface of
cartridge kit to provide a reference for
parts during assembly.
2. Place cartridge on a flat surface (outlet
support plate down) and remove two
socket head screws.
NOTE:
Do not slide flex side plates
across ring and rotor. Burrs on
ring and rotor can cause deep
scratches in soft brass surface.
3. Slide inlet support plate and seal packs off
cartridge. Do not allow flex side plate to
slide with support plate.
4. Move flex side plate off center just enough
to grab edge and lift up and away without
sliding.
Figure 7
Figure 8
Figure 9
