S0607080K
Page 112
Transmission and Torque Converter
(ZF 4WG-310)
Multidisk Clutch - KV

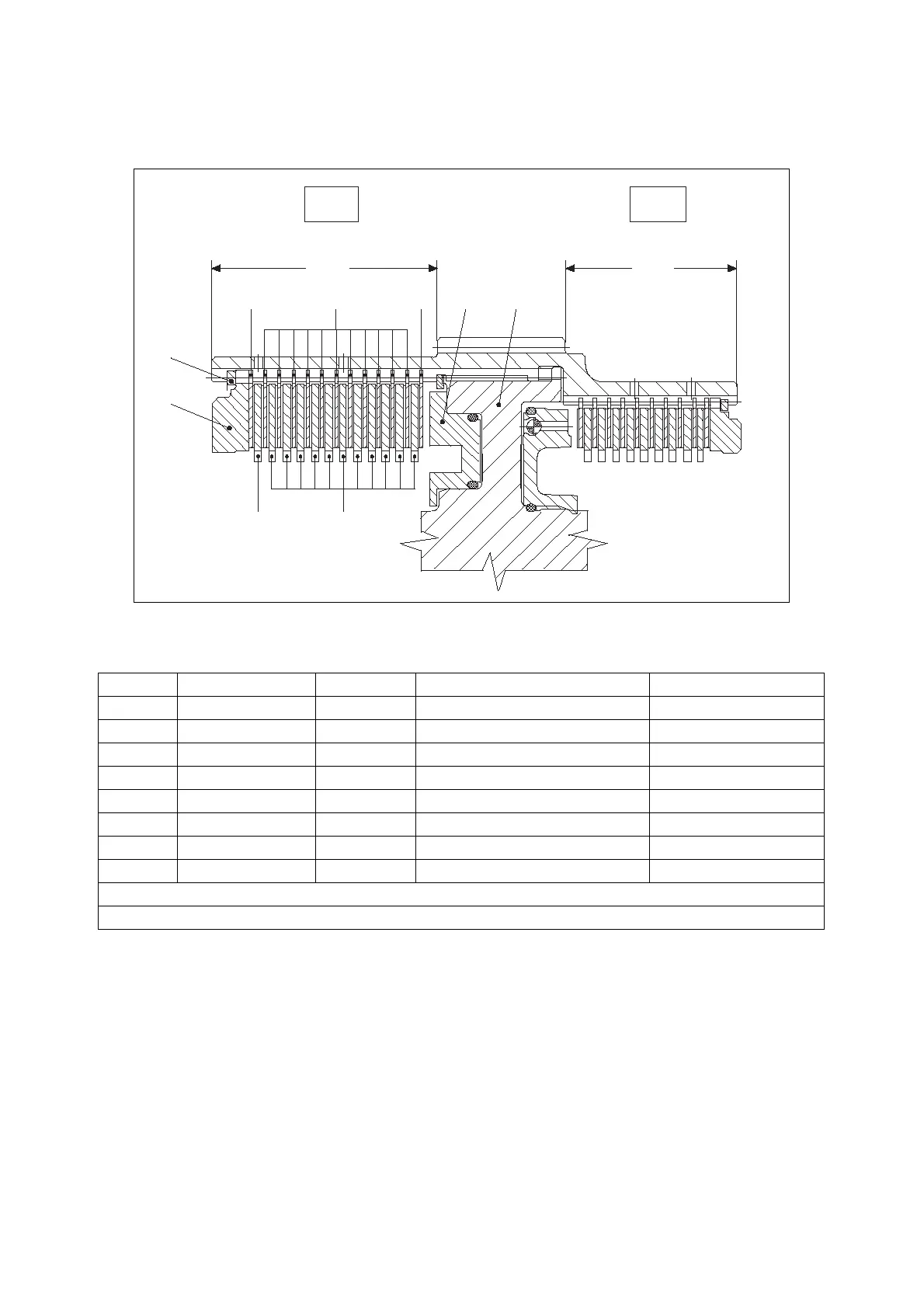

Figure 259, shows the plate stacking and the installation position of the components.
NOTE:
Install outer plates Item 3, with the uncoated side facing the piston, resp. the end shim.
The respective clutch side can be recognized by the length, resp.
∅
of the plate carrier,
see Figure 259.
KV = Dimension Y (long plate-carrier side, resp. great
∅
)
K1 = Dimension X (short plate-carrier side, resp. small
∅
)
Item Denomination Quantity s (mm) Comment
1 Plate Carrier 1
2 Piston 1
3 Outer Plate 2 1.85 (0.0728 in) One-side Coated
4 Outer Plate 11 2.5 (0.0984 in) Coated On Both Sides
5 Inner Plate 11 2.5 (0.0984 in)
6 Inner Plate 1 3.0 (0.1181 in) Optional
7 Snap Ring 1 2.5 - 4.0 (0.0984 - 0.1575 in) Optional
8 End Shim 1
Number of friction surfaces: 24
Plate clearance: 2.8 - 3.0 mm (0.1102 - 0.1181 in)
AHS2190S
X
Y
33
4
2
1
6
5
7
8
KV
K1
Figure 259
