Axle (ZF AP 420R)
5. Take all components of the multidisk self
locking differential out of the differential
case.
6. Press crown wheel from the differential
case.
DRIVE UNIT
1. Unlock slotted nut or hex. head screw
(according to the Version) and remove lock
plate.
2. Loosen slotted nut or hex. nut (according
to the Version) and remove it along with
washer.
NOTE:
See “Special Tools” on page 15.

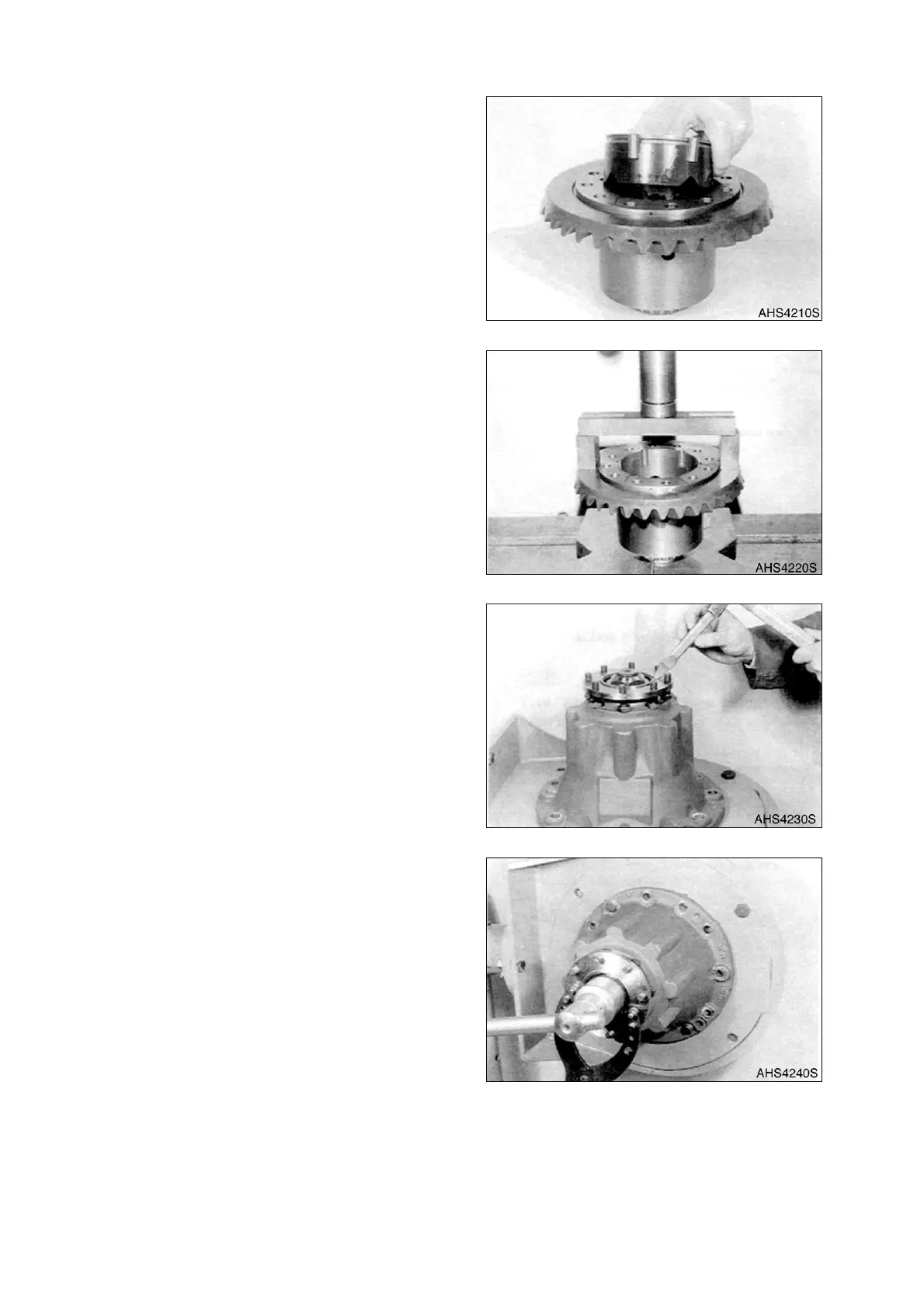

Figure 50
Figure 51
Figure 52
Figure 53
