Daewoo Mega 500-V - Neutral; Transmission Controller Circuit; Travelling Circuits

S0607080K
Page 26
Transmission and Torque Converter
(ZF 4WG-310)

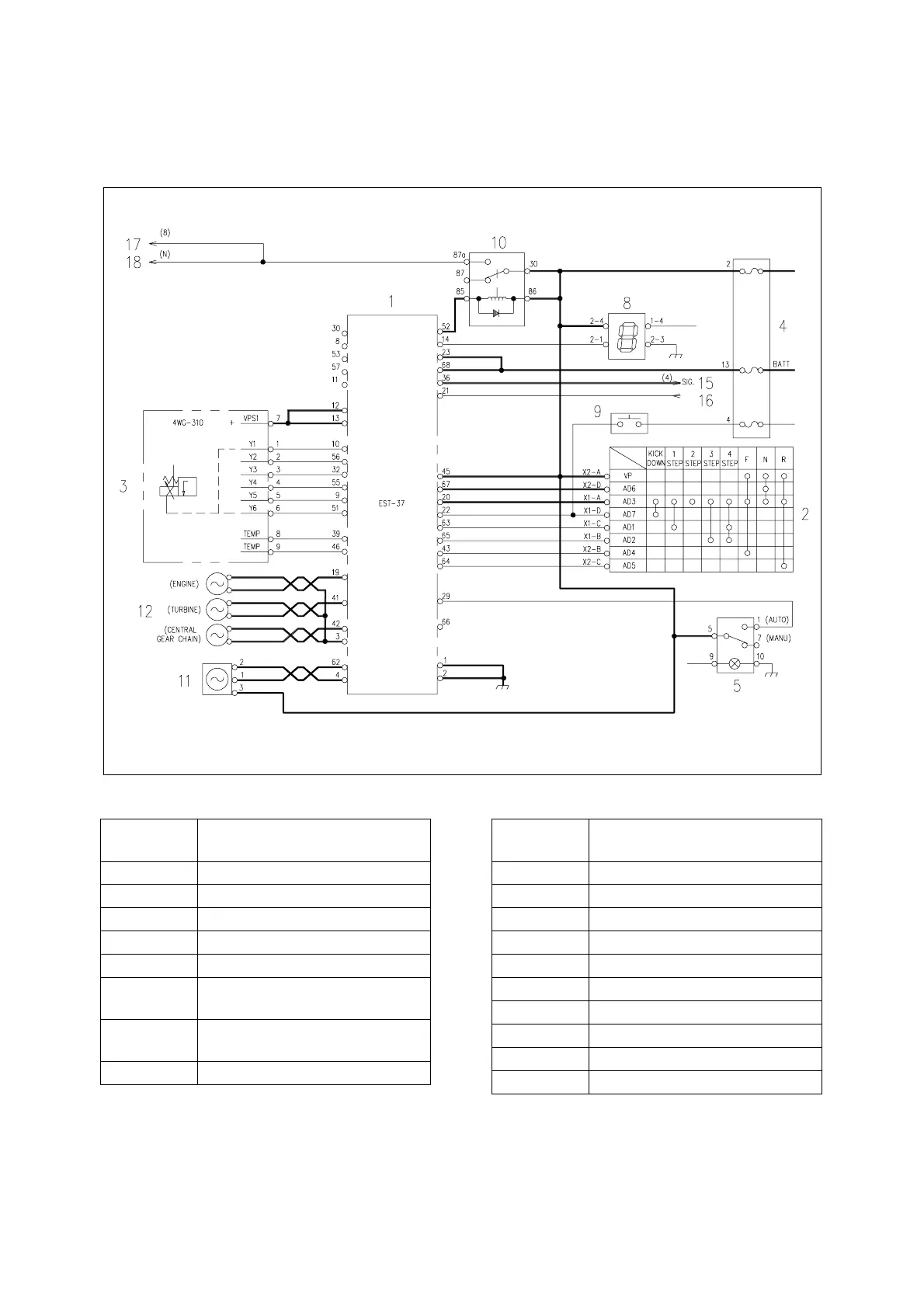

TRAVELING CIRCUITS
Neutral
AHS0140L
Figure 22
Reference
Number
Description
1 Transmission Controller
2 Transmission Selector Switch
3 Transmission Control Valve
4 Fuse Box
5 Auto Selector Switch
6 Transmission Cutoff Selector
Switch
7 Transmission Cutoff Pressure
Switch
8 Display
9 Downshift Switch
10 Safety Start Switch
11 Output Speed Sensor
12 Speed Pick-up
13 LIS Select Switch
14 LIS Solenoid
15 Speedometer
16 Parking Brake Switch
17 Control Unit
18 Starter Controller
