Daewoo Mega 500-V - Filter

S0607080K
Page 143
Transmission and Torque Converter
(ZF 4WG-310)
5. Secure hex. head screws using lock plate.
FILTER
1. Introduce filter (compl.) into the housing
bore.
NOTE: Oil sealing ring (Arrow).
2. Fasten cover using hex. head screws
(mount flat washers).
3. Install new O-ring (Arrow).
NOTE: Torque limit (M8/8.8) 23 Nm (17
ft lb).
4. Equip screw plugs (1 and 2, Figure 360)
with new O-ring and install them.
5. Mount gasket and fasten cover plate (3,
Figure 360) using hex. head screws.
NOTE: Torque limit (screw plugs) 140
Nm (103 ft lb).
NOTE: Torque limit (M8/8.8) 23 Nm (17
ft lb).

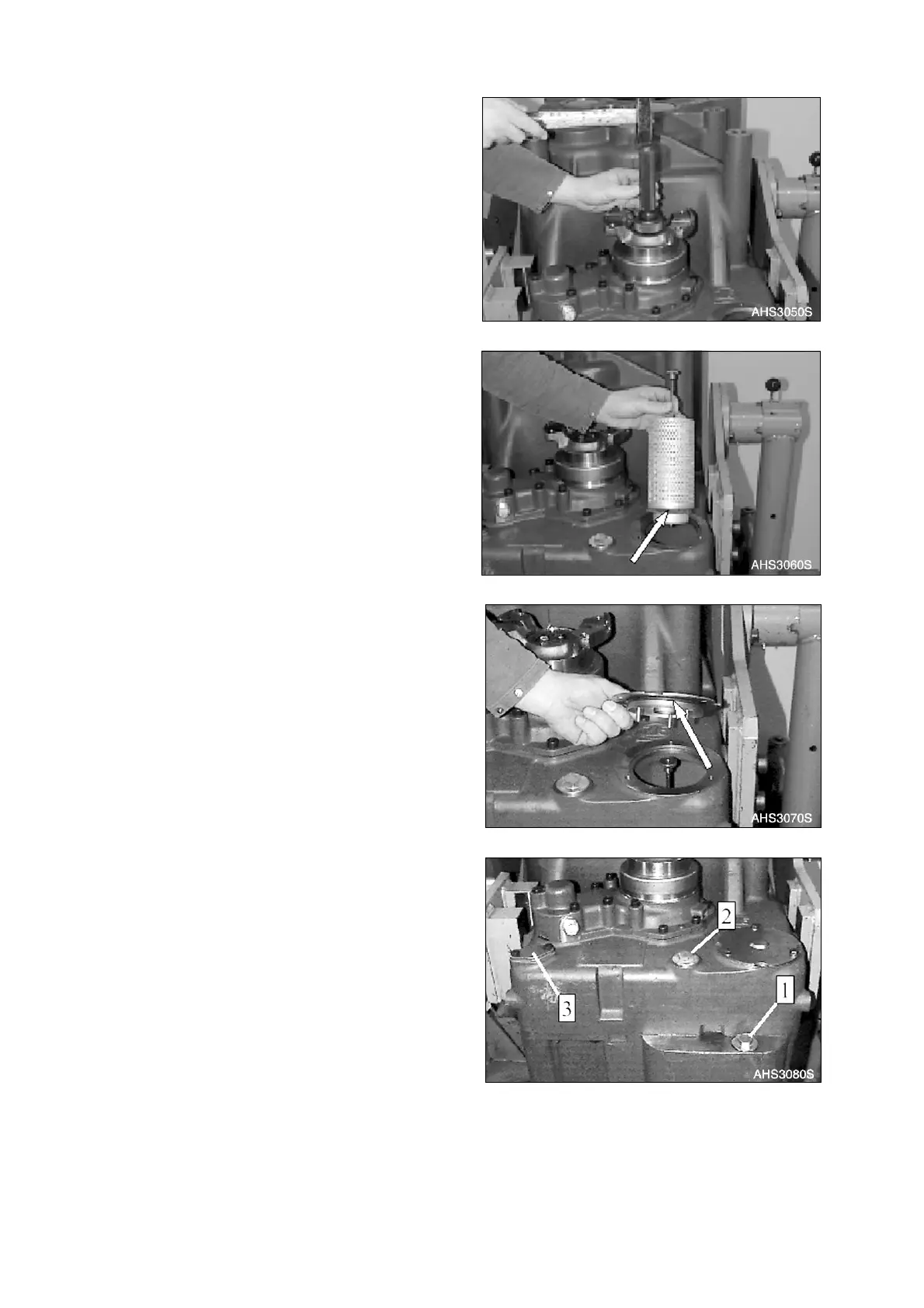

Figure 357
Figure 358
Figure 359
Figure 360
