Daewoo Mega 500-V - Examples of Gear-Tooth-Contact Patterns for the Gleason Gear-Tooth System

S0602170K
Page 11
Axle (ZF AP 420R)

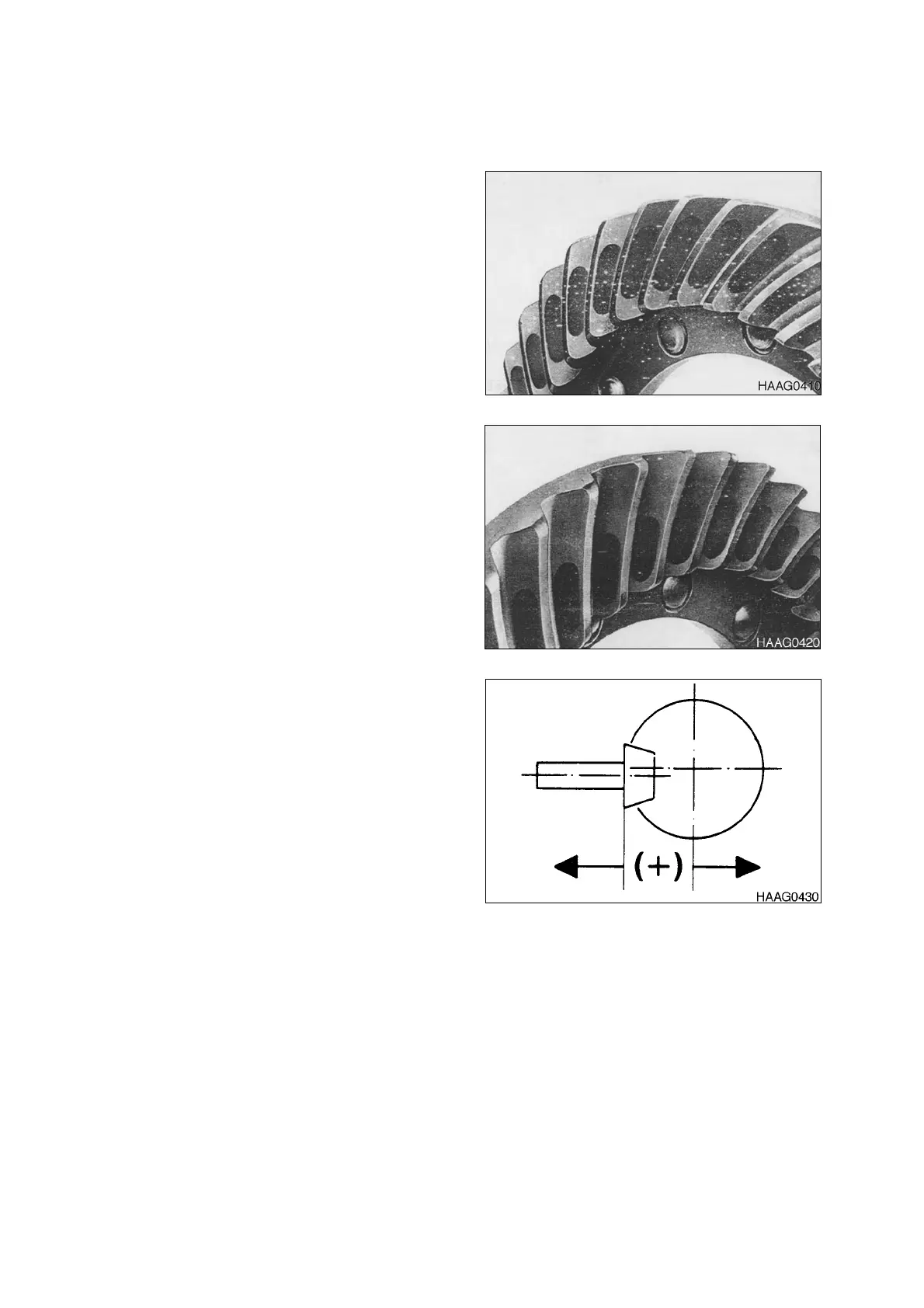

EXAMPLES OF GEAR-TOOTH-CONTACT PATTERNS
FOR THE GLEASON GEAR-TOOTH SYSTEM
Ideals Tooth-contact Pattern I.E. Pinion Distance Is Correct
Coast side (concave).
Drive side (convex).
Pinion Distance must be increased.
Figure 2
Figure 3
Figure 4
