Axle (ZF AP 420R)
11. Replace drive flange. Assemble washer
and tighten slotted nuts resp. hex. nut
(according to the Version) finally.
NOTE:
Torque Limit:
RK 1,100 Nm (810 ft lb)
HK/LK 1,200 Nm (885 ft lb)
DK/CK 700 Nm (515 ft lb)
NOTE:
The securing of the slotted nuts
resp. hex. nut (according to the
Version) is carried out after the
contact pattern is taken.
DIFFERENTIAL
1. Heat the crown wheel and place it against
the differential case half until contact is
obtained.
2. Clamp differential case using press.
3. Tighten locking screws.
NOTE:
Only single use of the locking
screws is admitted.
4. Press inner bearing race firmly against
shoulder.
5. Lay the two thrust washers into the
differential case half.
NOTE:
Mount brass washer on top with
the lubricating groove facing
the side gear.

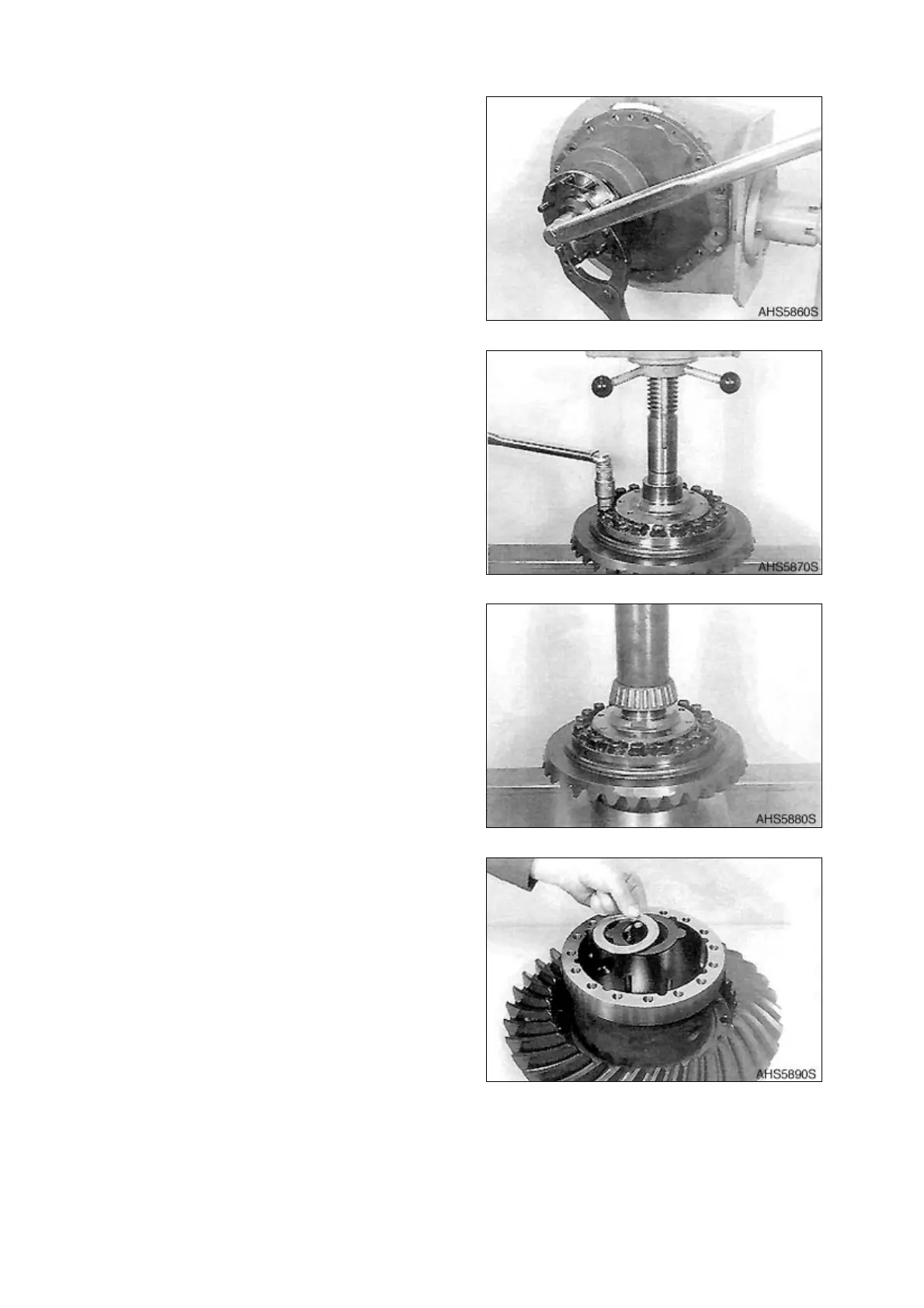

Figure 212
Figure 213
Figure 214
Figure 215
