Daewoo Mega 500-V - Instruments; Operation

S0802190K
Page 22
Electrical System
Return to Master Table of Contents
OPERATION

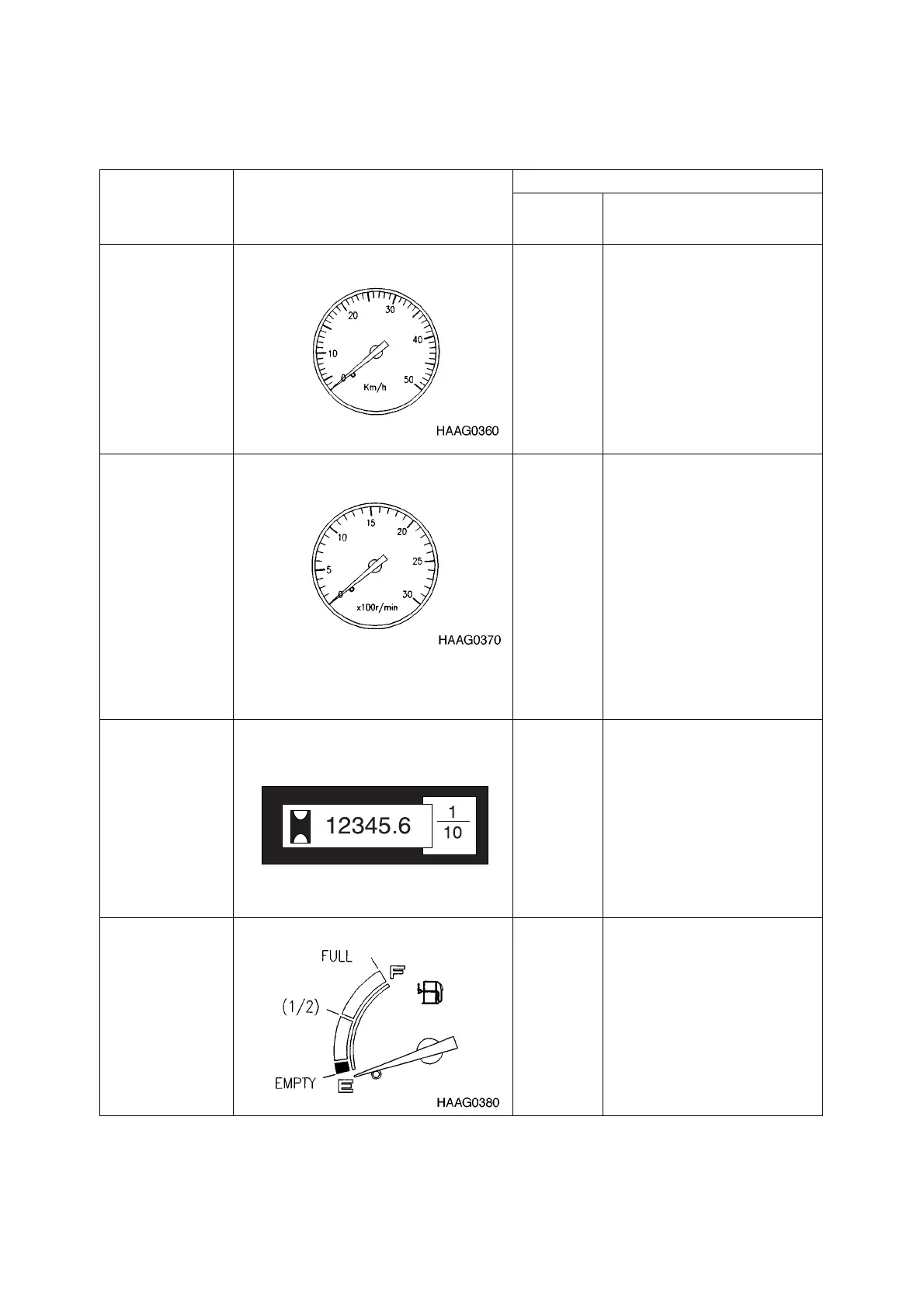

Instruments
Function Display
Sensor Specification
Input
Terminal
Input Specification
Speedometer
CN1-4
CN1-5
10 km/h- 905 Hz
20 km/h- 1,811 Hz
30 km/h- 2,716 Hz
40 km/h- 3,622 Hz
*F = 90.55 V [Hz]
F : Frequency of
transmission controller
V: Speed (km/h)
Tachometer CN1-3
500 rpm - 143 Hz
1000 rpm - 287 Hz
1500 rpm - 430 Hz
2000 rpm - 573 Hz
2500 rpm - 717 Hz
3000 rpm - 860 Hz
*F = 0.2867 N [Hz]
F : Frequency of alternator
"P" terminal
N: Engine rpm
Hour Meter CN1-2
ALTERNATOR "I" Terminal
voltage (24V)
Fuel Level
Gauge
CN1-7
EMPTY - Above 90 Ohm
1/2 - 38 Ohm
FULL - Below 10 Ohm
0012
