Electrical System
Return to Master Table of Contents

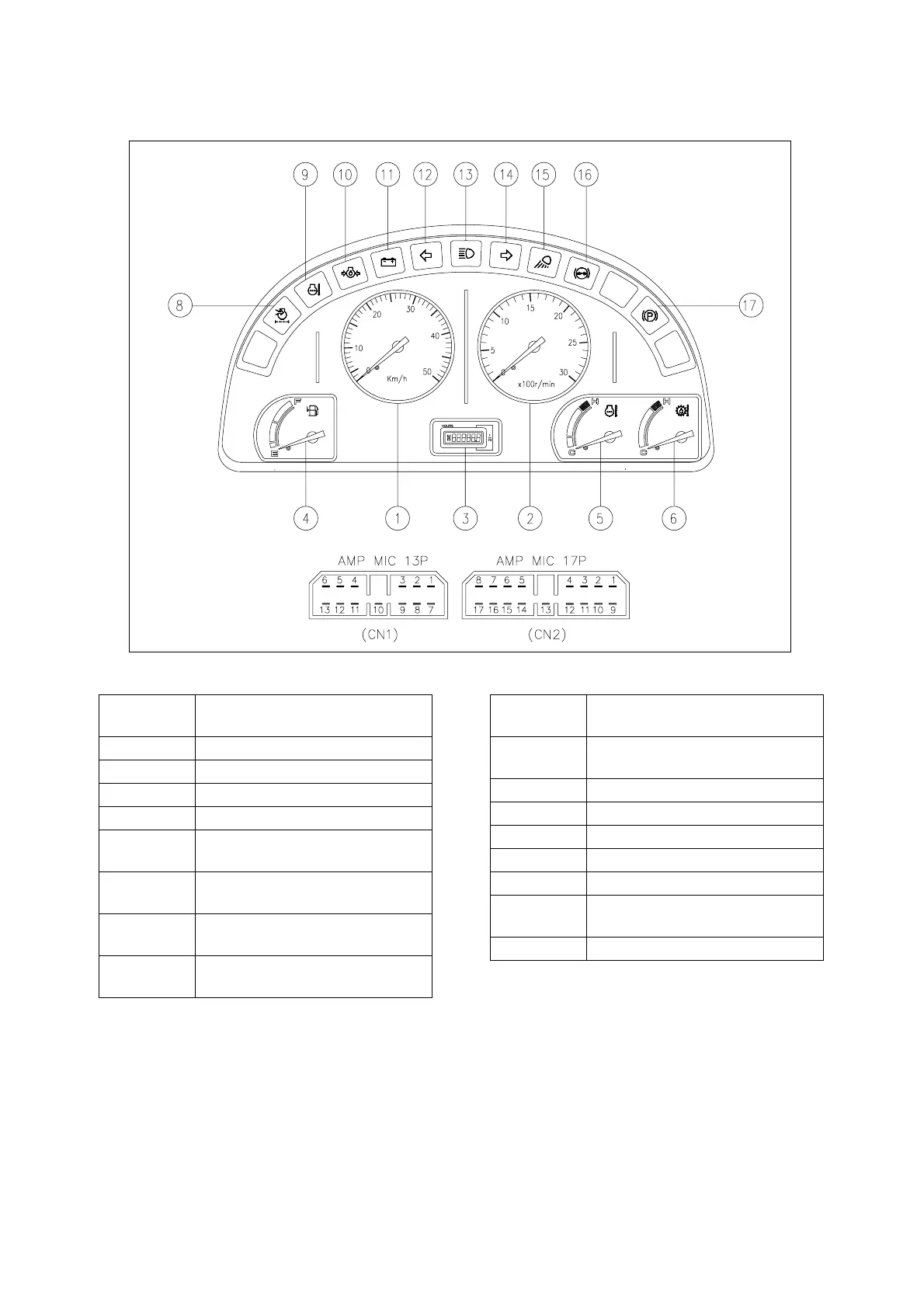

INSTRUMENT PANEL
AJS0100L
Figure 11
Reference
Number
Description
1 Speed Meter
2 Tachometer (M160)
3 Hour Meter
4 Fuel Gauge
5 Engine Coolant Temperature
Gauge
6 Transmission Oil Temperature
Gauge
8 Air Cleaner Clogging Warning
Light
9 Engine Coolant Temperature
Warning Light
10 Engine Oil Pressure Warning
Light
11 Charging Warning Light
12 Turn and Hazard Warning Light
13 High Beam Indicator
14 Turn and Hazard Warning Light
15 Work Light Indicator
16 Brake Oil Pressure Warning
Light
17 Parking Brake Indicator
