S0607080K
Page 70
Transmission and Torque Converter
(ZF 4WG-310)
POWER TAKE-OFF

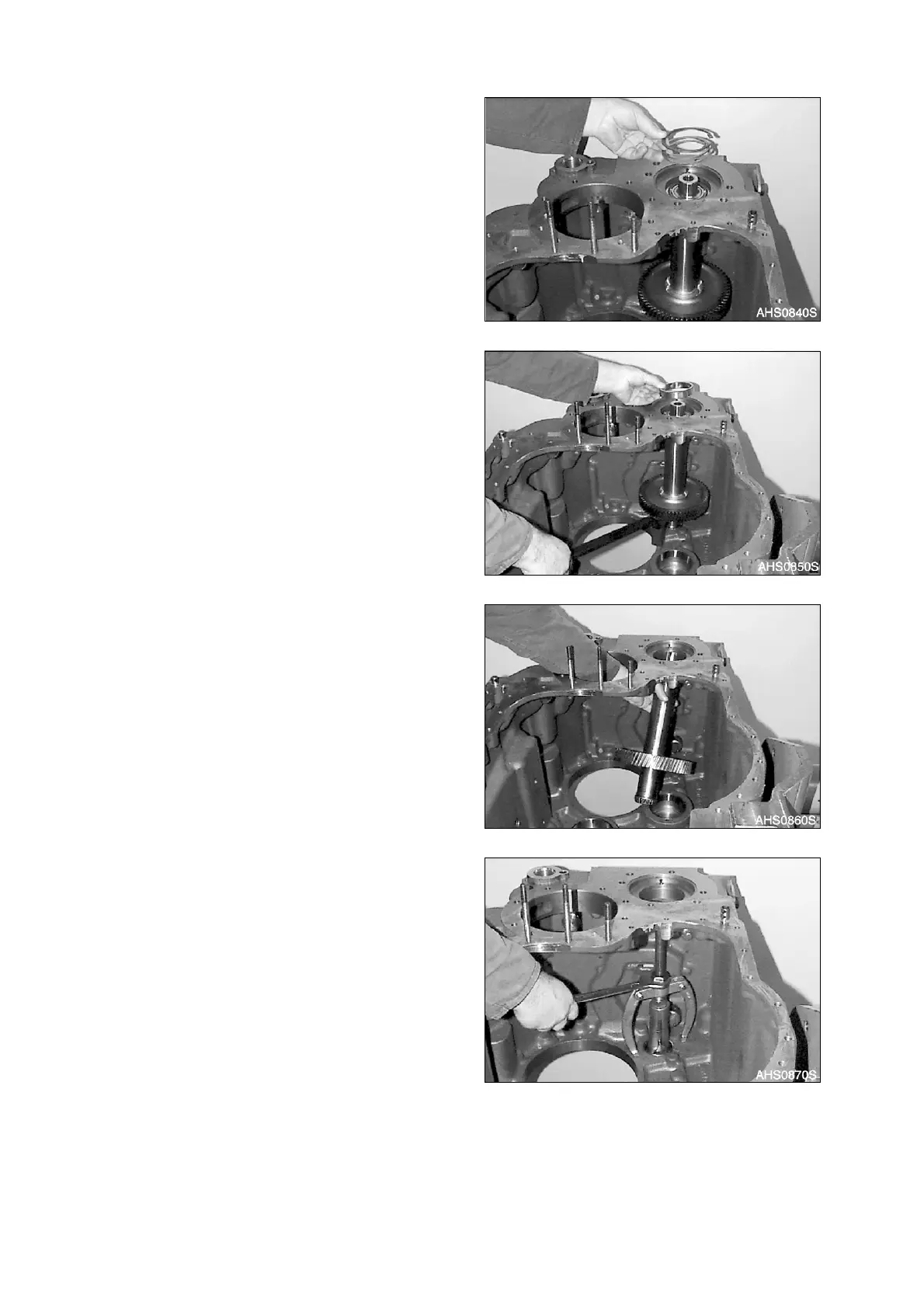

1. Squeeze circlip out and remove shims.
2. Lift output shaft using pry bar until the
outer bearing race is free.
3. Take output shaft out of the housing.
4. Pull outer bearing race out of the housing
bore.
Figure 125
Figure 126
Figure 127
Figure 128
