Transmission and Torque Converter
(ZF 4WG-310)

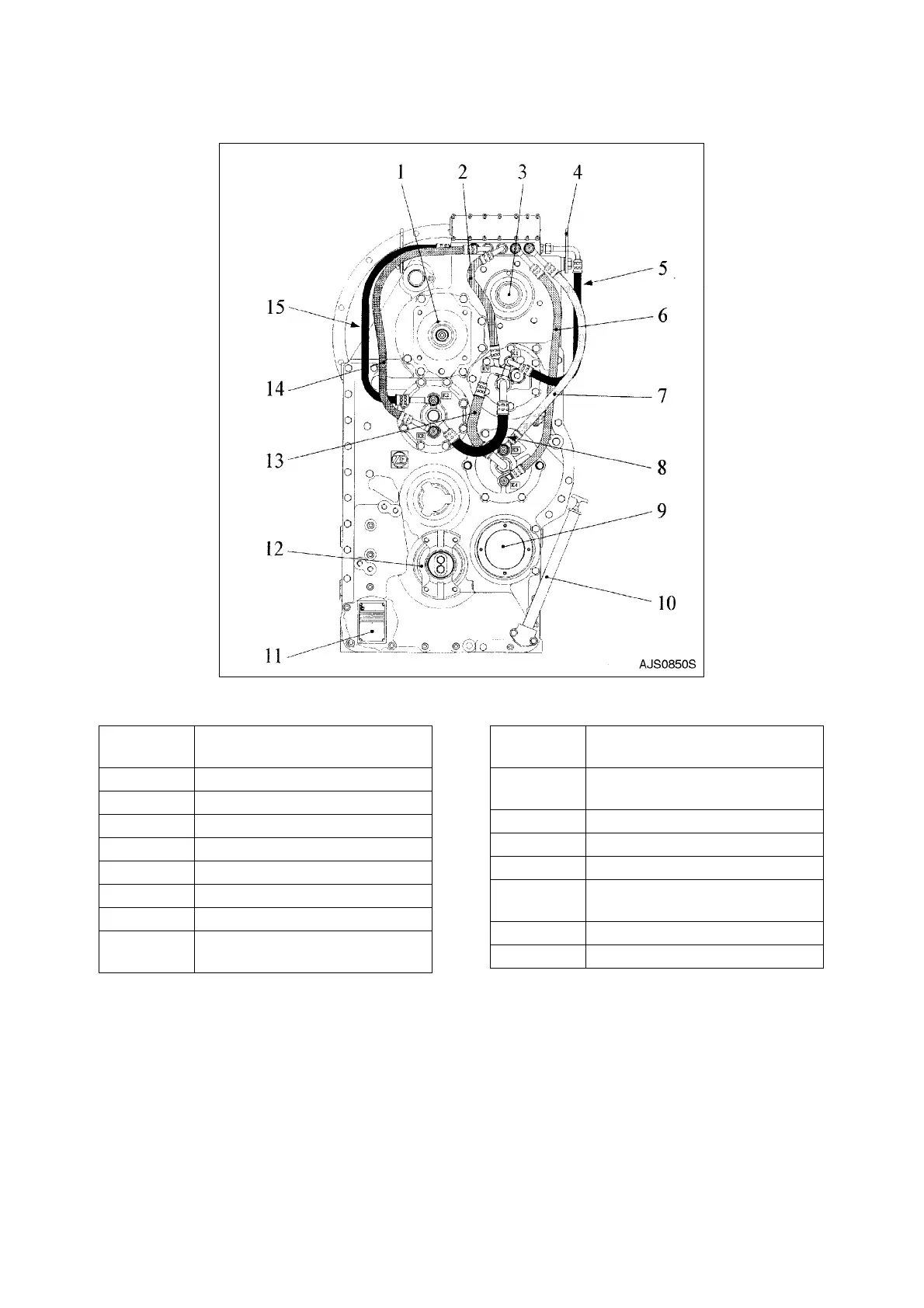

REAR VIEW
Figure 39
Reference
Number
Description
1 1st Power Take-off
2 Pressure Line Clutch KV
3 2nd Power Take-off
4 Lifting Lug
5 Pressure Oil Line Clutch K1
6 Pressure Oil Line Clutch K4
7 Pressure Oil Line Clutch K3
8 Lubricating Oil Line "S1" Clutch
KR / K2
9 Attachment Possibility for
Emergency Steering Pump
10 Oil Filter Tube With Oil Dipstick
11 Model Identiļ¬cation Plate
12 Output Flange (Rear-side)
13 Lubricating Oil Line "S2" Clutch
K4 / K3
14 Pressure Oil Line Clutch KR
15 Pressure Oil Line Clutch K2
Reference
Number
Description
