S0607080K
Page 117
Transmission and Torque Converter
(ZF 4WG-310)
Multidisk Clutch - K4

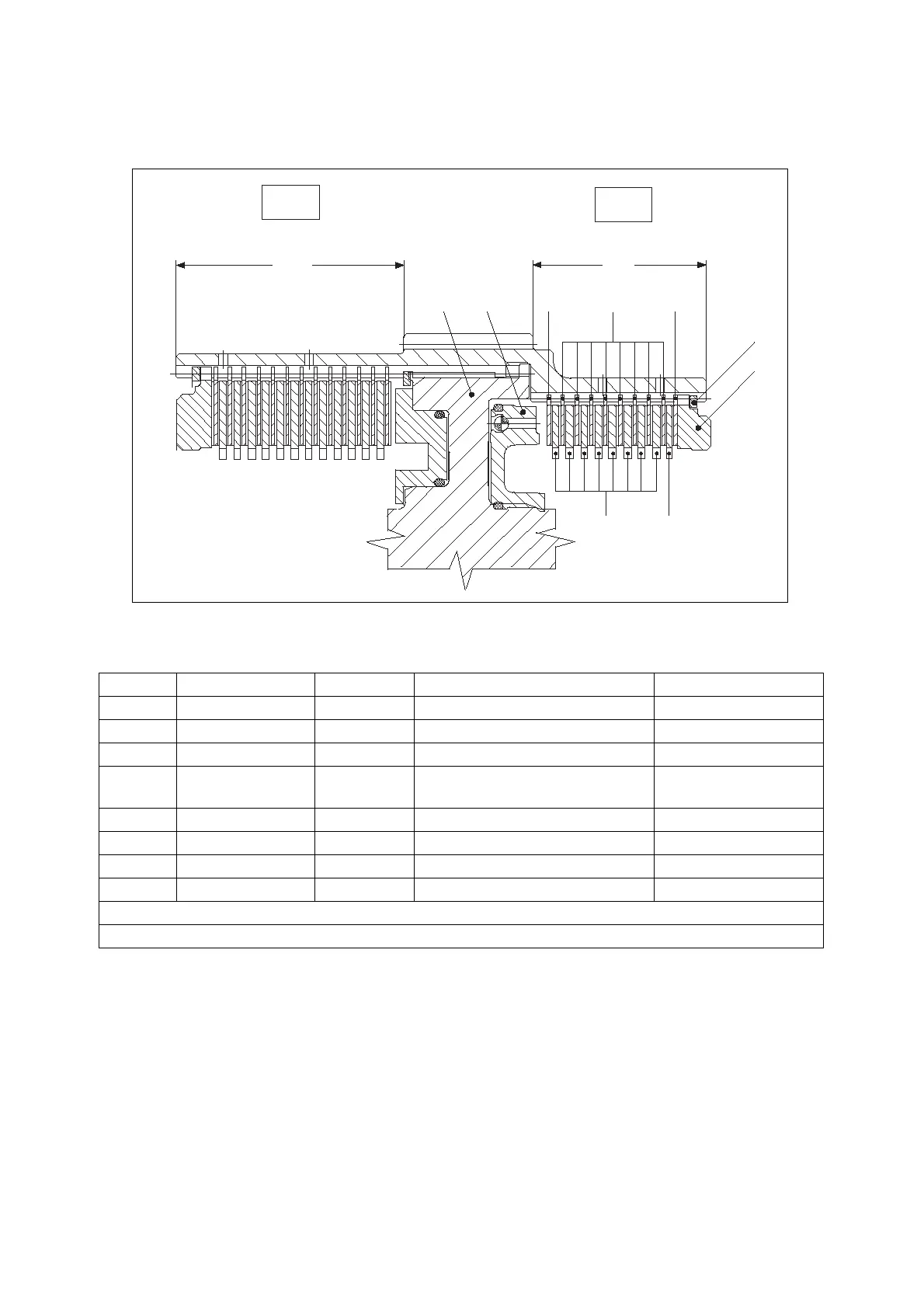

Figure 273, shows the plate stacking and the installation position of the components.
NOTE:
Install outer plates Item 3, with the uncoated side facing the piston, resp. the end shim.
The respective clutch side can be recognized by the length, resp.
∅
of the plate carrier,
see Figure 273.
KV = Dimension Y (long plate-carrier side, resp. great
∅
)
K1 = Dimension X (short plate-carrier side, resp. small
∅
)
Item Denomination Quantity s (mm) Comment
1 Plate Carrier 1
2 Piston 1
3 Outer Plate 2 1.85 (0.0728 in) One-side Coated
4 Outer Plate 8 2.5 (0.0984 in) Coated On Both
Sides
5 Inner Plate 8 3.5 (0.1378 in)
6 Inner Plate 1 2.5 - 3.5 (0.0984 - 0.1378 in) Optional
7 Snap Ring 1 2.1 - 2.5 (0.0827 - 0.0984 in) Optional
8 End Shim 1
Number of friction surfaces: 18
Plate clearance: 2.6 - 2.8 mm (0.1024 - 0.1102 in)
AHS2330S
K1
KV
K1
X
Y
1
2
3
3
4
5
6
7
8
Figure 273
