Axle (ZF AP 420R)
Complete Internal Gear Carrier

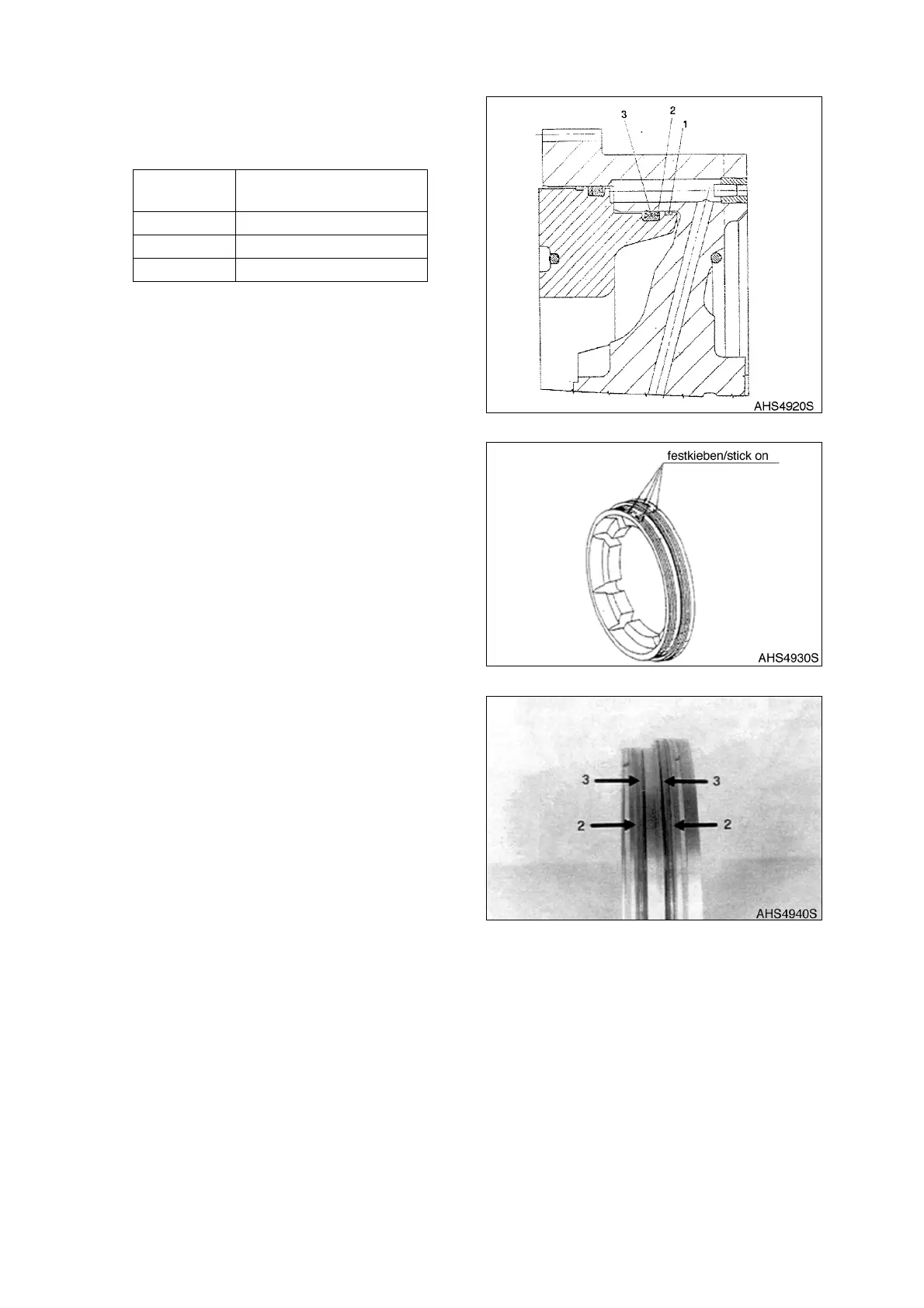

1. Figure 116, shows the installation position
of the backup sealing elements.
2. Clean the piston with mineral spirits. Stick
on support ribbons at two points using
Loctite #496.
3. The support ribbons must adhere exactly
around the whole circumference. Remove
any sticking residues.
4. Install packing rings (2) and U-section
lings (3).
NOTE:
Pay attention to the installation
position, see Figure 116.
Reference
Number
Description
1 Backup Ring
2 Packing Ring
3 U-section Ring
Figure 116
Figure 117
Figure 118
