S0607080K
Page 142
Transmission and Torque Converter
(ZF 4WG-310)
AXLE DISCONNECTION

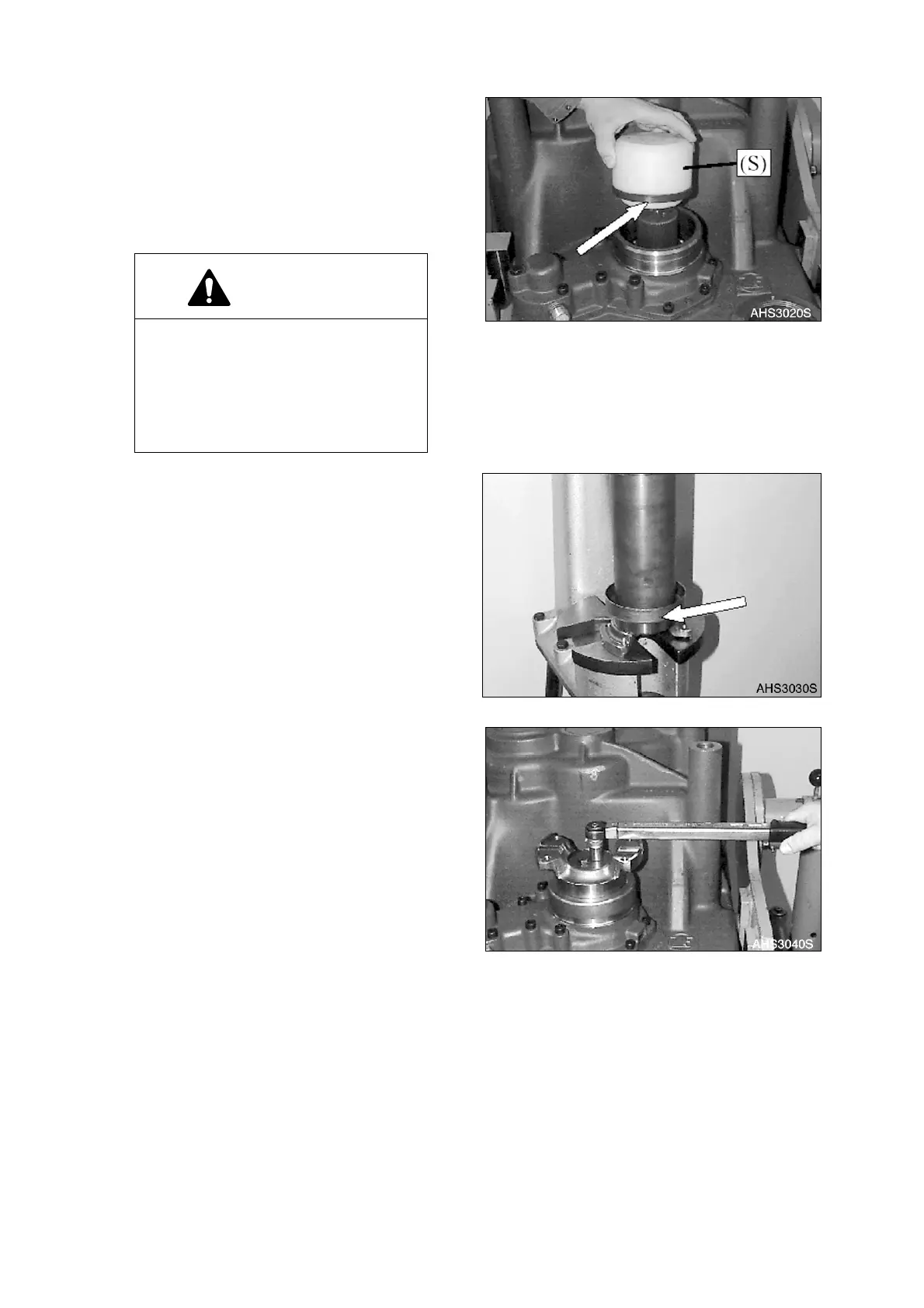

1. Install shaft seal (Arrow), with the sealing
lip facing the oil chamber.
NOTE:
At application of the prescribed
driver (S), the exact installation
position is obtained. Grease
sealing lip.
2. Press screening plate (Figure 355) against
shoulder.
3. Line up output flange.
4. Wet contact face of the disk with sealing
compound Loctite #574 and fasten output
flange with hex. head screws.
NOTE:
Torque limit (M10/8.8) 46 Nm
(34 ft lb).
CAUTION!
According to the version, different
shaft seals may be applied: Outer
diameter rubber-coated – wet with
mineral spirits.
Outer diameter metallic - wet with
sealing compound Loctite #574.
Figure 354
Figure 355
Figure 356
