Transmission and Torque Converter
(ZF 4WG-310)
4. Supercool the pump to about -80˚C
(-112˚F).
5. Install two adjusting screws and introduce
pump until contact is obtained.
NOTE: Pay attention to the radial
installation position.
6. Install O-ring (Figure 351) and mount
pump flange.
7. Fasten pump flange, resp. the pump using
hex. head screws.
NOTE: Torque limit (M12/8.8) 79 Nm
(58 ft lb).
NOTE: Wet thread of the two hex. head
screws, (Position, see Arrows)
with Loctite #243 (through
holes).
8. Insert O-ring (Figure 353) into the annular
groove and grease it. Fasten pump flange
(power take-off) with hex. head screws.
NOTE: Torque limit (M14/8.8) 125 Nm
(92 ft lb).
CAUTION!
Use protective gloves.

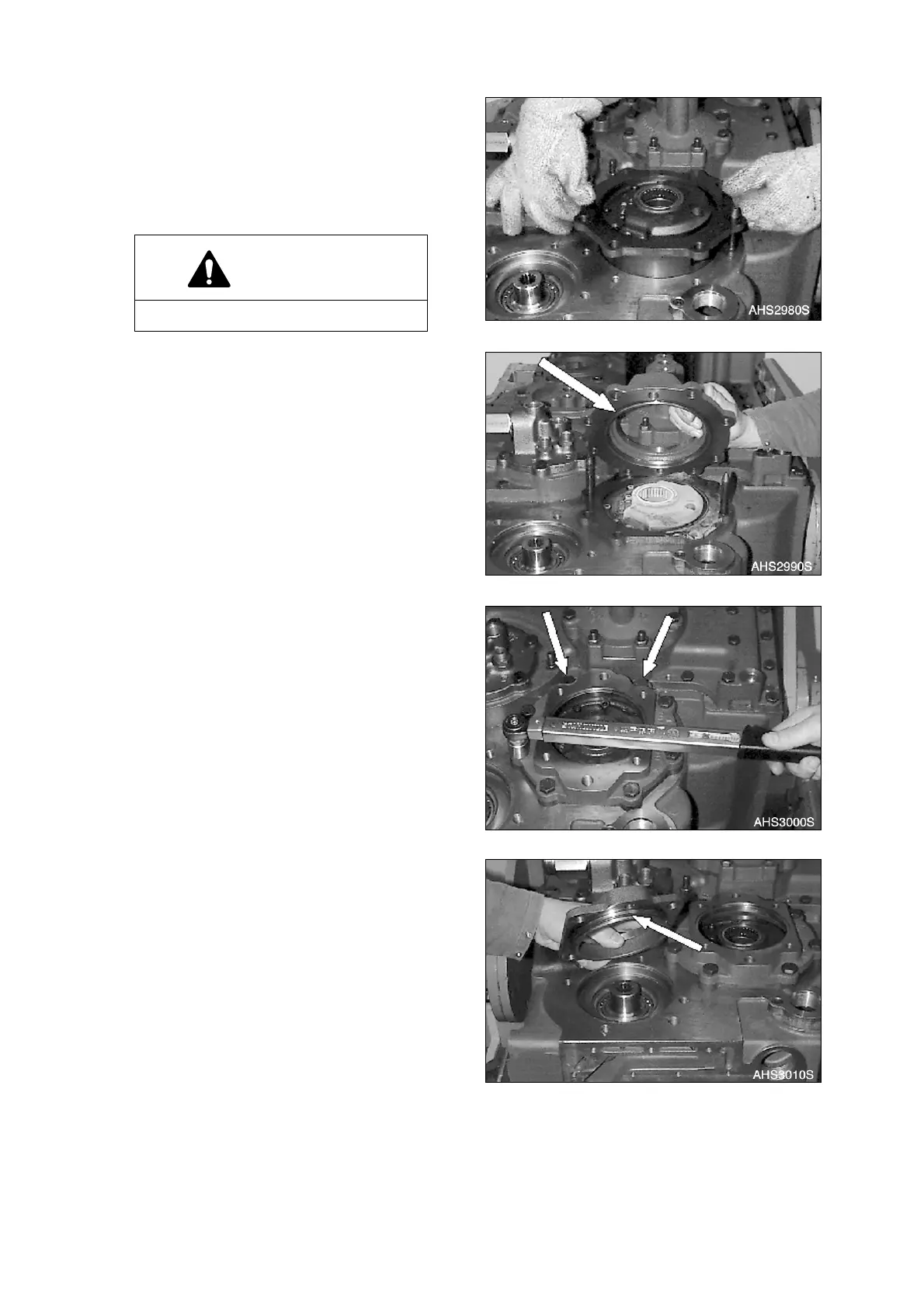

Figure 350
