Transmission and Torque Converter
(ZF 4WG-310)
PRE-ASSEMBLE AND MOUNT HOUSING
COVER
1. Mount components.
NOTE:
According to the transmission
version, differences concerning
components and their
installation positions are
possible. In this connection, see
the respective Spare Parts List.
2. Drive the roll pin (2x8 mm (0.0787 x
0.3150 in) flush-mounted in (1, Figure
308).
3. Equip screw plug with new O-ring and
install it (2, Figure 308).
4. Squeeze both snap rings (Arrow) into the
recess.
Reference
Number
Description
1 Sealing Cover (Use
Loctite #262)
2 Connecting Piece (Install
New Sealing Ring)
3 Cover Plate (Install New
Gasket)
4 Sealing Cover (Use
Loctite #262)

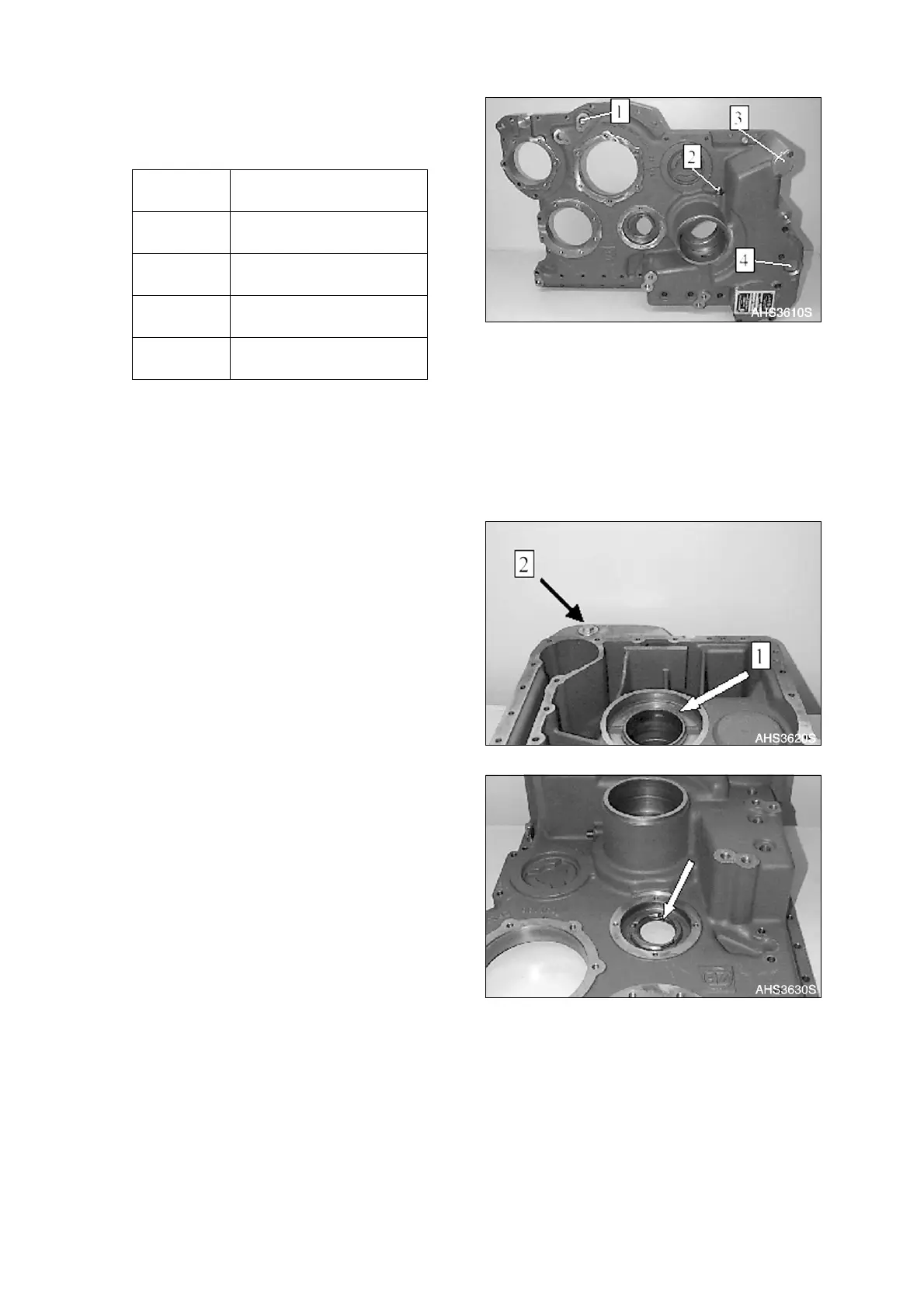

Figure 307
Figure 308
Figure 309
