Transmission and Torque Converter
(ZF 4WG-310)
5. Expand the two snap rings. Introduce ball
bearing, with the annular groove facing
upward, until the upper snap ring snaps
into the groove of the ball bearing.
6. Insert gear wheel until contact is obtained.
7. Secure gear wheel using circlip.
8. Cover mounting face with sealing
compound Loctite #574).
9. Install two adjusting screws and position
the housing cover on the gearbox housing
until contact is obtained, using lifting de-
vice.

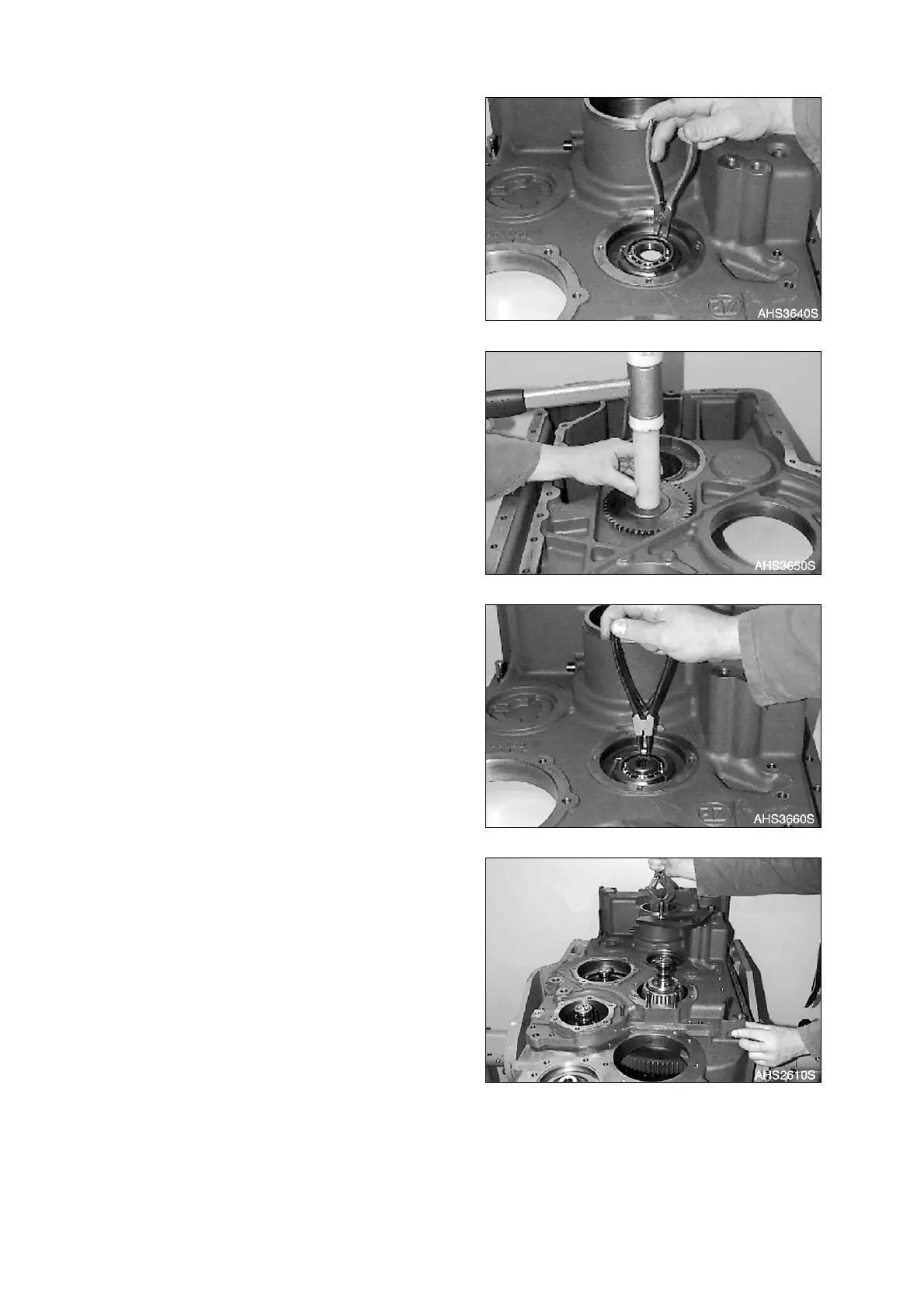

Figure 310
Figure 311
Figure 312
Figure 313
