S0607080K
Page 130
Transmission and Torque Converter
(ZF 4WG-310)

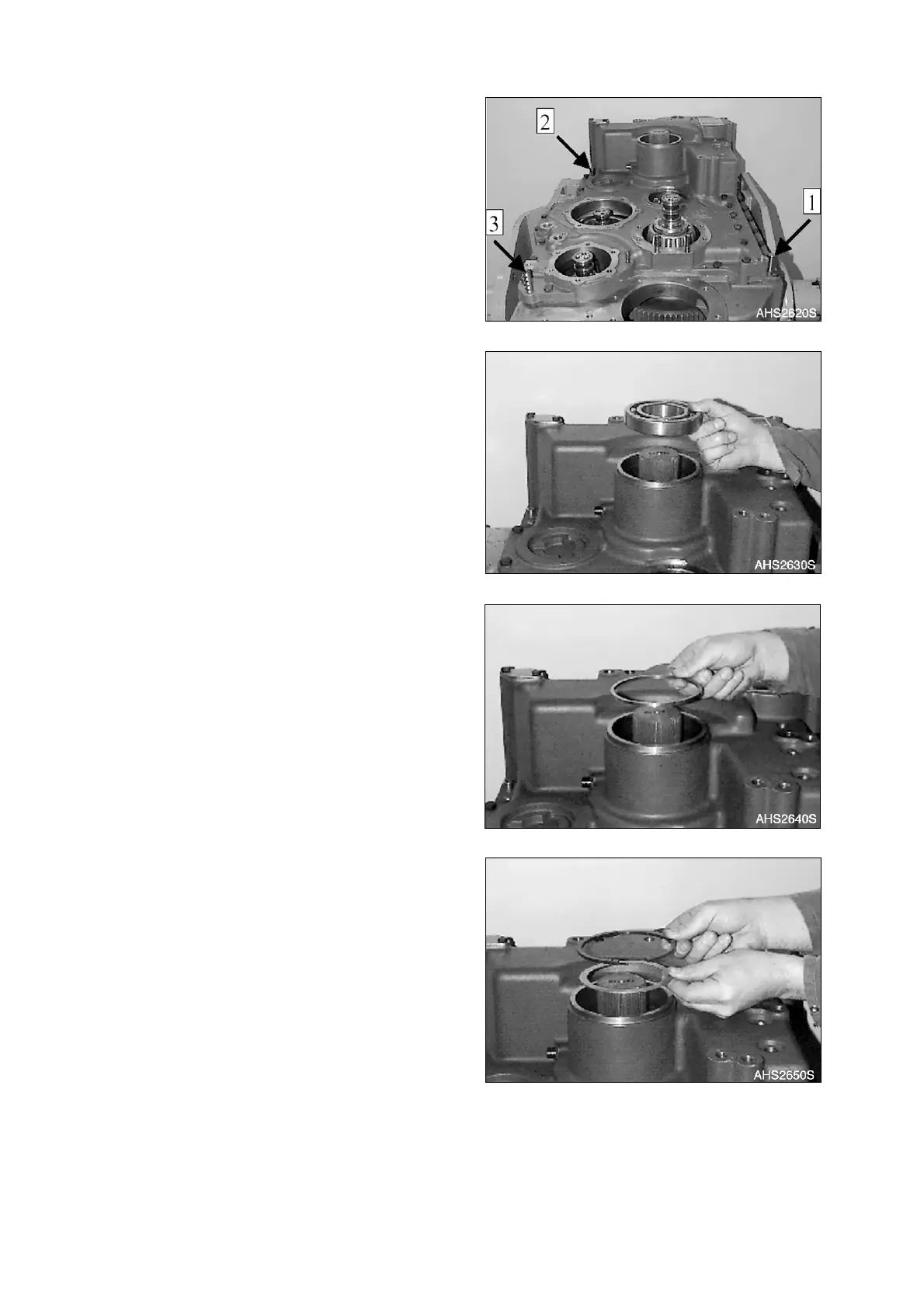

10. Insert both cylindrical pins (1 and 2, Figure
314) until contact is obtained.
11. Fasten housing cover using screw
connection.
12. Drive roll pin (3, Figure 314) flush-mounted
in.
NOTE:
Torque limit (M10/8.8) 46 Nm
(34 ft lb).
13. Insert ball bearing until contact is obtained.
NOTE:
Introduce shim s = 4.0 mm
(0.1575 in).
14. Secure ball bearing free play, using shim
and circlip.
Figure 314
Figure 315
Figure 316
Figure 317
