Daewoo Mega 500-V - General Description; Theory of Operation

S0405500
Page 3
Fuel Transfer Pump
Return to Master Table of Contents
GENERAL DESCRIPTION
THEORY OF OPERATION
Fuel pump consists of motor, pump, switch and
hose assembly.

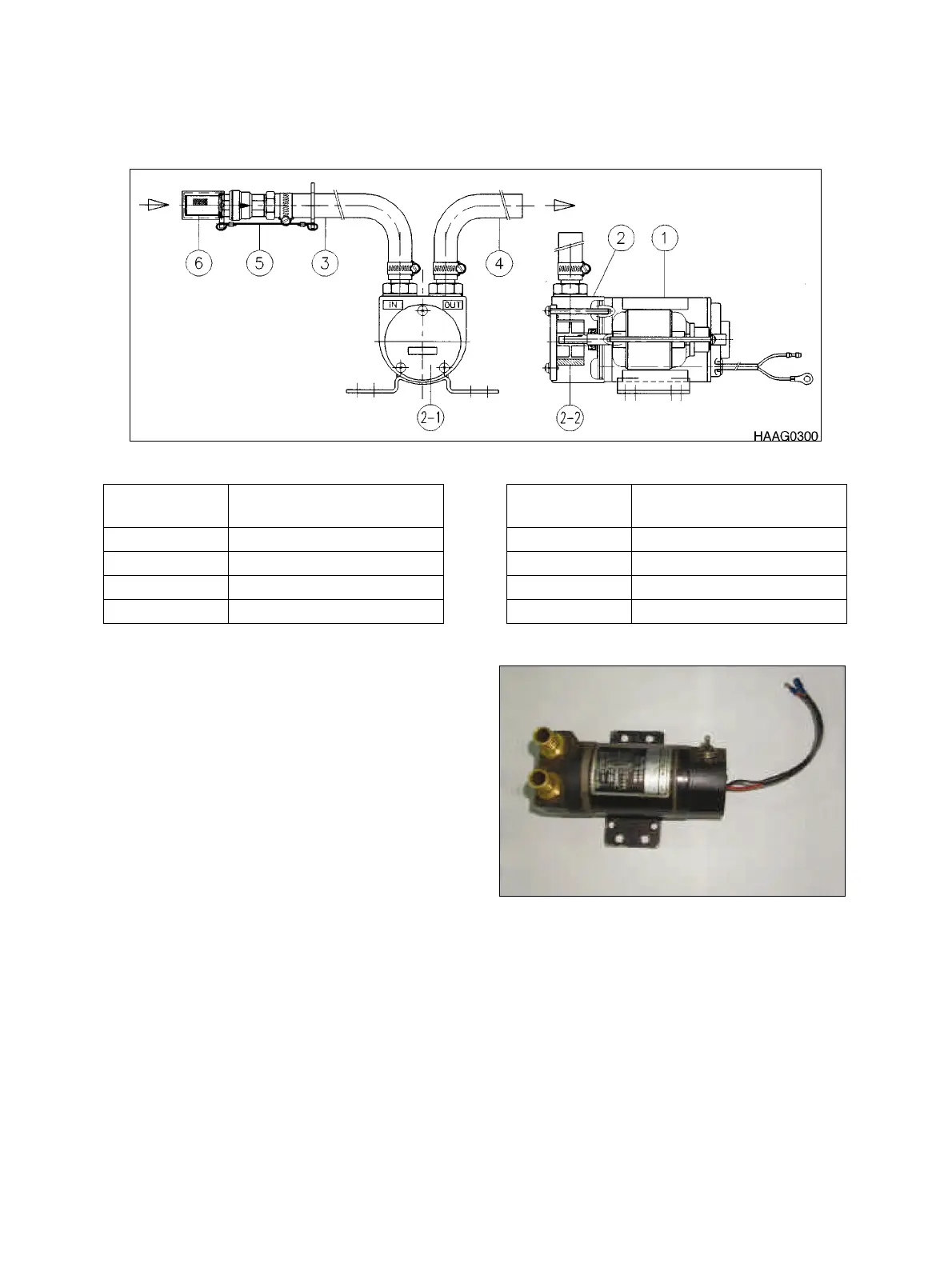

Figure 1
Reference
Number
Description
1 Motor
2 Pump
2-1 Pump Cover
2-2 Rotor and Vane
3 Inlet Hose
4 Outlet Hose
5 Check Valve
6 Strainer Cap
Reference
Number
Description
Figure 2
