Daewoo Mega 500-V - Adjustment of Drive Pinion Bearing Rolling Resistance

S0602170K
Page 94
Axle (ZF AP 420R)
ADJUSTMENT OF DRIVE PINION BEARING
ROLLING RESISTANCE
Nominal Value
1. Lay measuring ring over the drive pinion
collar.
NOTE: Configuration and description of
the measuring ring, See Figure 205.
NOTE: See “Special Tools” on page 15.
DK / CK 1.1 - 2.3 Nm
(9.7 - 20.3 in lb)
HK 1.5 - 3.0 Nm
(13.2 - 17.7 in lb)
LK / RK 3.0 - 4.5 Nm
(17.7 - 39.8 in lb)

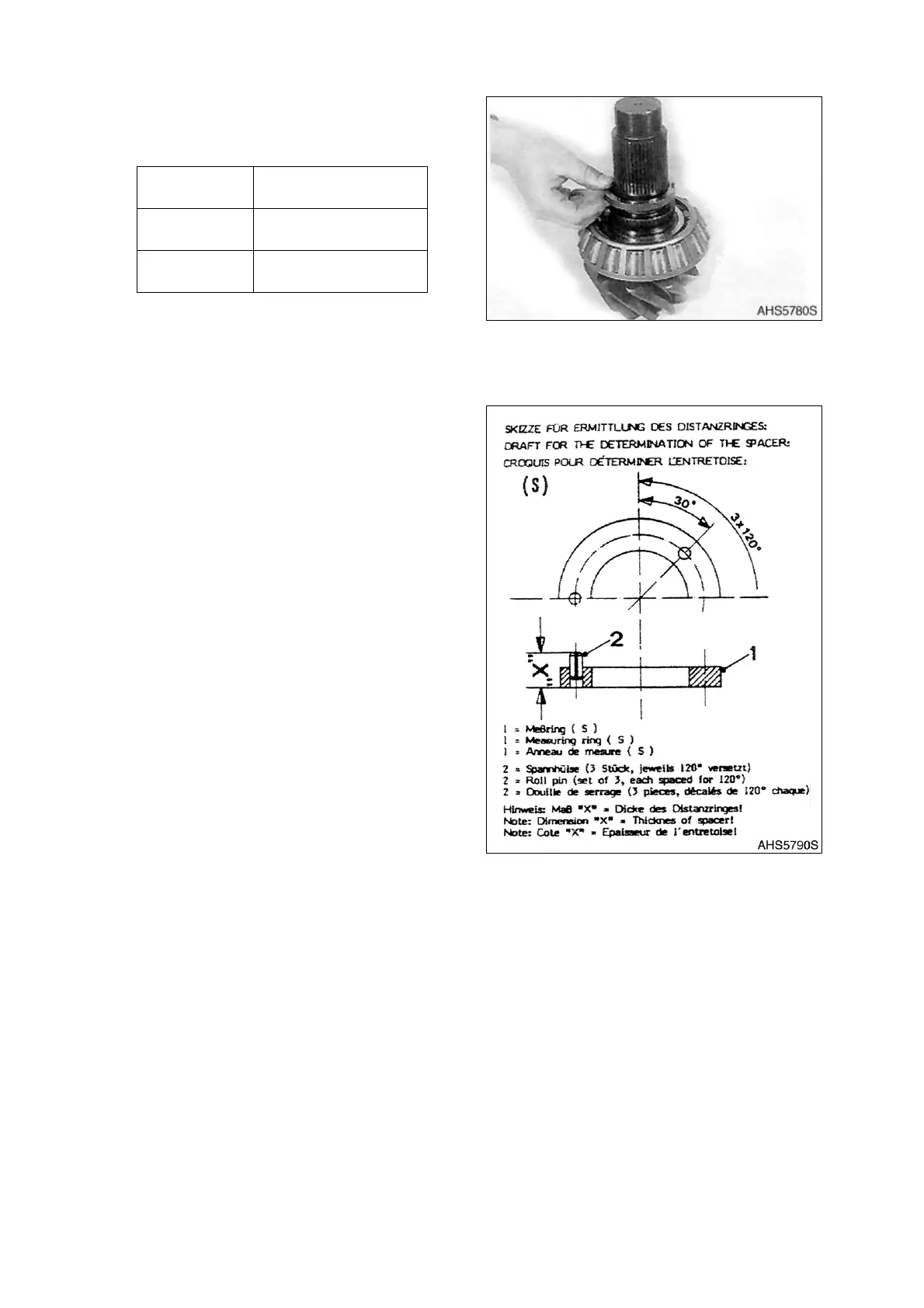

Figure 204
Figure 205
