Daewoo Mega 500-V - Output Speed Sensor; Shift Lever Switch (DW-3)

S0607080K

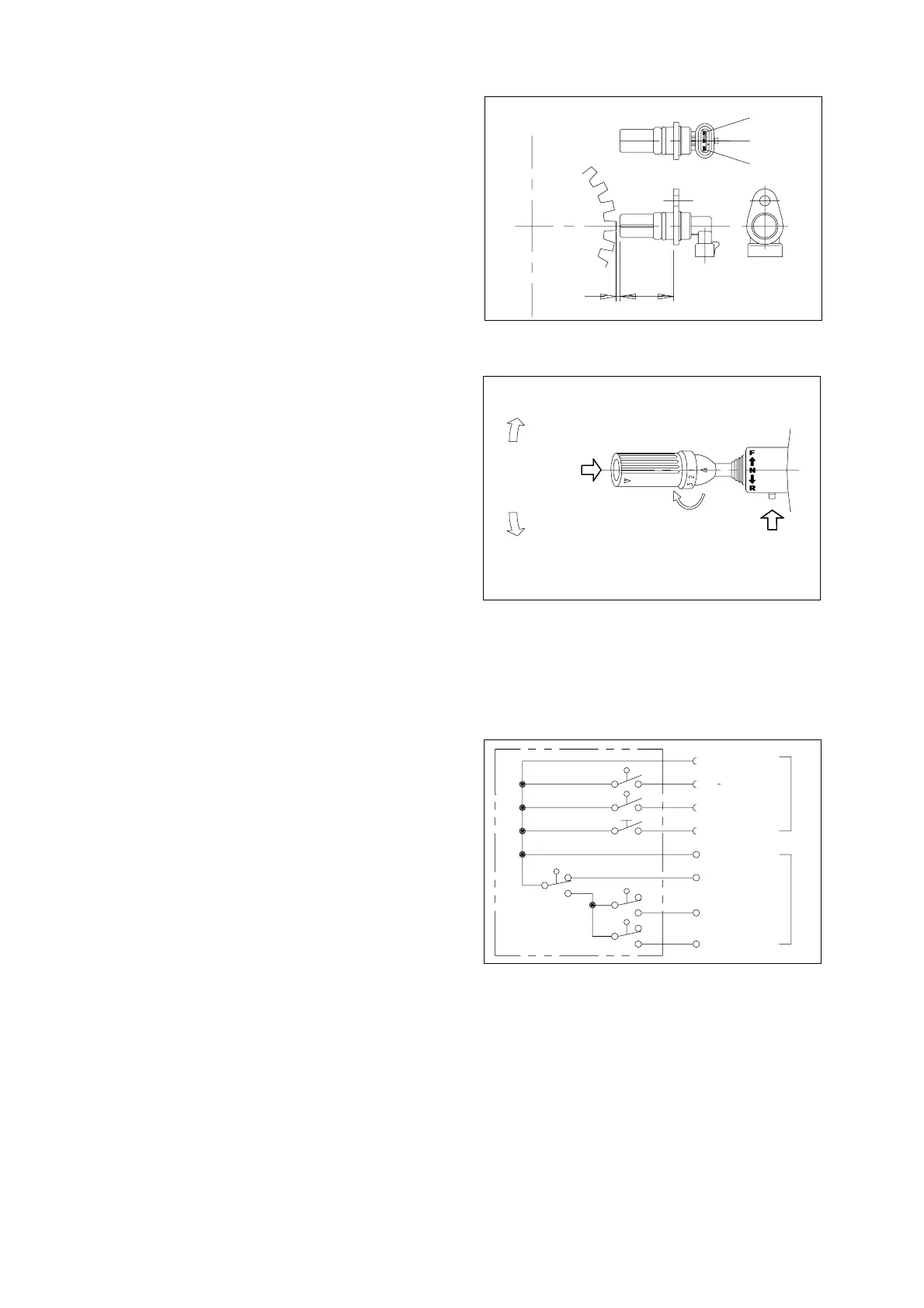

Page 18
Transmission and Torque Converter
(ZF 4WG-310)
OUTPUT SPEED SENSOR
1. Detect a revolution of gear array in
transmission output side
2. Specification
• Voltage Supply: 20 V - 32 V.
• Operation Frequency: 2 Hz - 5 KHz.
• Fasten torque (M8): 23 Nm (17 ft lb).
• Gap: 1.0 + 0.5 mm (0.0394 + 0.0197
in).
• Output: 60 Pulse/Rev.
SHIFT LEVER SWITCH (DW-3)
1. Forward, Reverse and Shift
• F: Forward
• N: Neutral
• R: Reverse
• 1,2,3,4: Shift Step
* Forward shift range: 1 - 4
* Reverse shift range: 1 - 3
2. Kick-Down (Down Shift) Switch
• KD: Kick-Down Switch
3. Lever Lock Key
• N: Neutral (The lever is not moved.)
• D: Driving (The lever is released.)
4. Switch Circuit
AJS0260L
3(+)
2(SIG)
1(-)
40
1.5
Figure 12
AJS0270L
F
N
R
KD
SHIFT SWITCH
LEVER LOCK KEY
(N/D)
Figure 13
AJS0280L
B
G
L
V
R
Gr
Y
P
C AD5
(R)
B AD4
(F)
D AD6
(N)
A ED1
(+/VP)
D AD7
(KD)
C AD1
(B1)
B AD2
(B2)
A AD3
(B3)
1
2
12
1
2
2
2
2
1
1
1
3
3
3
X1
X2
Figure 14
