Steering and Brake Pump (Denison T67DB Series)
SPECIAL TOOLS
A shaft seal driver (Figure 3) is the only special
tool required for overhaul.
NOTE:
In addition to the above tool, an
arbor press may be required to
service the shaft bearing.
Model
Dimension
ABCDE
T67DB -
031 - B08
71.933 ±0.025 mm
(2.832 ±0.001 in)
50.216 ±0.025 mm
(1.977 ±0.001 in)
44.653 ±0.025 mm
(1.758 ±0.001 in)
42.850 ±0.025 mm
(1.687 ±0.001 in)
6.350 mm
(0.250 in)

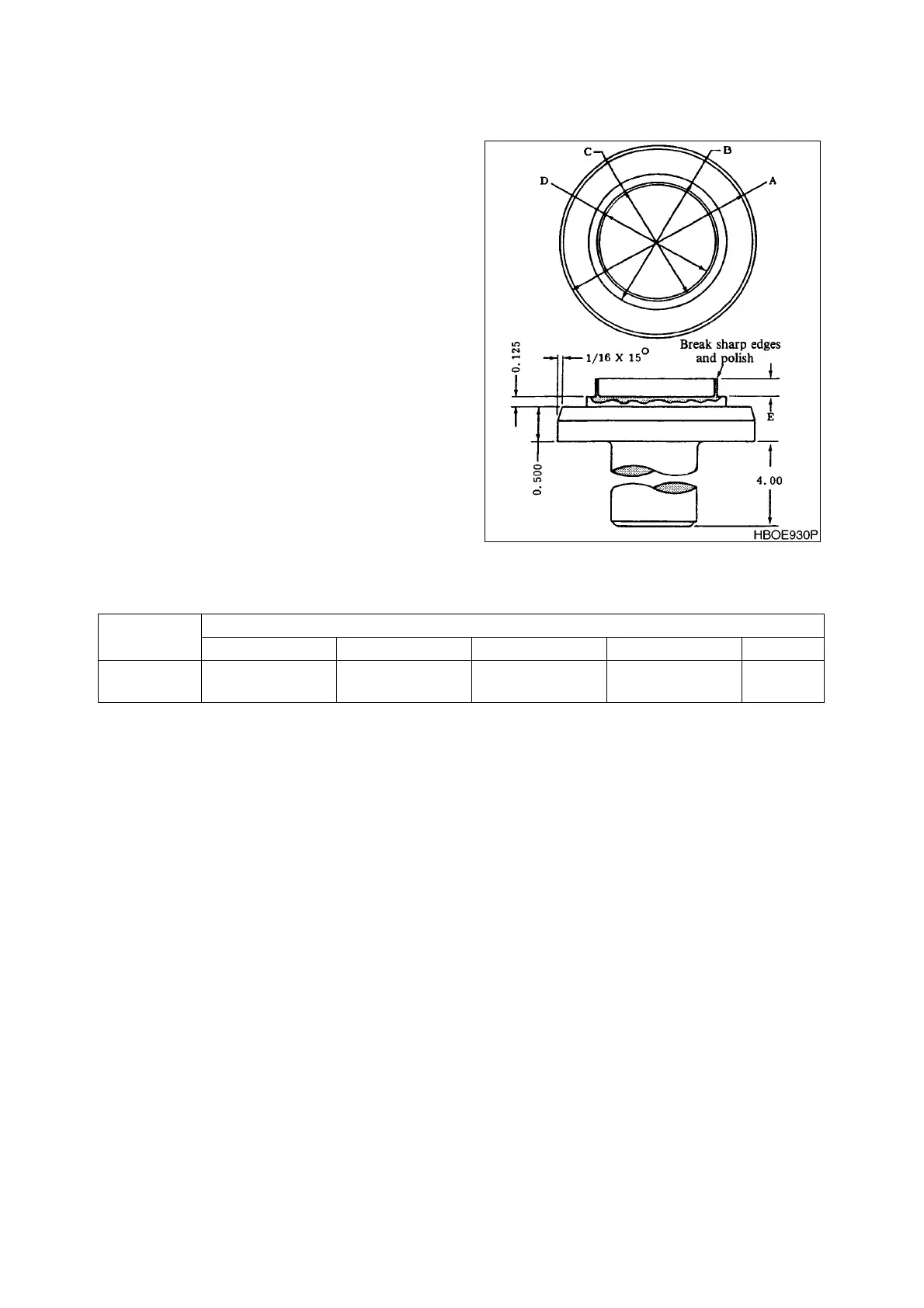

Figure 3 SHAFT SEAL DRIVER (DIMENSIONS
ARE IN INCHES.)
