Electrical System
Return to Master Table of Contents
MONITORING SYSTEM
The monitoring system displays the various data and warning signals onto the instrument panel by
processing the information gathered from the various sensors throughout the equipment.
AHS0090L

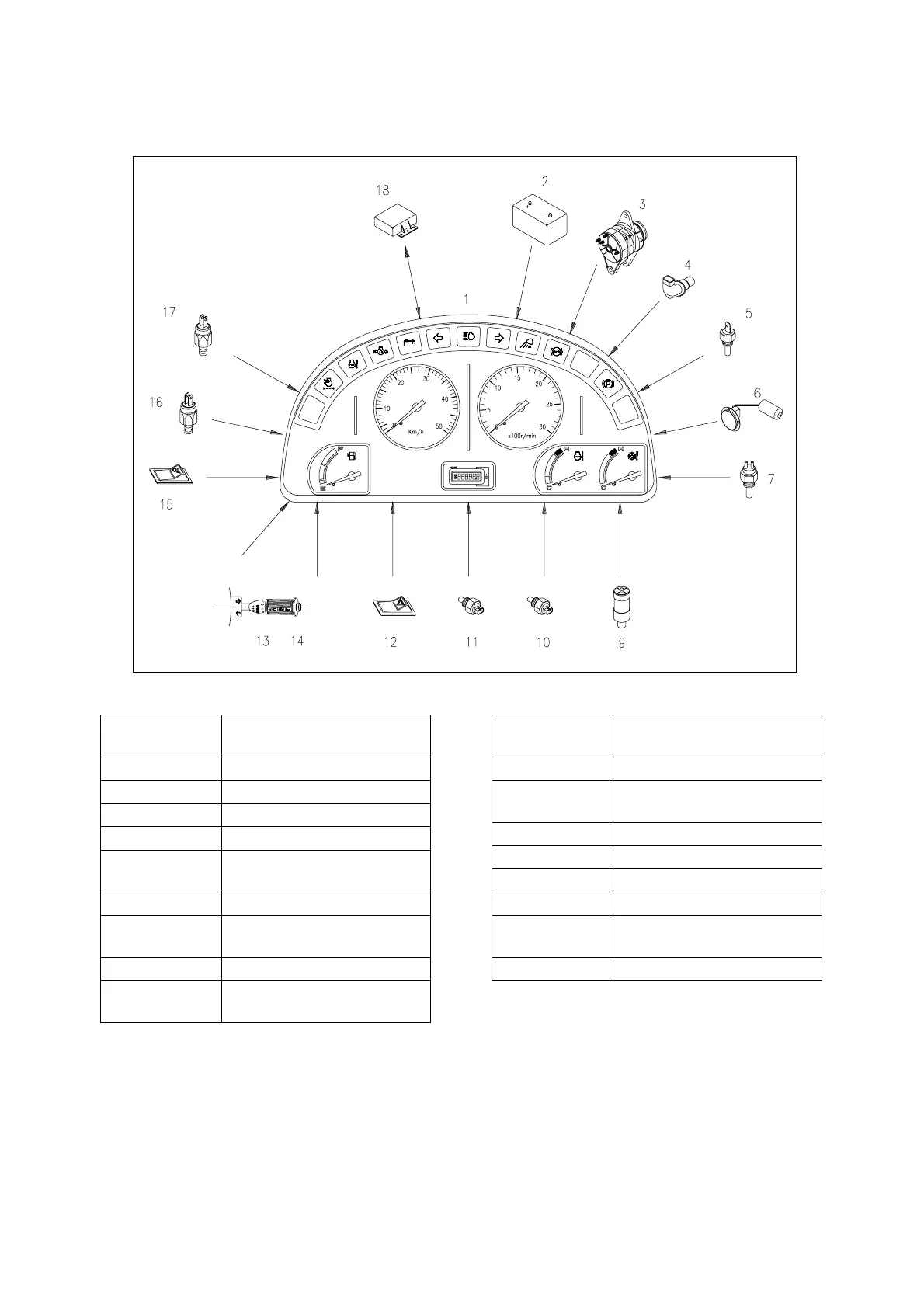

Figure 10
Reference
Number
Description
1 Instrument Panel
2 Battery
3 Alternator
4 Speed Sensor
5 Coolant Temperature
Sensor
6 Fuel Sensor
7 Transmission Oil
Temperature Sensor
9 Air Cleaner Indicator
10 Engine Coolant
Temperature Switch
11 Engine Oil Pressure Switch
12 Hazard Warning Light
Switch
13 Turn Signal Light Switch
14 High Beam Switch
15 Work Light Switch
16 Brake Oil Pressure Switch
17 Parking Brake Pressure
Switch
18 Control Unit
Reference
Number
Description
