Daewoo Mega 500-V - Install Countershaft Gear and Multidisk Clutches

S0607080K
Page 123
Transmission and Torque Converter
(ZF 4WG-310)
INSTALL COUNTERSHAFT GEAR AND
MULTIDISK CLUTCHES
1. Adjust axial play of the countershaft gear
bearing 0.0 - 0.05 mm (0.0 - 0.0020 in)
(Figure 291 - Example D2).

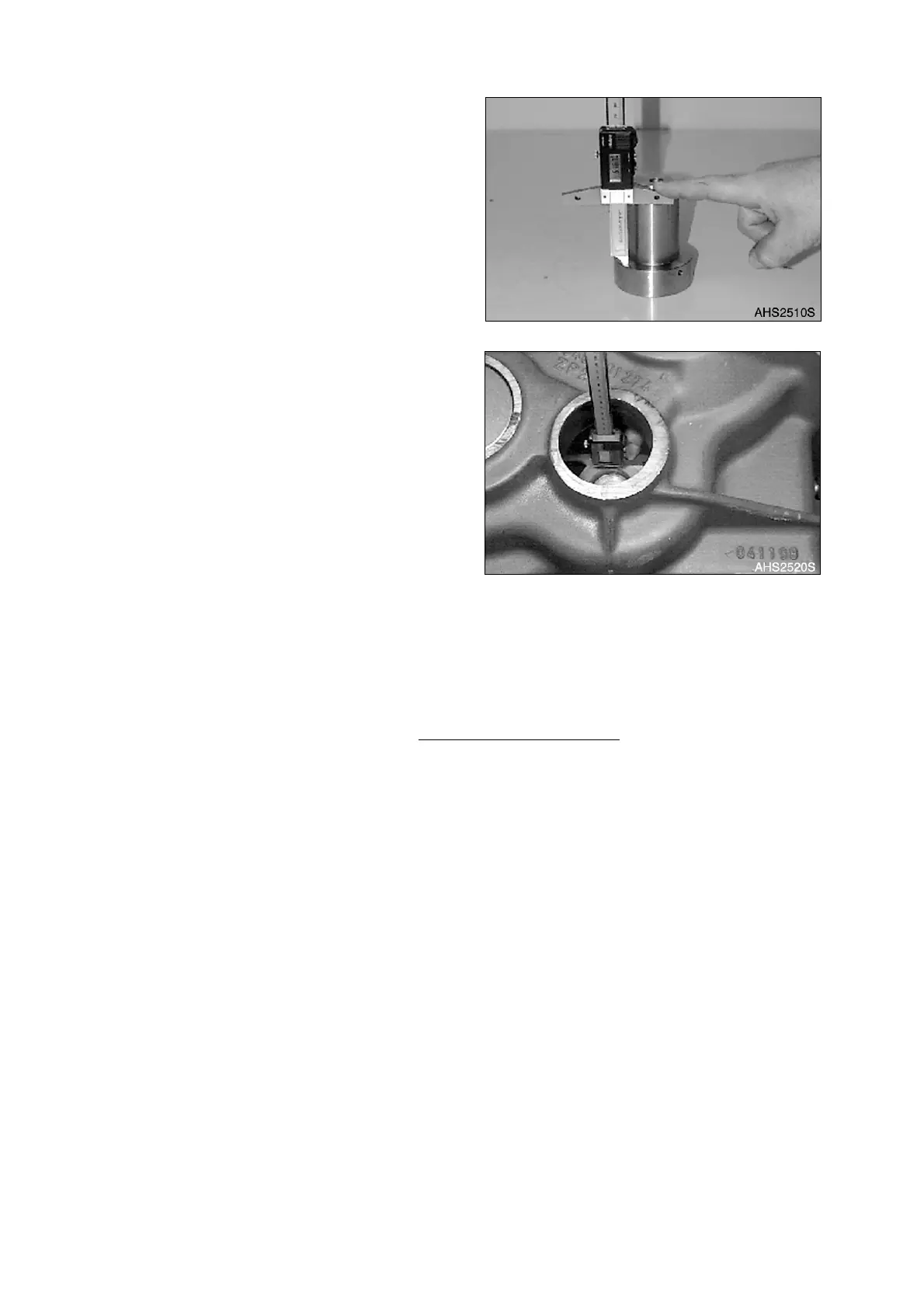

2. Determine Dimension I (shaft dimension).
NOTE: Dimension I e.g. 61.57 mm
(2.4240 in).
3. Measure Dimension II (housing
dimension) from the locating face of the
inner bearing race to the locating face of
the axle.
NOTE: Dimension II e.g. 0.52 mm
(0.0205 in).
EXAMPLE D1:
Dimension I e.g. 61.57 mm (2.4240 in)
Dimension II e.g. - 0.52 mm (0.0205 in)
Gives Dimension X 61.05 mm (2.4035 in)
Required Axial Play e.g. - 0.03 mm (0.0012 in)
Gives Installation Dimension Y e.g. = 61.02 mm (2.4024 in)
Figure 291
Figure 292
