S0607080K
Page 124
Transmission and Torque Converter
(ZF 4WG-310)

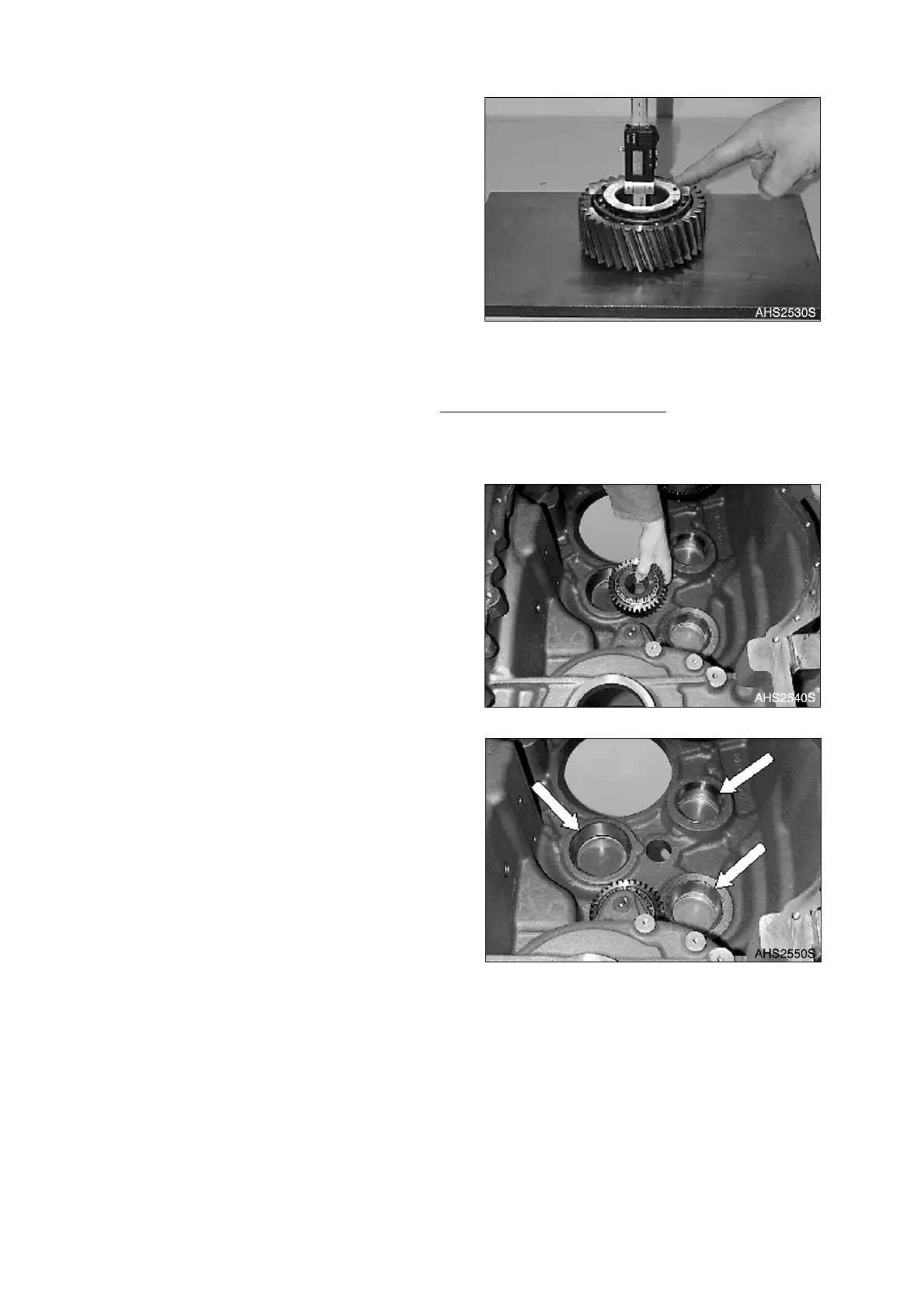

4. Install both inner bearing races. Lay pre-
assembled countershaft gear upon the
surface plate and determine Dimension III
(bearing dimension).
NOTE: Dimension III e.g. 59.52 mm
(2.3433 in).
EXAMPLE D2:
NOTE: The assembly of the shim and
of the countershaft axle can be
performed only after the
installation of the clutches
(page 139).
5. Position countershaft gear (along with
inner bearing races), see Figure 294.
6. Insert outer bearing races KV/K1, KR/K2
and K3/K4 into the housing bores until
contact is obtained, see Arrows.
Dimension Y (installation dimension) 61.02 mm (2.4024 in)
Dimension III (bearing dimension) - 59.52 mm (2.3433 in)
Gives Shim e.g. s = 1.50 mm (0.0591 in)
Figure 293
Figure 294
Figure 295
