S0607080K
Page 125
Transmission and Torque Converter
(ZF 4WG-310)

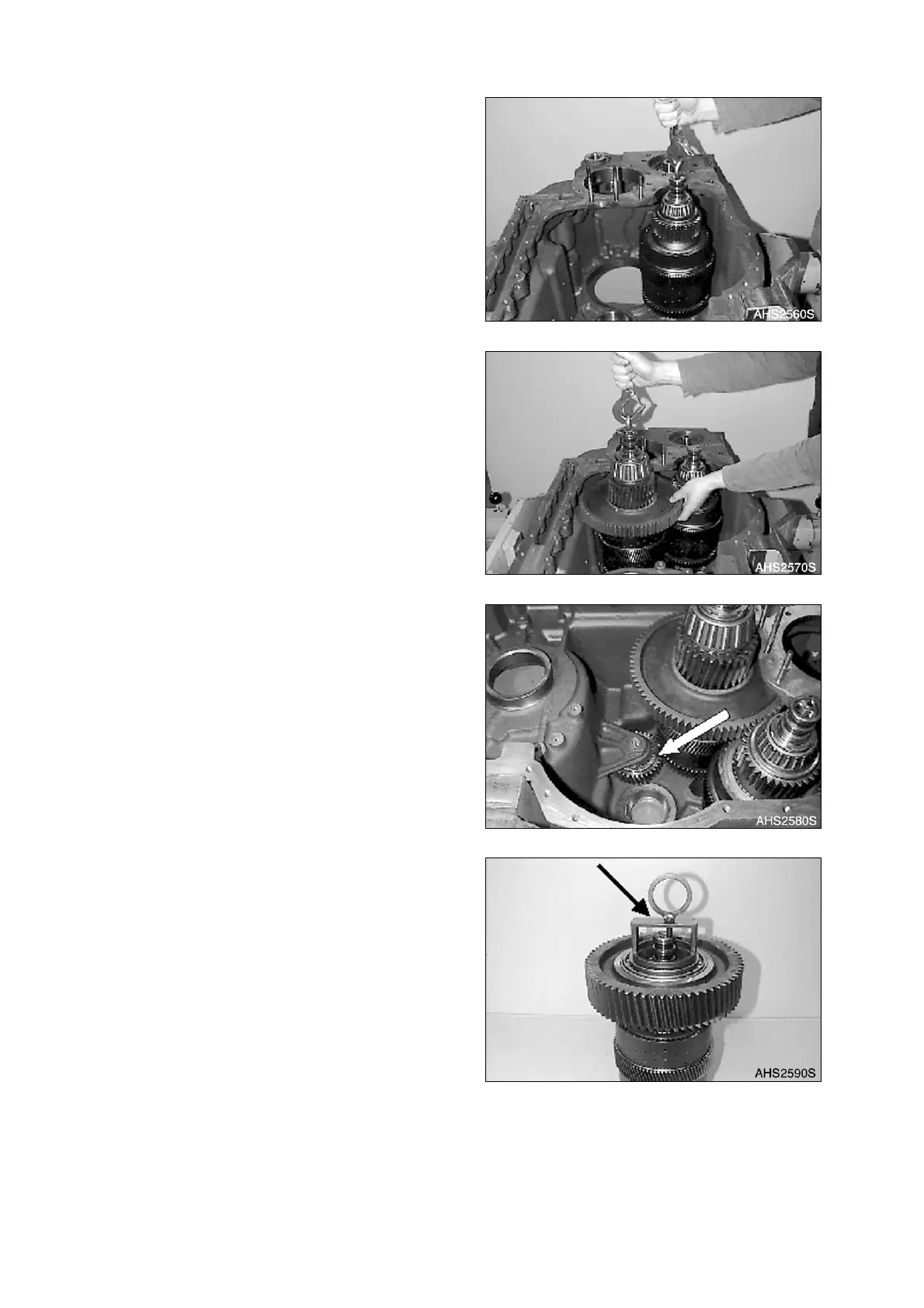

7. Position clutch KV/K1, using lifting device.
8. Position clutch KR/K2.
9. Check installation position of the
countershaft gear (Arrow) once more and
correct if necessary.
10. Locate the spur gear K3 using Special
device and eye bolt (Arrow) axially.
NOTE:
The securing of spur gear
prevents the slipping out of the
plates during the lifting into
position of the clutch.
Figure 296
Figure 297
Figure 298
Figure 299
