Transmission and Torque Converter
(ZF 4WG-310)
REASSEMBLE MULTIDISK CLUTCH KR/K2

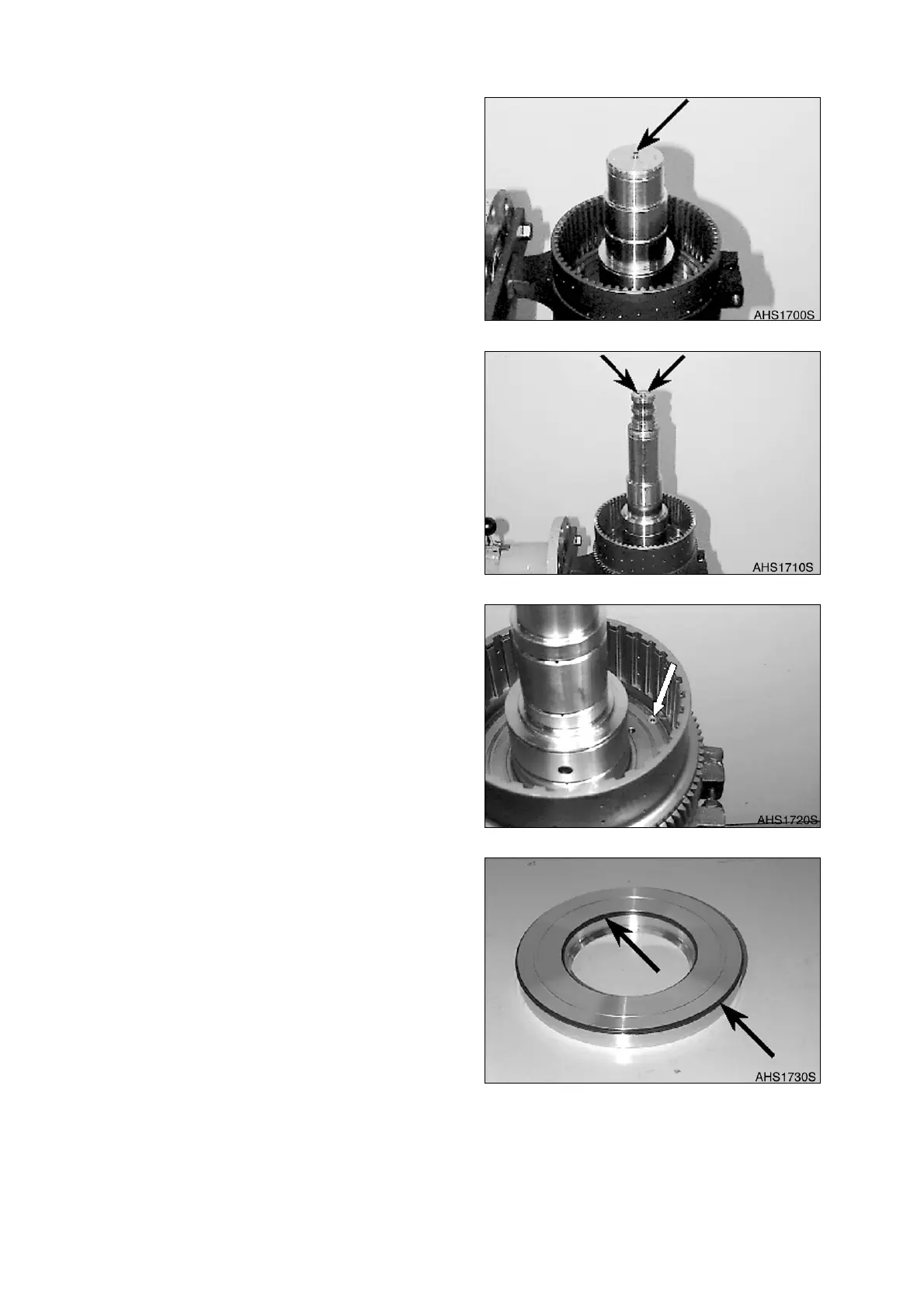

1. Lift plate carrier, with the KR-side facing
downward, into the clamping ring and
secure it.
2. Tilt plate carrier 180˚.
3. Insert both roll pins (6x24 and 3.5x24)
flush-mounted into the spur gear-side bore
(Figure 210) of the plate carrier.
4. Tilt plate carrier 180˚.
5. Wet both set screws (Figure 211) with
Loctite #262 and install them.
6. Insert purge valve (Figure 212) flush-
mounted, with the chamfer facing
downward.
7. Lay both O-rings scrollfree into the ring
grooves of the piston, see Arrows.
Figure 210
Figure 211
Figure 212
Figure 213
