S0602170K
Page 61
Axle (ZF AP 420R)
HUB

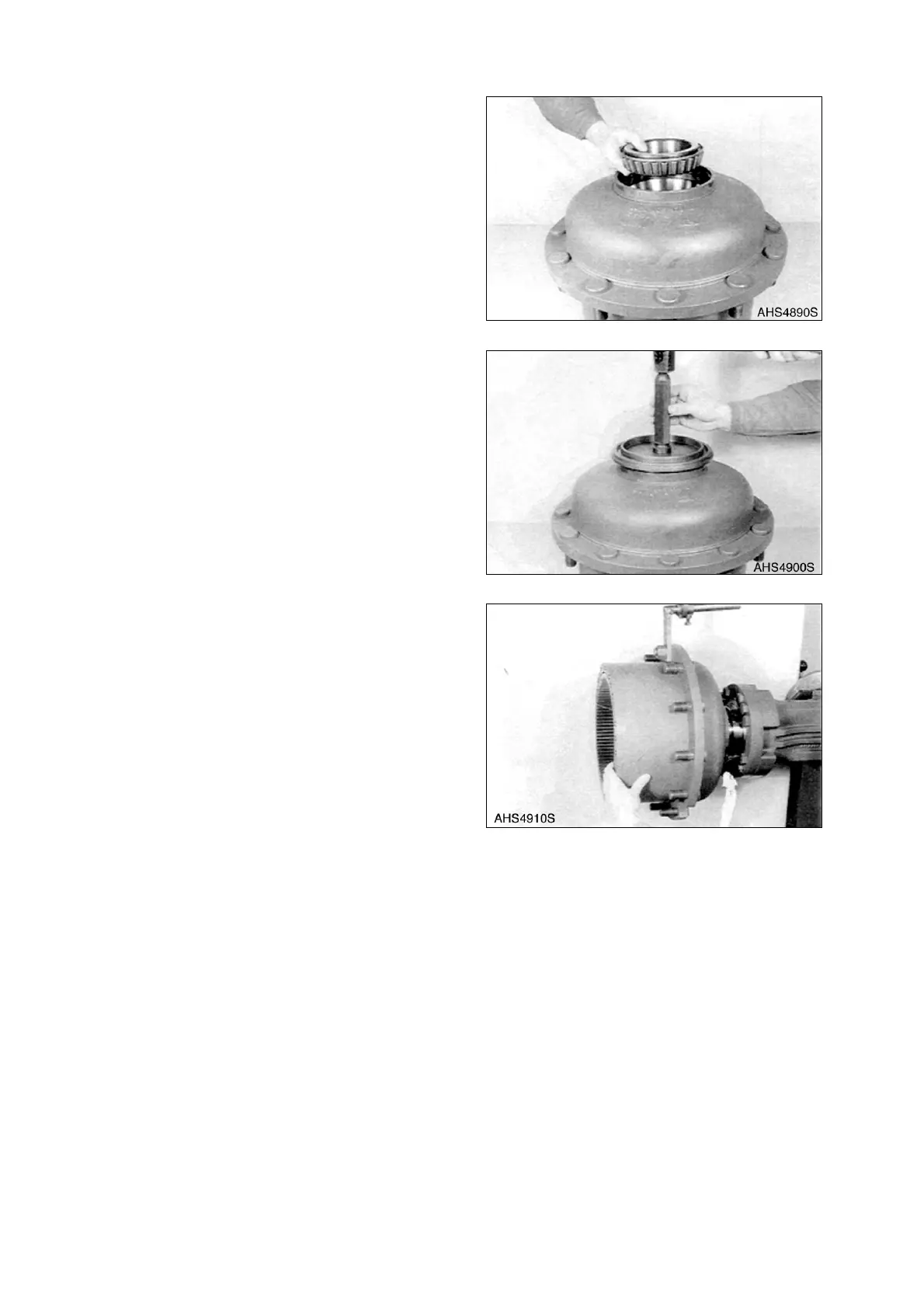

1. Insert inner bearing race into the hub.
2. Cover outside of shaft seal with Loctite
#578 and drive it in.
NOTE:
Installation depth 7.0 - 7.8 mm
(0.2756 - 0.3071 in) is
determined by the special tool.
If necessary, (according to the
Version) heat cover plate before
assemble the hub and install it.
NOTE:
See “Special Tools” on page 15.
3. Carefully guide hub over the hub carrier
end against shoulder.
NOTE:
See “Special Tools” on page 15.
Figure 113
Figure 114
Figure 115
