Axle (ZF AP 420R)
9. Insert 2nd circlip and engage return
springs.
NOTE:
Pay attention to the radial
installation position of the
circlip.
NOTE:
See “Special Tools” on page 15.
10. Insert O-ring into the groove of the internal
gear carrier and grease it slightly.
11. Mark the location of the oil supply holes on
the face, (see Arrow).
INTERNAL GEAR CARRIER
1. Screw installer (S) over the threads of the
hub carrier.
2. Assemble the spacer determined in Figure
109.
NOTE:
See “Special Tools” on page 15.
3. Guide O-ring over the hub carrier and
insert it into the groove.
4. Mark the radial location of the oil supply
bores on the face (see Arrows).

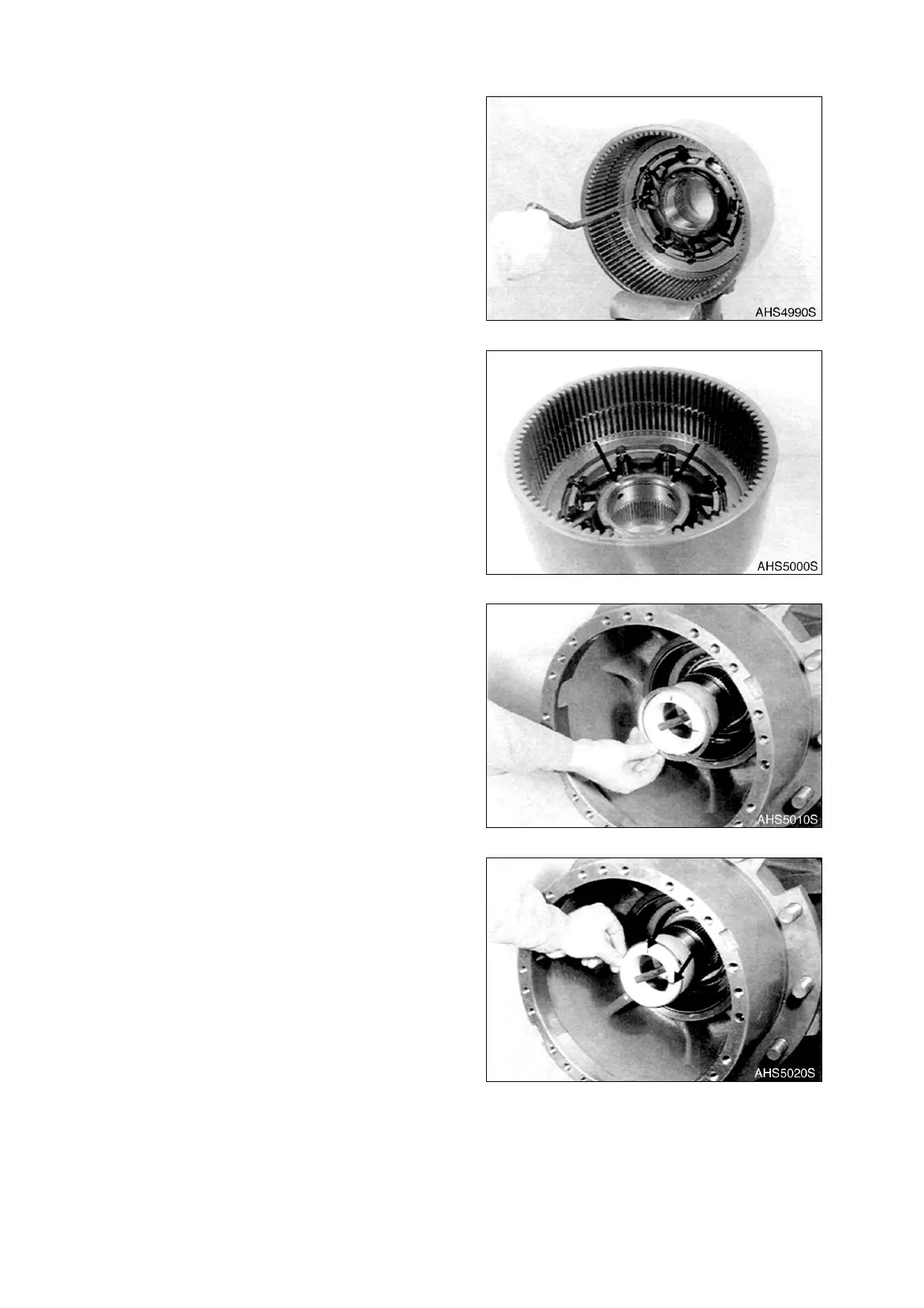

Figure 123
Figure 124
Figure 125
Figure 126
