S0607080K
Page 140
Transmission and Torque Converter
(ZF 4WG-310)
8. Drive the sealing covers (Figure 346) in,
with the concave side showing downward,
flush-mounted to the housing face.
NOTE:
Wet contact face with Loctite
#262.
HYDRAULIC PUMP
1. Press needle sleeve (Figure 347) against
shoulder, with the reinforced shell facing
the pressing-in tool.
2. Insert disk s = 1.3 mm (0.0512 in) and
position outer bearing race against
shoulder.
3. Install and grease O-ring (Figure 349).

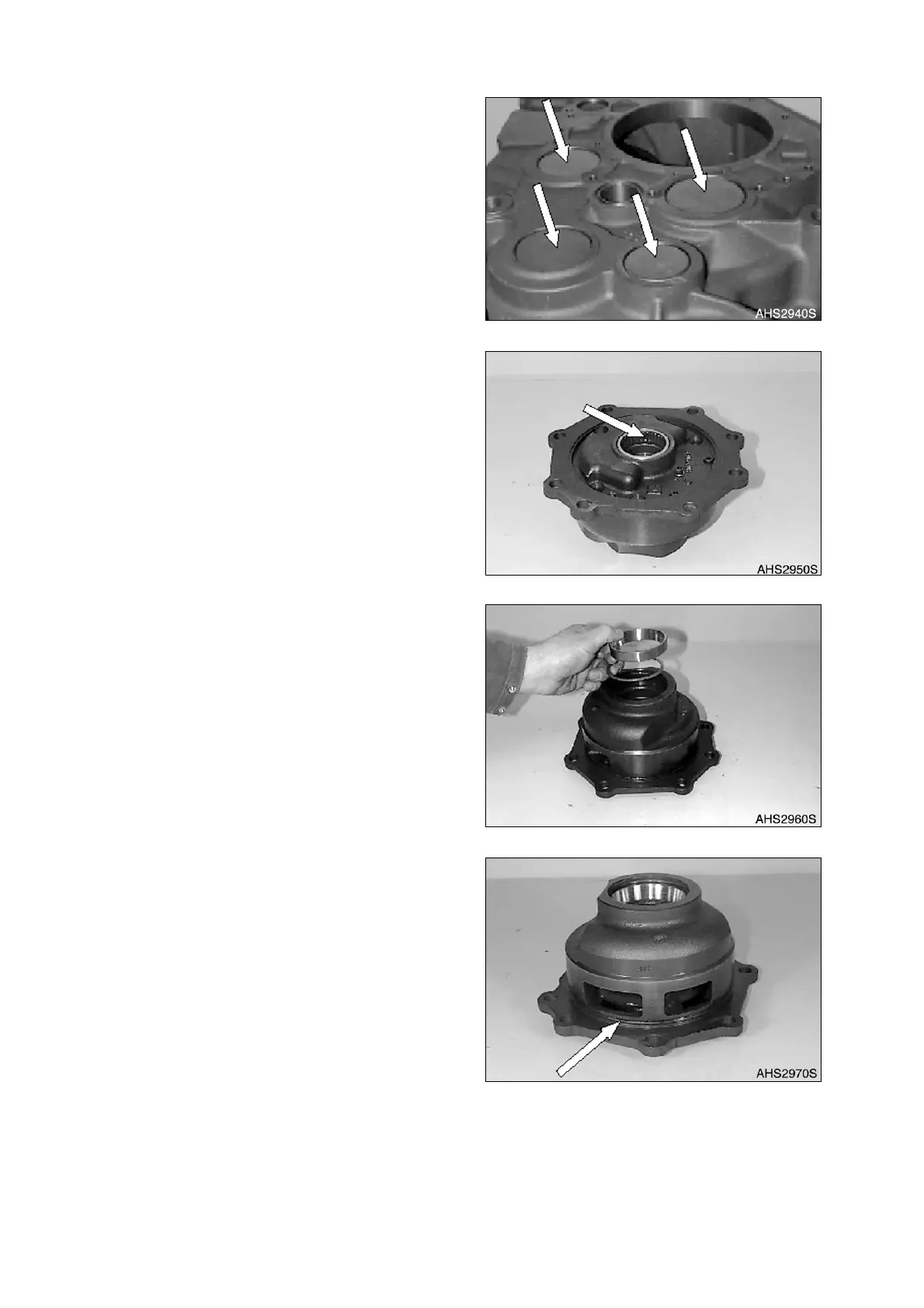

Figure 346
Figure 347
Figure 348
Figure 349
