Transmission and Torque Converter
(ZF 4WG-310)
15. Remove adjusting rings.
16. Squeeze snap ring out.
17. Disassemble end shim and plate pack KR.
18. Pull tapered roller bearing from plate
carrier.
19. Disassemble both pistons, as described at
Figure 141and Figure 142.
MULTIDISK CLUTCH KV/K1
1. Fasten clutch using clamping ring on the
assembly car.
2. Loosen slotted nut (Figure 156).
CAUTION!
Slotted nut is secured with Loctite.
To prevent a damage of the thread,
heat the slotted nut before loosen it
(about 120˚C (248˚F)).

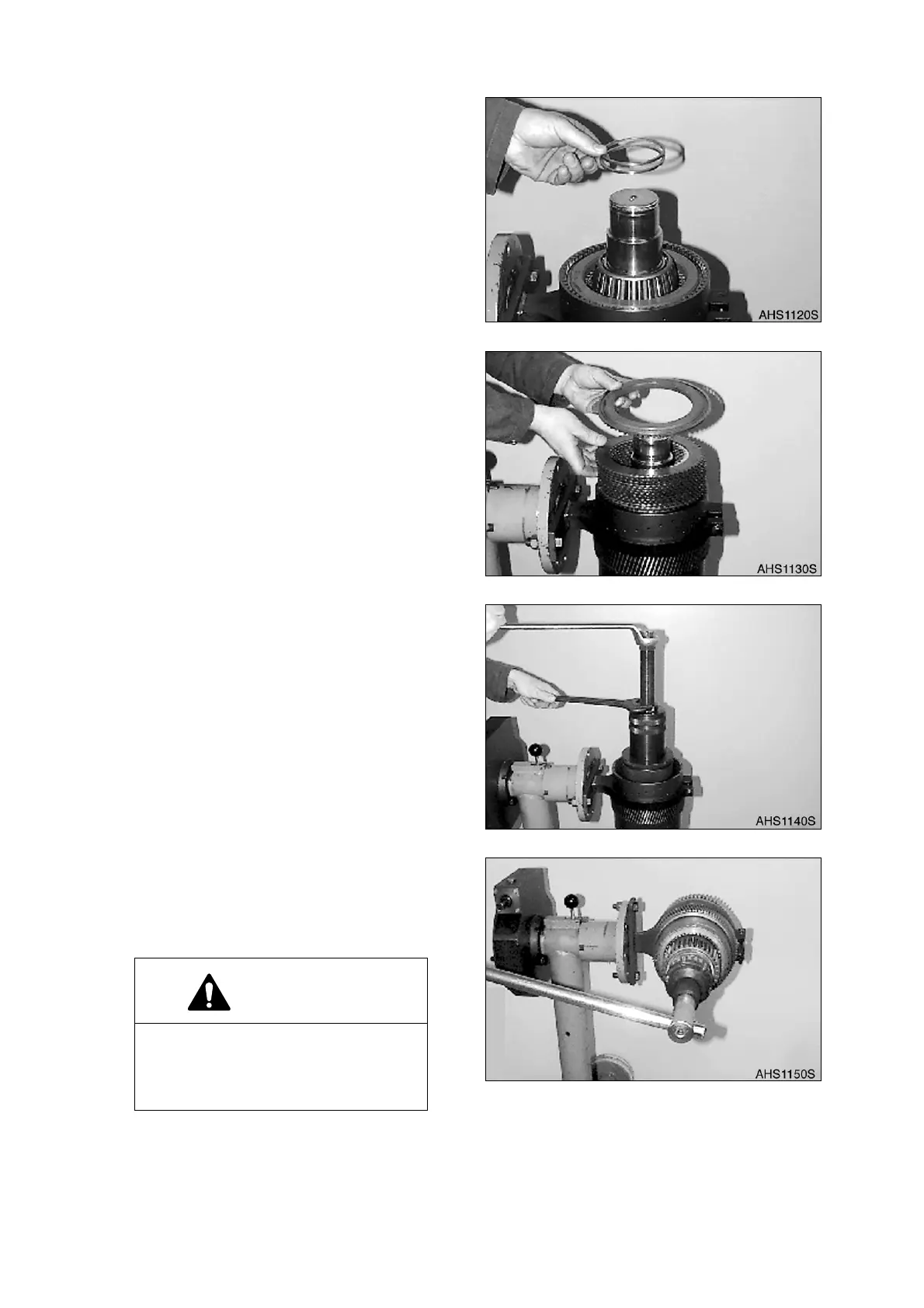

Figure 153
Figure 154
Figure 155
Figure 156
