Transmission and Torque Converter
(ZF 4WG-310)
3. Pull tapered roller bearing from plate
carrier.
4. Remove disk.
5. Pull spur gear K1 from plate carrier.
6. Figure 160, shows the spur gear bearing
K1.
7. The bearing (1) is only as sub-assembly
available.
CAUTION!
If the disassembly of the plate pack-
side ball bearing (Arrow, resp. Figure
162 and Figure 163) is necessary, the
complete bearing (1) must be
replaced.

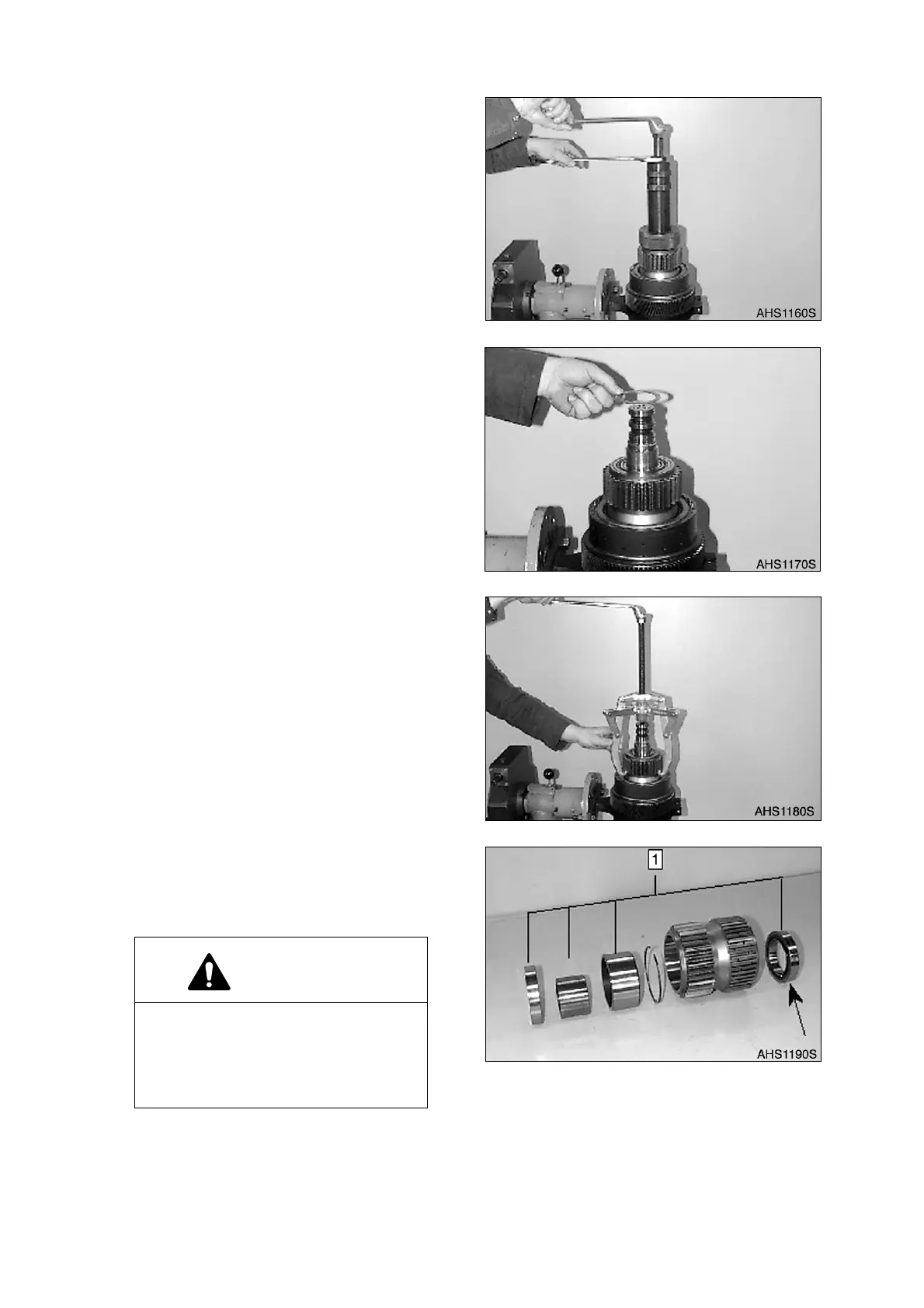

Figure 157
Figure 158
Figure 159
Figure 160
